OPERATION INSTRUMENTS
- 7 -
ENGLISH

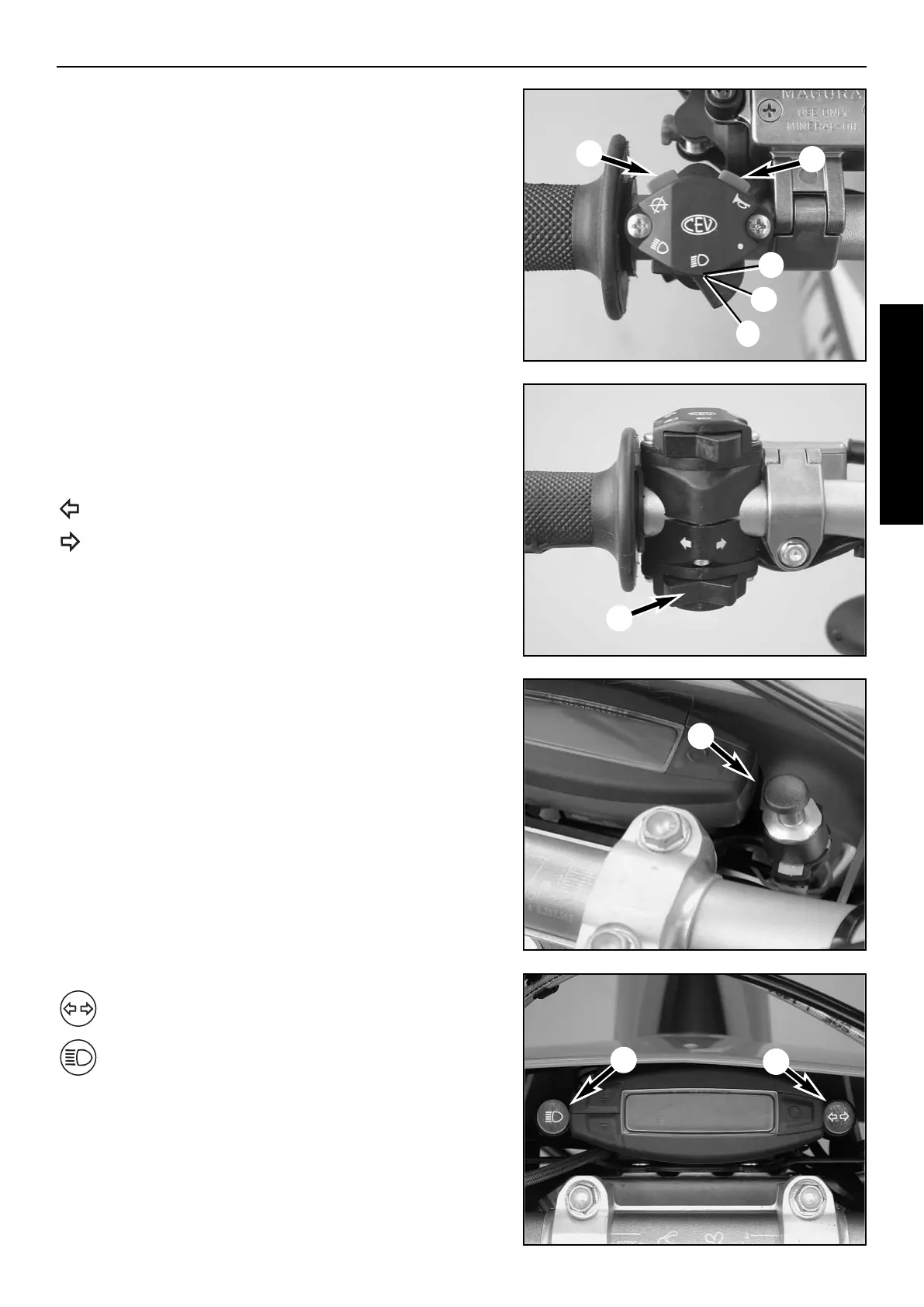

COMBINATION SWITCH
The light switch has 2, respectively 3 switch positions.
(A) = Light off (this function is not available in all models)
(B) = Low beam on
(C) = High beam on
You may use button (1) to actuate the horn.
The red short circuit button (2) serves to switch off the engine. Leave the
switch pressed until the engine stops.
FLASHER SWITCH
The flasher switch (3) is a separate unit and is mounted on the left por-
tion of the handlebar.
The wire harness is designed in a way that whenever you want to use
your bike off-road, you can dismount the entire turn indicator system
without affecting the function of the remaining electrical system.
Flasher left
Flasher right
HEADLAMP SWITCH (USA)
In this model the headlamp is switched on with the pull switch (4).
1
2
A
C
B
3
INDICATOR LAMPS
The green control lamp (5) flashes in the same rhythm as
the flashing indicator when the indicator is working.
The blue control lamp (6) lights up when the high beam
is on.
4
6
5
