MAINTENANCE WORK ON CHASSIS AND ENGINE
- 33 -
ENGLISH

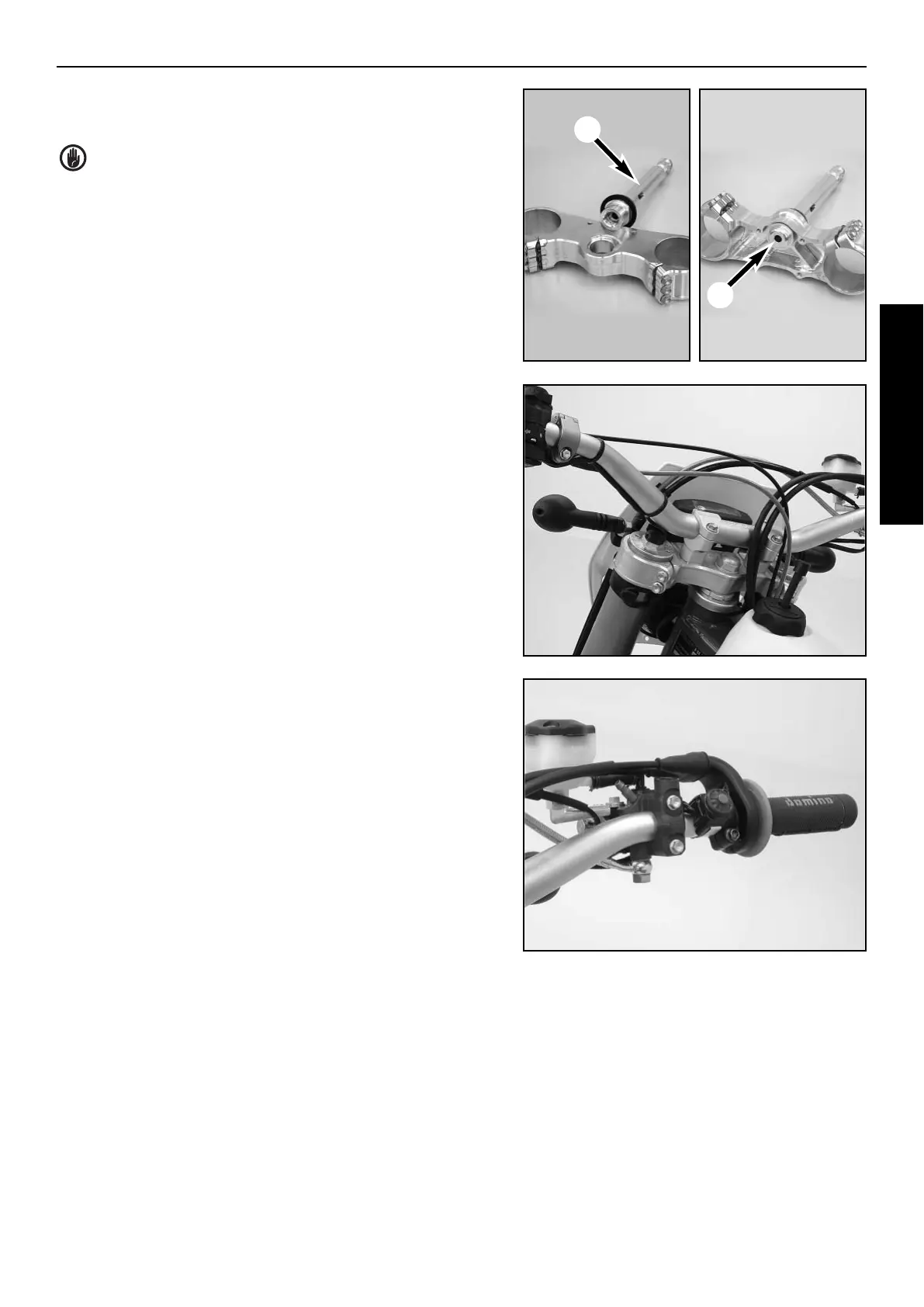

Remove the collar screw from the lower triple clamp and pull out the stee-
ring stem. Thoroughly clean all parts. Turn the steering stem 180° and
insert it in the triple clamp, tighten the collar screw all the way to the stop.
WARNING:A plastic insert in the collar screw thread makes
the collar screw self-locking. Replace if the collar screw can
be screwed in by hand.
Do not confuse the collar screw with the blind screw. The collar
screw is self-locking.
Grease the steering head bearing and sealing elements.
Mount the lower triple clamp, protection ring, adjusting nut, upper triple
clamp and the end screw.
Tighten the collar screw on the lower triple clamp to 80 Nm.
Mount the fork legs and tighten the clamp screws on the lower triple
clamp to 10 Nm in 3 stages.
Adjust the steering head bearing without clearance (see: Checking and
adjusting the steering head support) and tighten the clamp screws on the
upper triple clamp to 15 Nm in 3 stages.
Mount the front wheel fender and tighten the screws to 10 Nm.
Mount the hand brake cylinder and tighten the screws to 10 Nm.
Connect the plug connector for the brake light switch and speedometer
sensor and mount the headlight mask.
Mount the front wheel (see: Dismounting and mounting the front wheel).
