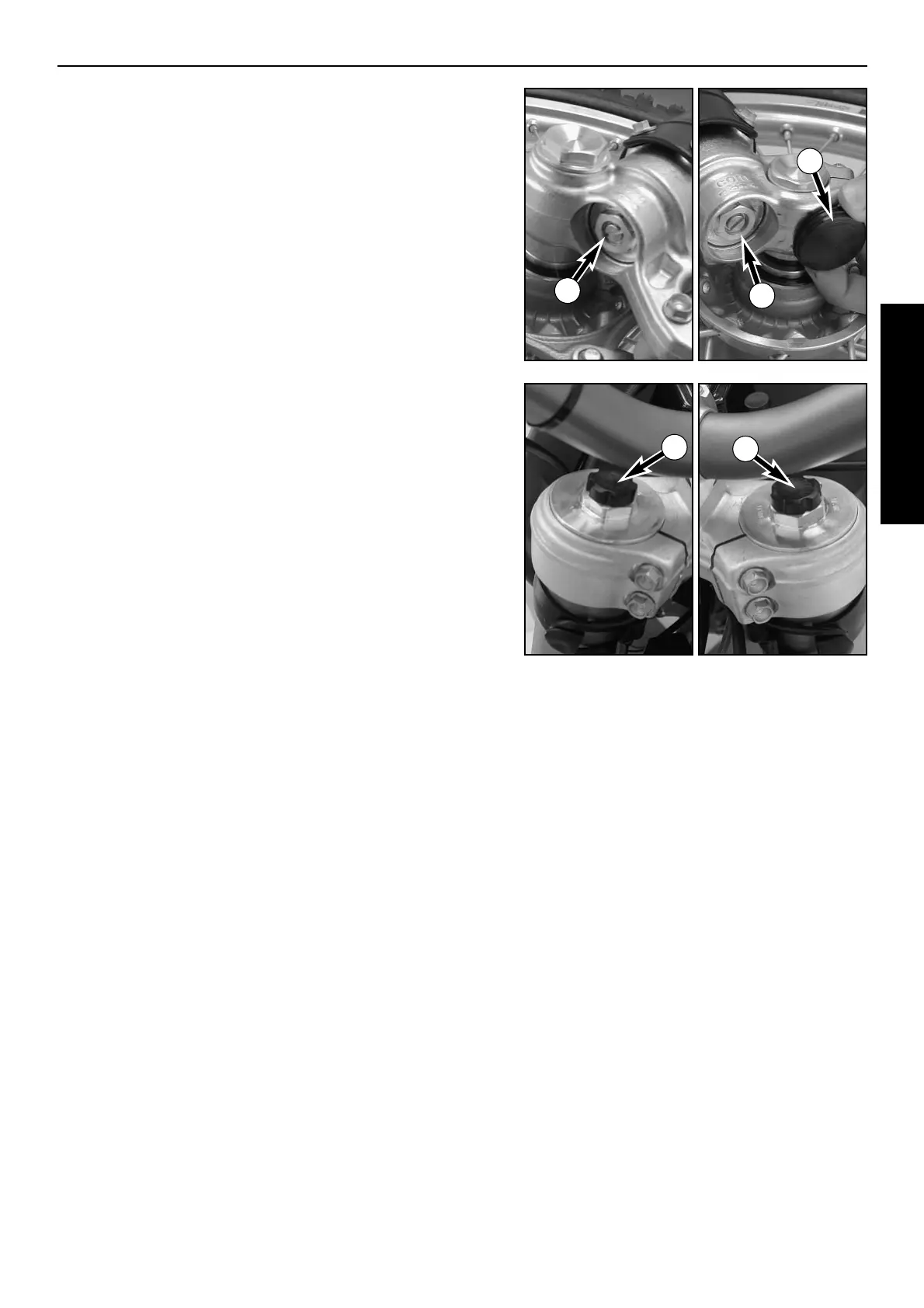

COMPRESSION DAMPING OF FORK
Hydraulic compression damping determines the reaction when the
fork is compressed. The degree of compression can be adjusted
with adjusting screws at the bottom of the fork legs.Remove the
protecting cap (1).
Turn the adjusting screws (2) clockwise to increase damping, turn it
counterclockwise to reduce damping during compression.
STANDARD ADJUSTMENT
– turn adjusting screw clockwise as far as it will go
– turn it back by as many clicks as are specified for the relevant
type of fork
Typ White Power 1445Y728 . . . . . . . . .18 clicks
Typ White Power 1445Y729 . . . . . . . . .19 clicks
Typ White Power 1445Y730 . . . . . . . . .20 clicks
REBOUND DAMPING OF FORK
Hydraulic rebound damping determines the reaction when the fork
is rebound. By turning the adjusting screw (3) (REB), the degree of
damping of the rebound can be adjusted. Turn the knob clockwise
to increase damping, turn it counterclockwise to reduce damping
during rebounding.
STANDARD ADJUSTMENT
– turn adjusting screw clockwise as far as it will go
– turn it back by as many clicks as are specified for the relevant
type of fork
Typ White Power 1445Y728 . . . . . . . . .19 clicks
Typ White Power 1445Y729 . . . . . . . . .21 clicks
Typ White Power 1445Y730 . . . . . . . . .15 clicks
