OPERATION INSTRUMENTS
- 6 -

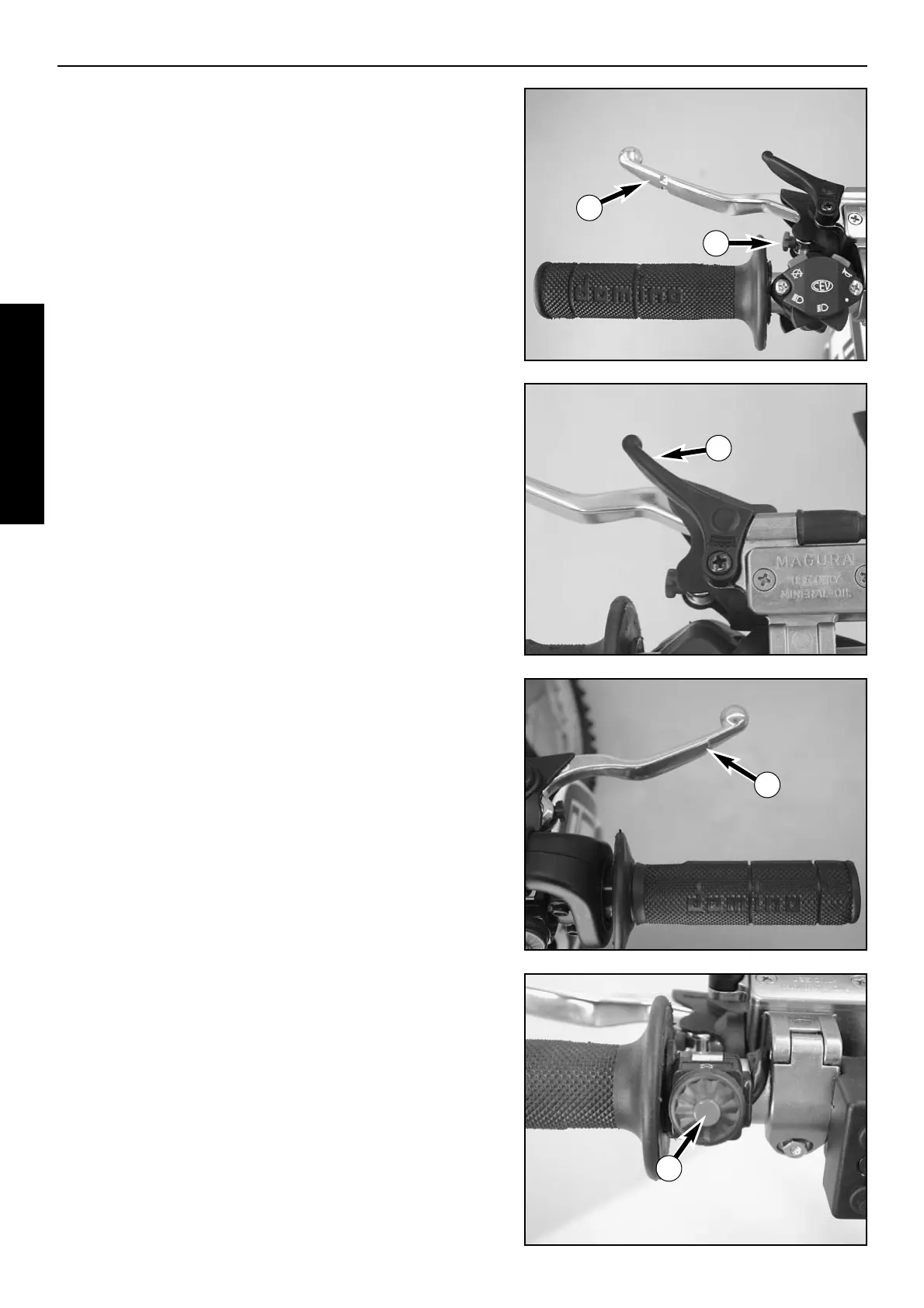

CLUTCH LEVER
The clutch lever (1) is located on the left side of the handlebar. The
adjusting screw (A) is used to change the original position of the
clutch lever (see maintenance work on chassis and engine).
HAND DECOMPRESSION LEVER
The hand decompression lever (2) is needed only if the carburetor
overflows after a fall. To "pump the engine free", pull the hand
decompression lever during the starting procedure.
The outer end of the lever must provide for a backlash of approx.
10 mm (0.4 in) at all times. Only thereafter may it cause valve
motion (to be recognized by the stronger resistance which the
hand decompression lever encounters).
HAND BRAKE LEVER
The hand brake lever (3) is located on the right side of the hand-
lebar and actuates the front brake. The basic setting of the hand
brake lever can be adjusted (see maintenance work).
SHORT CIRCUIT BUTTON
The short circuit button (4) turns off the engine. When pressing this
button, the ignition circuit is short-circuited.
ENGLISH
1
A
2
3
4
