MAINTENANCE WORK ON CHASSIS AND ENGINE
- 51 -
ENGLISH

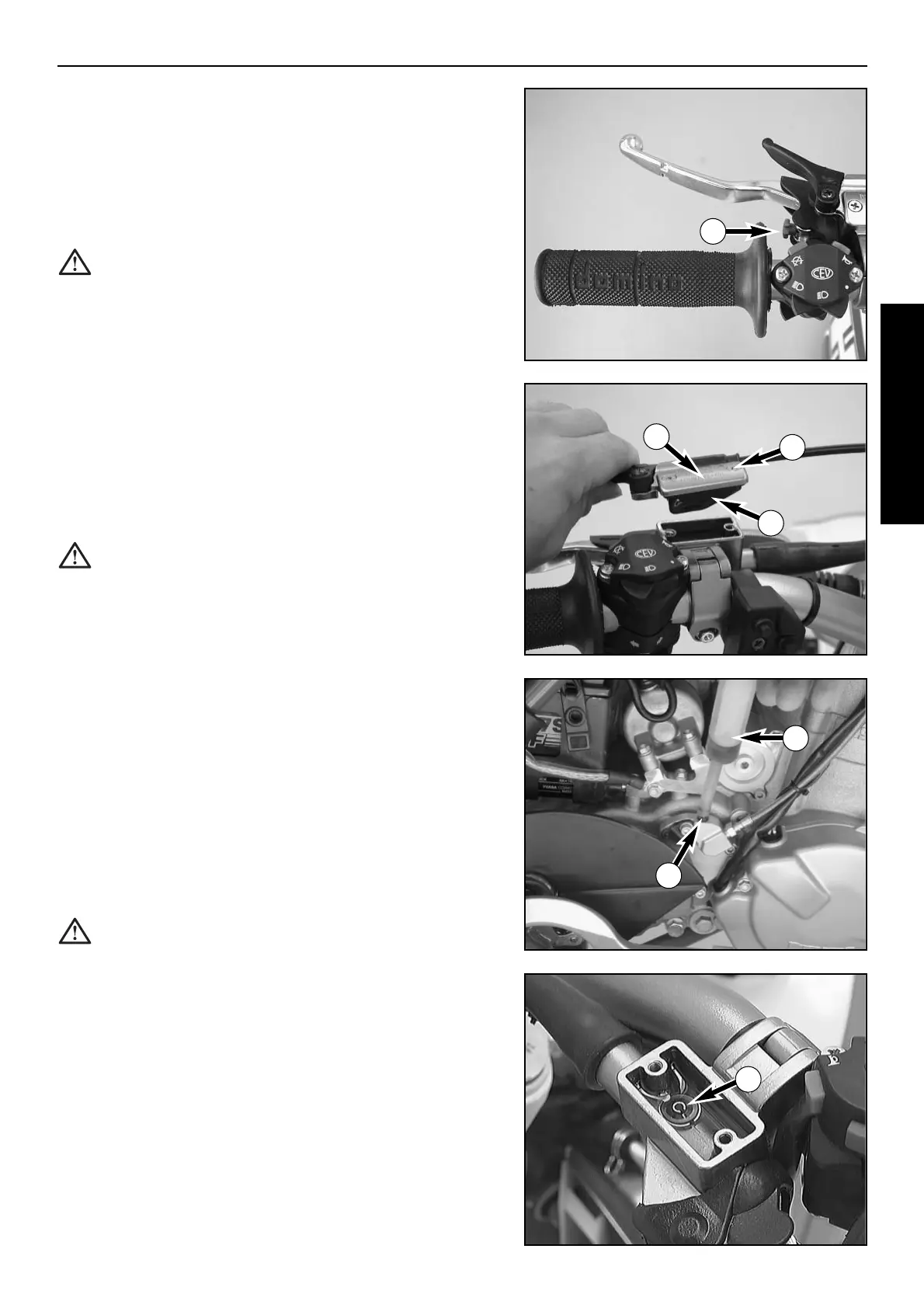

CHANGING THE ORIGINAL POSITION OF THE
CLUTCH LEVER
The adjusting screw (1) can be used for individual adjustment of the
original position of the clutch lever, thus allowing adjustment to an
optimal position for every hand size.
Turning the adjusting screw clockwise reduces the distance bet-
ween the clutch lever and the handlebar. Turning the adjusting
screw counterclockwise increases the distance between the clutch
lever and the handlebar.
CAUTION: Adjustment of the clutch lever position is only
possible within certain limits. Only turn the adjusting
screw manually and never apply excessive force.
CHECKING THE OIL LEVEL OF THE HYDRAULIC
CLUTCH
To check the oil level in the master cylinder of the clutch remove
the cover. For this purpose, remove screws (2) and cover (3)
together with the rubber boot (4). The oil level in the horizontal-
standing master cylinder should be 4 mm below the upper edge.
If necessary, fill up with biodegradable hydraulic oil SAE 10 (e.g.
Motorex Kupplungs-Fluid 75).Biodegradable hydraulic oil is availa-
ble from your Husaberg dealer (50ml).
CAUTION: Husaberg uses biodegradable hydraulic oil for
the hydraulic clutch control. Never mix biodegradable
hydraulic oils with mineral oils. Never refill with mineral
hydraulic oil or brake fluid.
BLEEDING OF THE HYDRAULIC CLUTCH *
To bleed, the cover of the master cylinder of the clutch needs to be
removed. For this purpose, remove screws (2) and take off cover (3)
together with rubber bellows (4). At the slave cylinder of the clutch,
remove the bleeder nipple (5). In its place, mount the bleeder
syringe (6) which is filled with SAE 10 hydraulic oil. Refill oil until oil
is discharged from the bore (7) of the master cylinder in a bubble-
free state. Make sure that the oil does not overflow. The bleeder
syringe can be purchased from your Husaberg dealer.Having com-
pleted the bleeding procedure, you have to verify that the oil level
in the master cylinder is correct.If necessary, fill up with
biodegradable hydraulic oil SAE 10 (e.g. Motorex Kupplungs-Fluid
75). Biodegradable hydraulic oil is available from your Husaberg
dealer (50ml).
CAUTION: Husaberg uses biodegradable hydraulic oil for
the hydraulic clutch control. Never mix biodegradable
hydraulic oils with mineral oils. Never refill with mineral
hydraulic oil or brake fluid.
1
2
3
4
6
7
5
