HUSABERG FE 450 User Manual

DISMOUNTING AND MOUNTING THE ENGINE
B
7

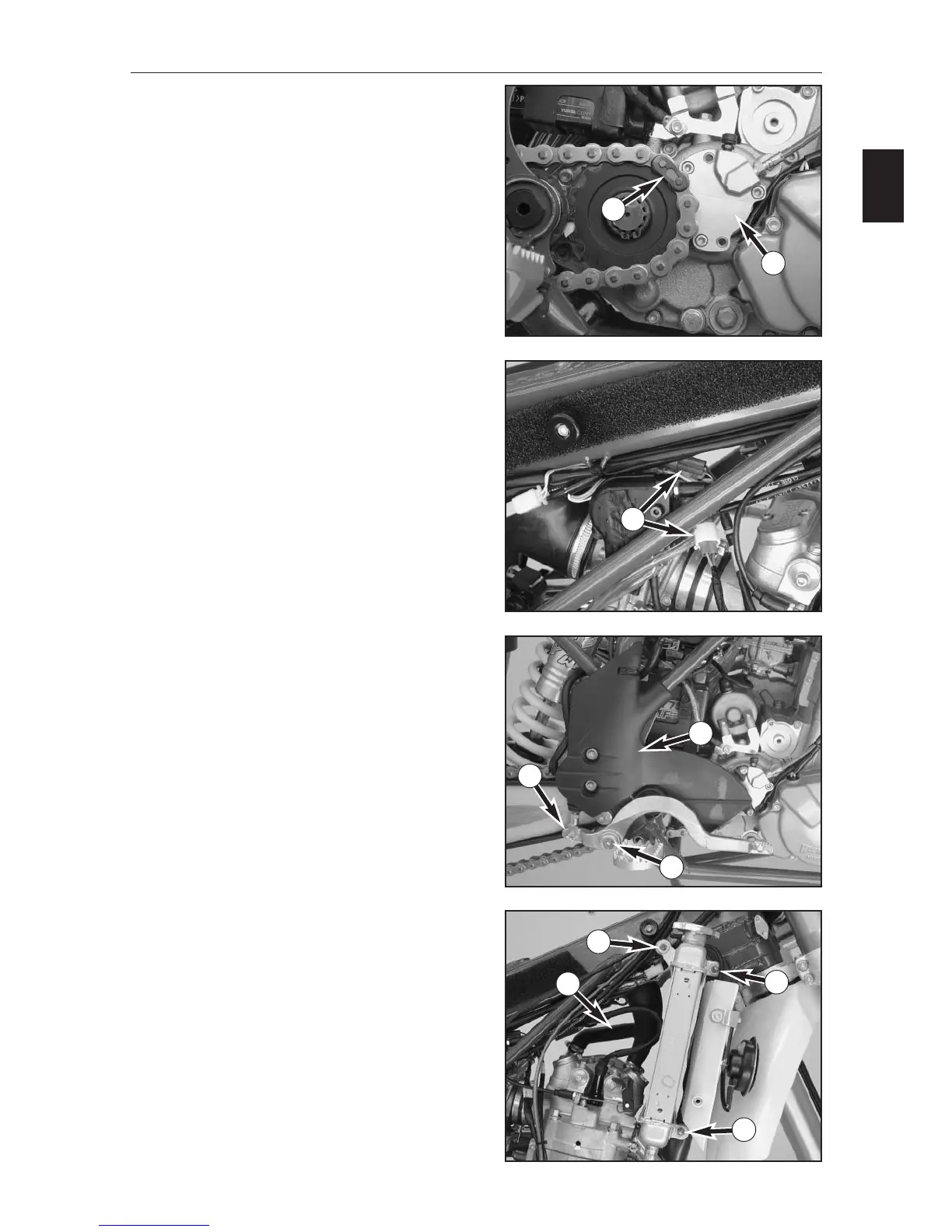

– Mount the clutch slave cylinder (1) and tighten the
bolts to 6 Nm.
– Position the chain and mount the chain joint (2).
– Connect the generator and pickup connector (3) and
fasten the wiring harness to the clutch line with cable
clips.
– Mount the bolt for the push rod holder (4) and secure
with the retaining clip.
– Position the foot brake lever, secure the bearing bolt
(5) with Loctite 243 and tighten the bearing bolt to
10 Nm.
– Screw on the frame protector (6) and secure with cable
clips.
–Slide the radiator into the frame from the right and
screw on with the 3 nuts (7).
– Mount the engine vent hose (8) and tighten the hose
clamps.
1
2
3
4
5
6
7
7
7
8

HUSABERG FE 450 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	449.3 cc
Bore x Stroke	95 mm x 63.4 mm
Compression Ratio	11.8:1
Starter	Electric starter
Transmission	6-speed
Lubrication	Pressure lubrication with 2 oil pumps
Cooling	Liquid cooling
Fuel System	Keihin EFI
Ignition	Digital CDI
