DISMOUNTING AND MOUNTING THE ENGINE
B
6

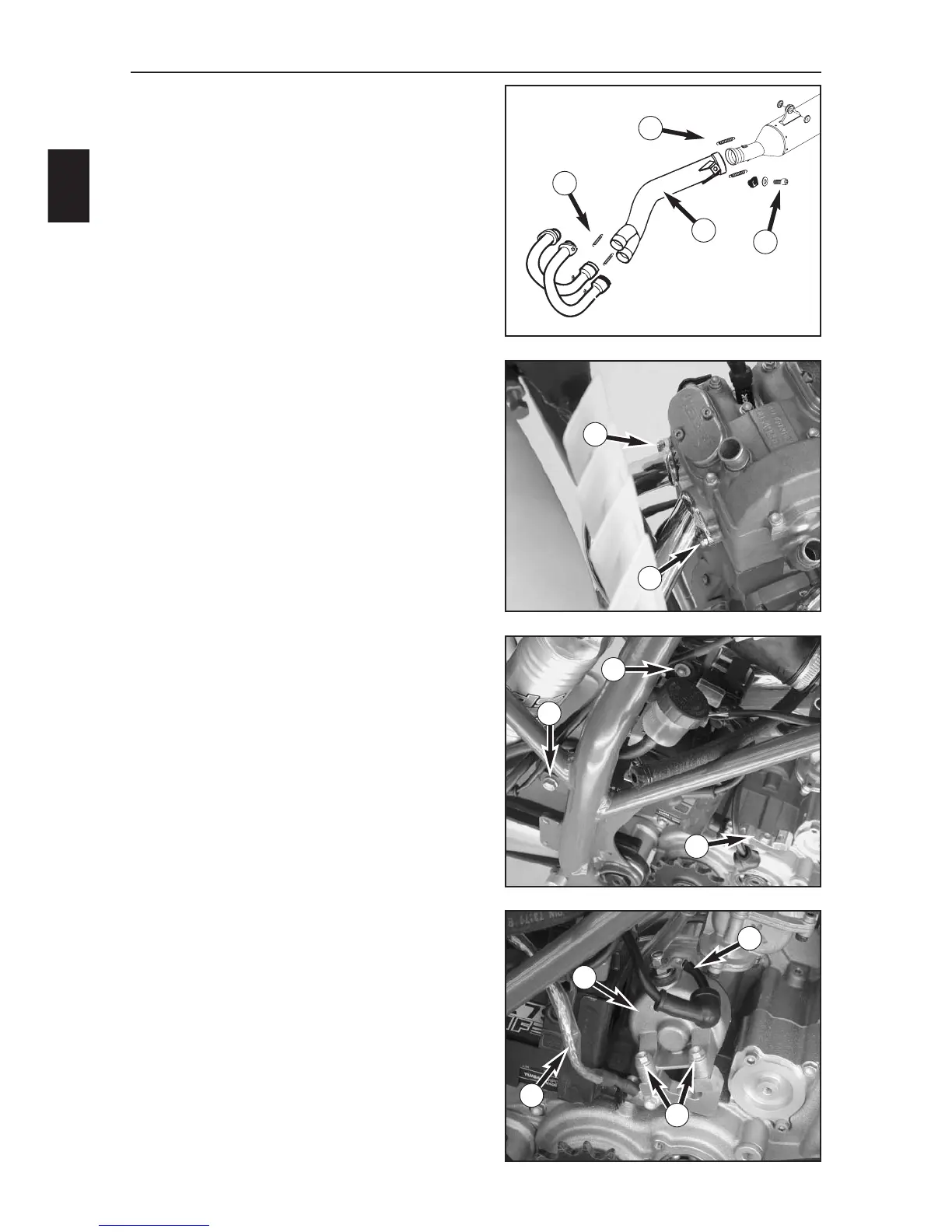

– Mount the intermediate exhaust pipe (1) and tighten
the bolt (2).
–Use a suitable tool (hooked handle) to mount the rear
exhaust springs (3).
–Apply copper paste to the front exhaust pipe at the
connections to the cylinder head and mount.
– Screw on the exhaust nuts (4).
–Mount the front exhaust springs (5).
–Place the battery and battery case in the frame.
– Screw on the starter holding bridge (6).
–Mount the battery case and tighten the nut on the
chain roller bolt (7).
–Mount the starter relay and fix with the bolt (8), attach
the connector.
–Grease the O-ring on the starter engine and mount the
starter engine (9), tighten the bolts (10) to 10 Nm.
– Screw on the engine ground connection (11) and the
positive starter cable (12).
