DISMOUNTING AND MOUNTING THE ENGINE
B
7

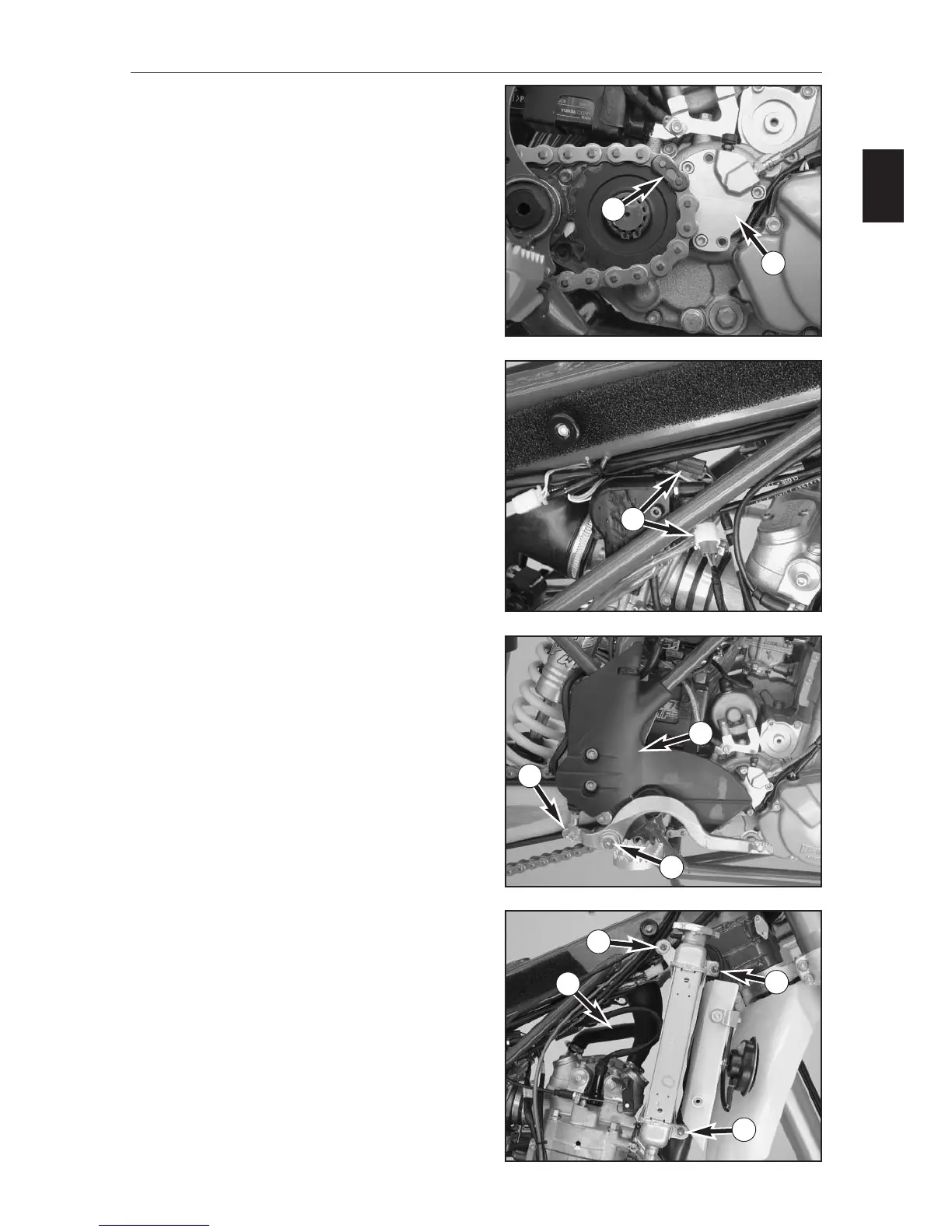

Mount the clutch slave cylinder (1) and tighten the
bolts to 6 Nm.
Position the chain and mount the chain joint (2).
Connect the generator and pickup connector (3) and
fasten the wiring harness to the clutch line with cable
clips.
Mount the bolt for the push rod holder (4) and secure
with the retaining clip.
Position the foot brake lever, secure the bearing bolt
(5) with Loctite 243 and tighten the bearing bolt to
10 Nm.
Screw on the frame protector (6) and secure with cable
clips.
–Slide the radiator into the frame from the right and
screw on with the 3 nuts (7).
Mount the engine vent hose (8) and tighten the hose
clamps.
1
2
3
4
5
6
7
7
7
8
