3. INSTALLATION
Example number 2

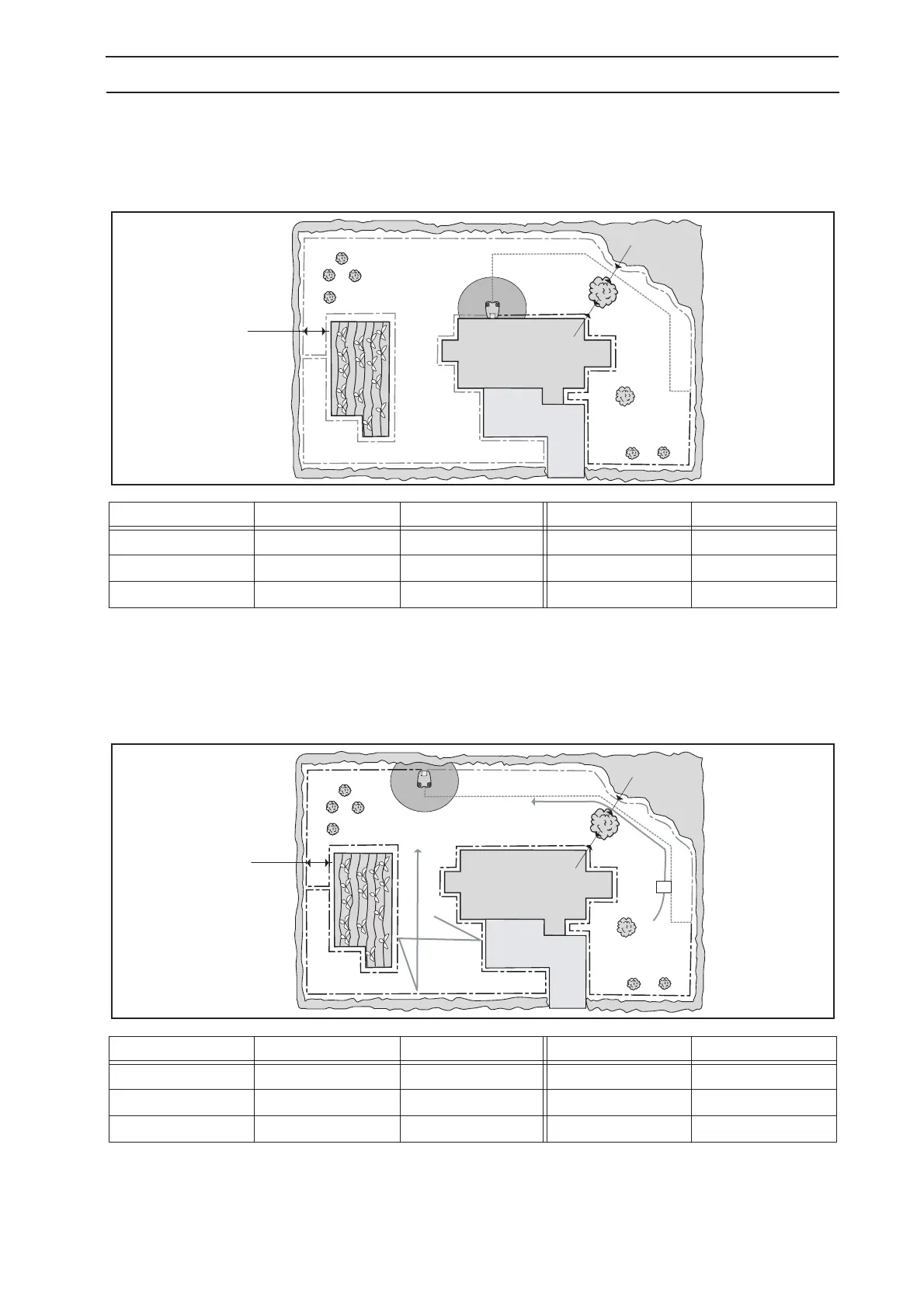

In this example the guide loop is longer than 300 metres (1000 ft). There is a risk that the Automower
®
stops following the guide wire. The charging station should therefore be moved.
In the figure below, the charging station has been moved to the outer edge of the working area. The guide
loop is now shorter than 300 metres (1000 ft) and there is a large open area in front of the charging station.
The delay time for the boundary wire is set to 99 minutes, that is to say, deactivated, which reduces the
risk of tracks forming. Automower
®
will find the charging station through the Irregular search method or by
following the guide wire.
Follow loop Boundary wire Guide wire Follow loop out Area 1
Delay 11 minutes 7 minutes Direction Guide
Corridor width 610Distance 30 metres (100 ft)
Proportion 30%
Follow loop Boundary wire Guide wire Follow loop out Area 1
Delay 99 minutes 7 minutes Direction Guide
Corridor width 610Distance 30 metres (100 ft)
Proportion 30%
2m (6.5ft)
2m (6.5ft)
3m (10ft)
1
Non approved
2m (6.5ft)
2m (6.5ft)
3m (10ft)
1
Fully approved
10
