3. INSTALLATION

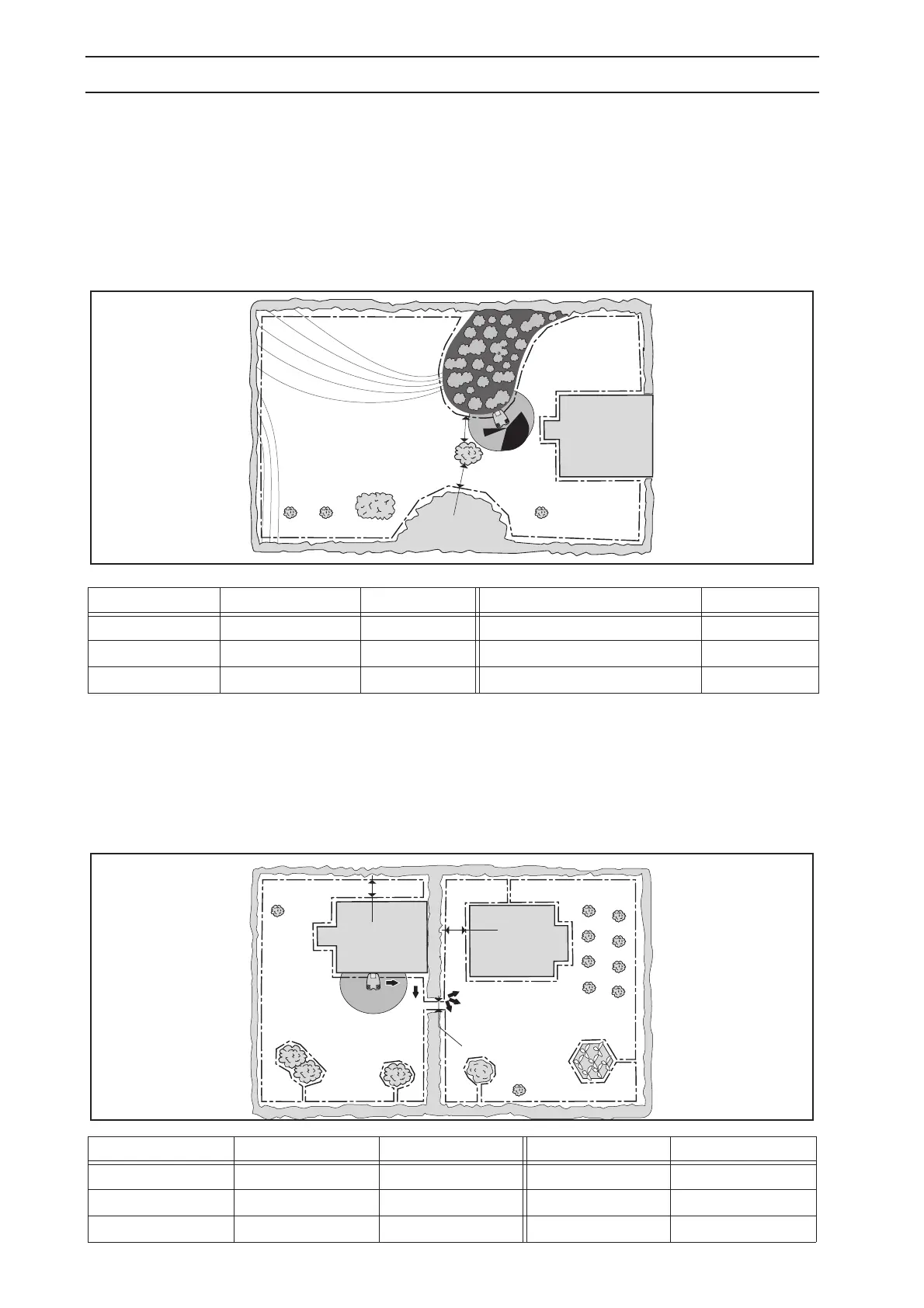

Example number 3
In this example different exit angles have been set. Automower
®
will easily reach all parts of the working
area. The risk of tracks forming is less with these settings compared with allowing the mower to follow the
boundary wire out of the charging station.
Increasing the delay time for the boundary wire increases the chance of the mower finding the charging
station before it starts to follow the boundary wire. When searching it is a disadvantage for the mower to
follow the boundary wire across an incline.
Example number 4
In this example a Corridor width 0 is required for the mower to pass through the passage. This setting
requires the boundary wire to be at least 40cm (16”) inside the working area, which the passage is too
narrow for. The working area also contains many islands, which makes it inappropriate to allow the mower
to follow the boundary wire. In order for the mower to easily pass through the passage, to avoid tracks
forming and to get shorter search times, a guide wire through the passage is recommended.
Follow loop Boundary wire Guide wire Exit angles Area 1, 2, 3
Delay 20 minutes 7 minutes Start angle 1 – End angle 1 (3) 60° and 200°
Corridor width 66Start angle 2 – End angle 2 (1, 2) 240° and 270°
Proportion first 40 %
Follow loop Boundary wire Guide wire Follow loop out Area 1
Delay 11 minutes 7 minutes Direction Right
Corridor width 06Distance 10 metres (30 ft)
Proportion 50 %
3m (10ft)
2
3m (10ft)
1
Fully approved
3
3m (10ft)
1m (3ft)
3m (10ft)
1
Non approved
2
