To engage and disengage the drive
system

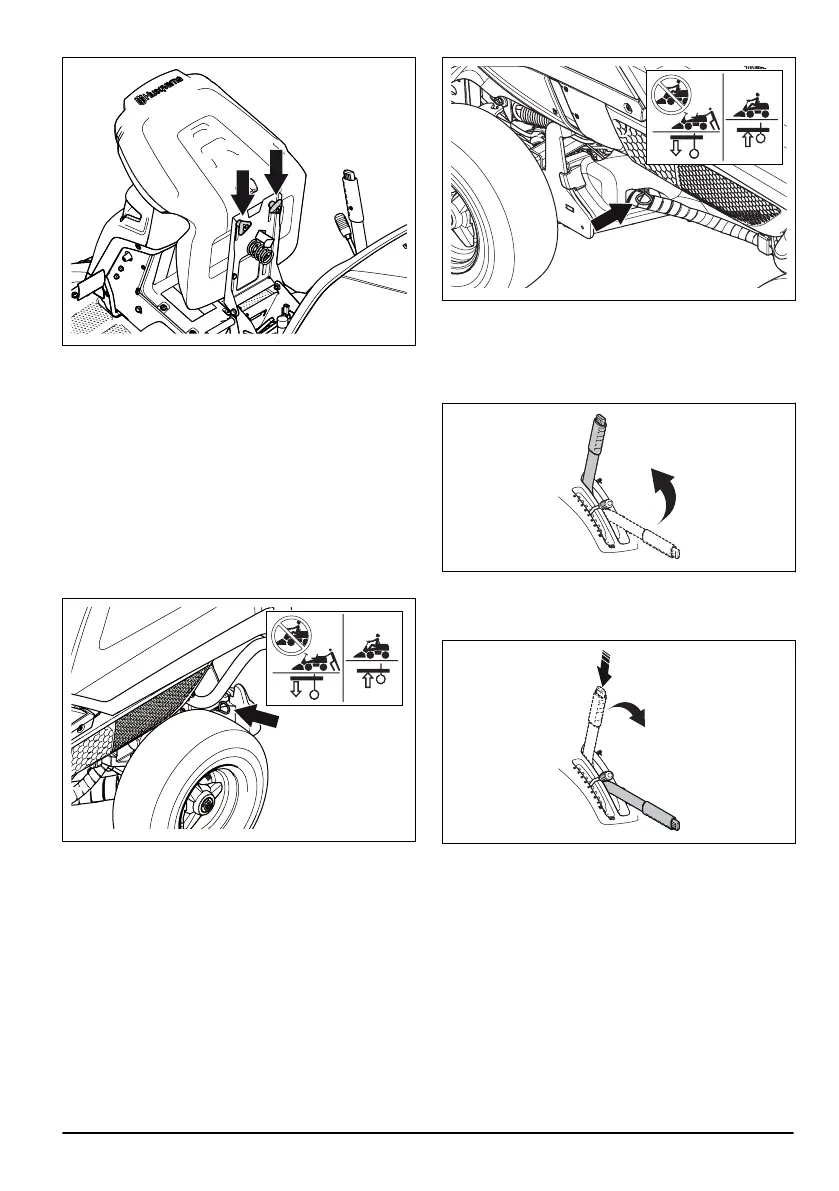

To move the product with the engine off, the drive
system must be disengaged. Pull out the drive system
lever fully to disengage the drive on the axle. Push the
drive system lever in fully to engage the drive on the
axle. Do not use middle positions.
The drive system lever for model RC 318T is found
behind the left rear wheel. Model RC 320Ts AWD has
one drive system lever for the front and one for the rear
axle. The drive system lever for the rear axle is found
behind the left rear wheel.
The drive system lever for the front axle for RC 320Ts
AWD is found behind the left front wheel.
To lift and lower the cutting deck
To lift the cutting deck to transport position, pull the lift
lever rearward. If the engine is on, the blades stop to
rotate automatically.
To lower the cutting deck to mowing position, press the
lock button and move the lift lever forward. If the engine
is running, the blades start to rotate automatically.
To adjust the sensor for collector full
If the hatch opens or the auger stops before the collector
is full, it is necessary to adjust the sensor for collector
full. There are 4 positions for the sensor for collector full.
63 - 007 - 20.06.2017
15
