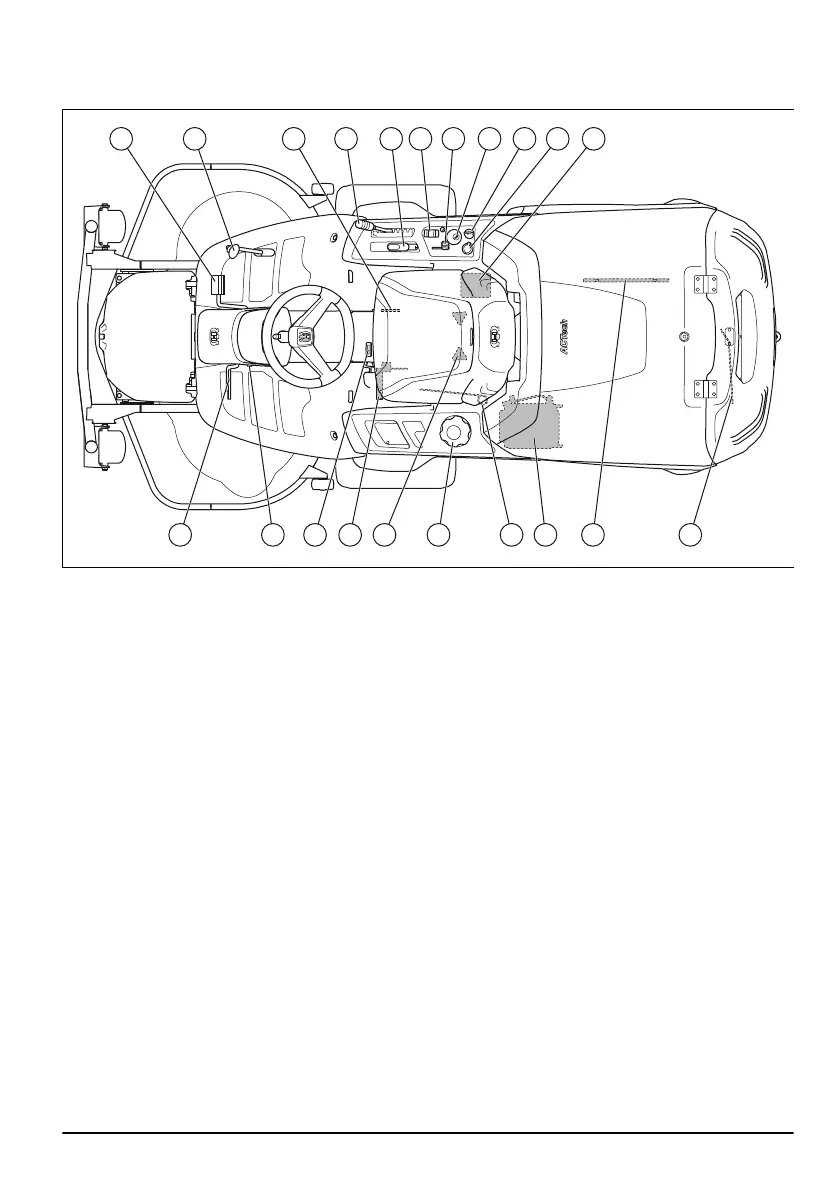

Product overview

1 2 43 65 117 8 9 10

12 13 14 15 1716 18 212019

1. Pedal for driving forward

2. Pedal for reversing

3. Type plate

4. Cutting height lever

5. Lift lever for the cutting deck

6. Switch for tilting the collector

7. Throttle control

8. Auger control switch with LED indicators

9. Ignition lock

10. Power outlet 12V

11. Battery

12. Parking brake pedal (RC 320Ts AWD)/parking and

speed brake pedal (RC 318T)

13. Lock button for parking brake

14. Hour meter

15. Auger servicing position lever

16. Seat adjustment

17. Fuel cap

18. Lever to engage or disengage the drive on the front

axle, RC 320Ts AWD

19. Hydraulic oil cooler, RC 320Ts AWD

20. Auger maintenance tool

21. Lever to engage or disengage the drive, RC 318T.

Lever to engage or disengage the drive on the rear

axle, RC 320Ts AWD

63 - 007 - 20.06.2017 3

Contents2
Introduction2
Pre-Delivery Inspection and Product Numbers2
Product Description2
Product Overview3
Electrical System Overview4
Hour Meter4
Battery4
Power Outlet4
Ignition Lock5
Forward and Reverse Pedals5
Auger Control Switch with LED Indicators5
Symbols on the Product5
Safety7
Safety Definitions7
Product Liability7
General Safety Instructions7
Safety Instructions for Operation8
Safety Instructions Regarding Children8
Personal Protective Equipment9
Safety Devices on the Product9
To Do a Check of the Ignition Lock9
Safety Circuit9
Parking Brake10
Muffler10
To Mow on Slopes10
Protective Covers10
Battery Safety11
Fuel Safety11
Safety Instructions for Maintenance11
Assembly12
To Attach the Cutting Deck12
To Remove the Cutting Deck13
Operation14
To Fill Fuel14
To Adjust the Seat14
To Engage and Disengage the Drive System15
To Lift and Lower the Cutting Deck15
To Adjust the Sensor for Collector Full15
To Start the Engine16
To Use the Product in Collect Mode16
To Use the Product in Non-Collect Mode18
To Apply and Release the Parking Brake18
To Get a Good Mowing Result18
To Stop the Engine18
Maintenance19
Maintenance Schedule19
To Clean the Product20
Clean the Product Directly after Use20
To Clean the Engine and the Muffler20
To Clean the Engine Cooling Air Intake21
To Clean the Hydraulic Oil Cooler21
To Remove Blockage from the Auger21
To Remove the Covers22
Engine Cover22
Left Fender22
Front Cover22
To Examine the Steering Wires23
To Do a Check of the Parking Brake23
To Replace the Fuel Filter23
To Clean and Change the Air Filter23
To Replace a Fuse24
To Set the Tire Pressure24
To Charge the Battery24
To Put the Cutting Deck in Servicing Position24
To Put the Cutting Deck in Mowing Position25
To Do a Check of and Adjust the Cutting Deck Ground Pressure26
To Do a Check of the Parallelism of the Cutting Deck26
To Adjust the Parallelism of the Cutting Deck27
To Examine the Blades27
To Replace the Blades27
To Replace the Engine Oil28
To Do a Check of the Engine Oil Level28
To Change the Oil Filter28
To Lubricate the Belt Adjuster29
To Do a Check of the Transmission Oil Level29
Troubleshooting30
Troubleshooting Schedule30
To Safely Attach the Product on a Trailer for Transport31
Transportation, Storage and Disposal31
Storage32
Disposal32
Technical Data32
To Tow the Product32
Service34
Warranty35
Instrucciones Generales de Seguridad41
Parada del Motor53
Programa de Mantenimiento53
Ricerca Dei Guasti101
Dati Tecnici104
Caratteristiche Tecniche104
