100 hours of operation, replace the air filter with a
new one.
5. Attach the filter cover and tighten the knobs.
To replace a fuse
1. Remove the right side cover, see
Side cover on
page 22
.

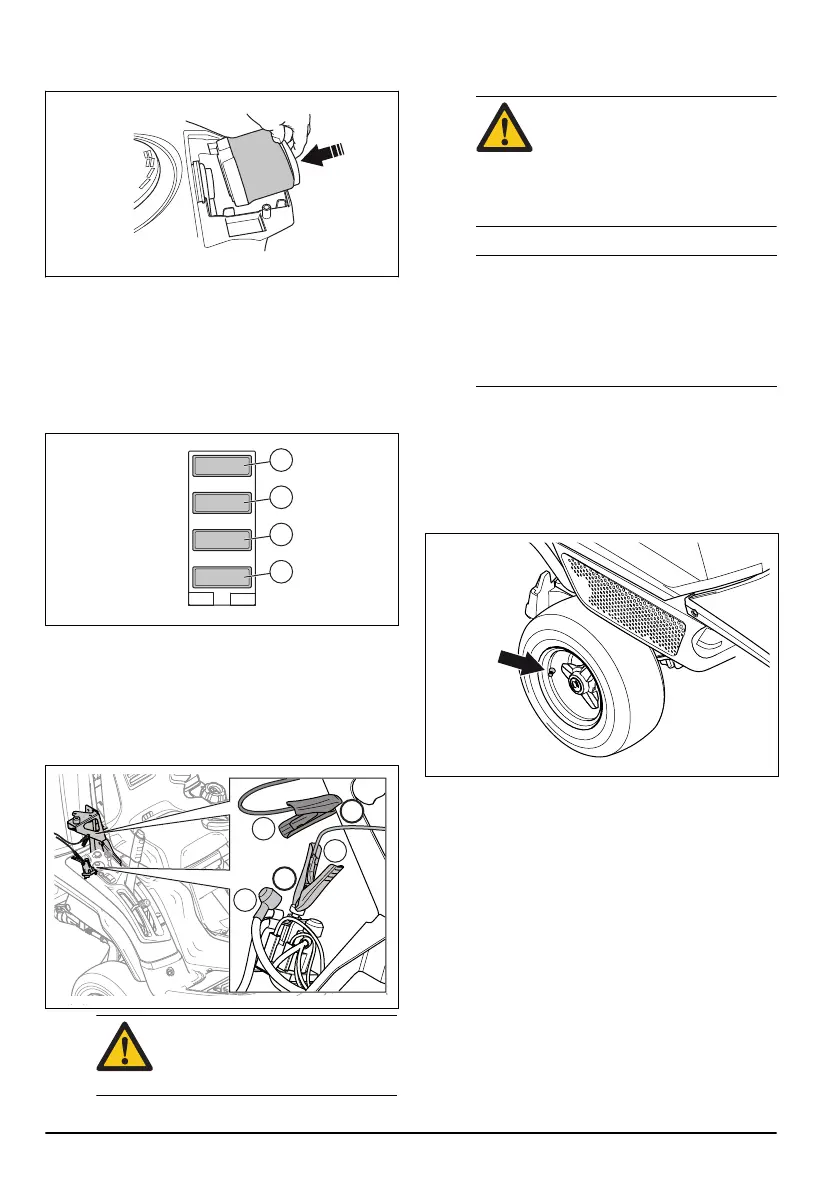

2. Replace the blown fuse with a new one. Refer to the
illustration. (1) Ignition, 15A. (2) Auger control, 7.5A.
(3) Actuator, 30A. (4) Power outlet 12V, 7.5A.
To charge the battery
1. Tilt the seat forward.
2. Remove the rubber cap (1) from the solenoid that is
connected to the red cable from the battery.
3. Connect the red cable (+) from the battery charger to
the solenoid (2).
CAUTION:
To prevent short circuit,
make sure that the red cable from
the battery charger is connected to
the correct solenoid.
4. Connect the black cable (-) from the battery charger
to a zinked metal part as shown in the illustration (3).
WARNING: The battery and
electrical system can become
damaged and cause injuries if
incorrect type of charger is used.
Use only the charger specified by
Husqvarna for this type of battery
(LiFePO
4
).
5. Start the battery charger.
Note: If the battery voltage is too low the battery
goes into protective mode. The battery charger
can not sense the battery and does not charge.
If this occurs, press and hold the reset button on
the battery charger for 10 seconds until it starts
to charge. Read more in the instructions that are
supplied with the battery charger.
6. When the battery is charged, stop the charger and
disconnect it from the battery.
7. Put the rubber cap (1) back on the solenoid.
To set the tire pressure
The correct tire pressure is 150 kPa (1.5 bar / 21.8 PSI)
on all 4 tires.
To put the cutting deck in servicing
position
1. Park the product on level ground.
2. Apply the parking brake.
3. Set the cutting height lever in the servicing position.
4. Pull the lift lever for the cutting deck rearward to its
locked position to lift up the cutting deck.
24
63 - 007 - 20.06.2017
