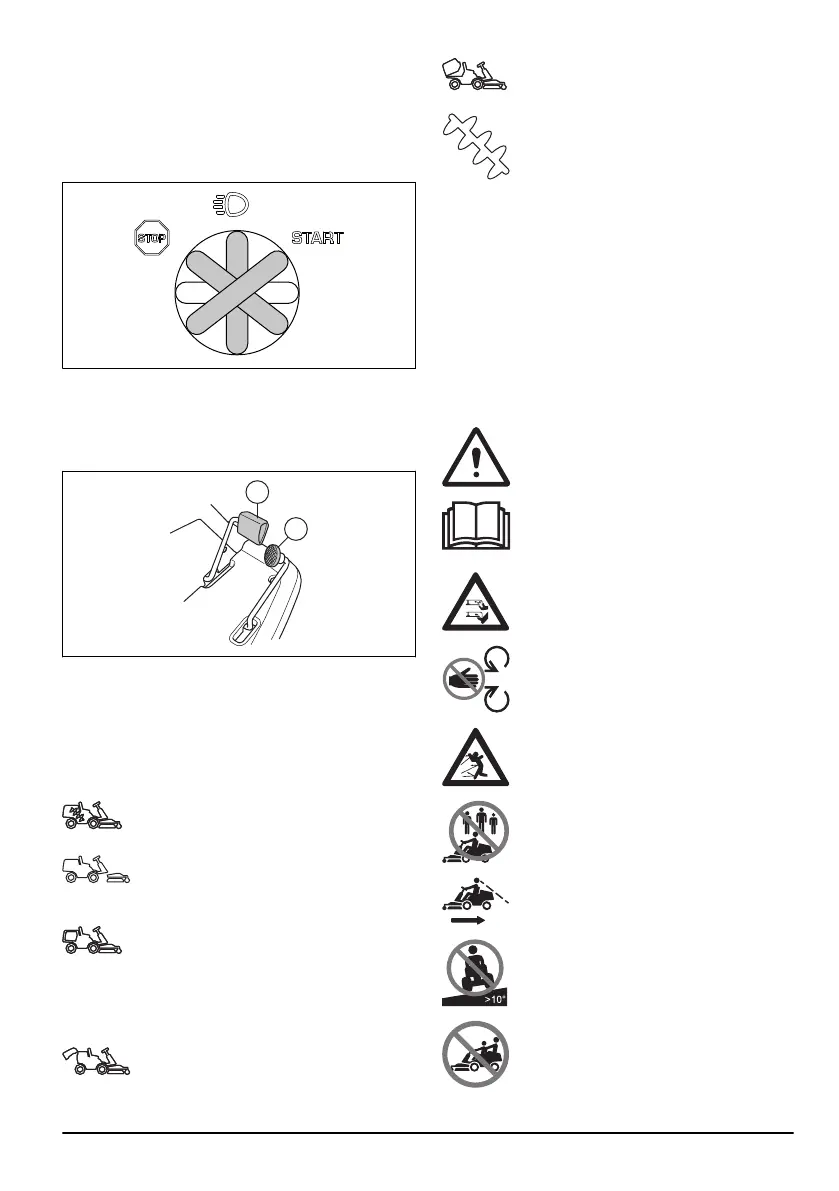

Ignition lock
The ignition lock has 4 positions: stop, lights, neutral and
start. If the ignition is left on but the engine is off, a beep
is heard at a 20 second interval to remind the user to
turn the ignition lock to STOP to not discharge the
battery.
Forward and reverse pedals
The speed is steplessly adjusted with two pedals. Pedal
(1) is used to move forward, and pedal (2) to reverse.
The product brakes when the pedals are released.
Auger control switch with LED
indicators
Symbols on the auger control switch show if the product
is in collect or non-collect mode and the status of the
auger and collector. The table below gives the meaning
of the different symbols.
The auger is in the servicing position. The
symbol lights up red and a beep is heard.
The cutting deck is not attached correctly.
The symbol lights up red and a beep is
heard.
The collector is full. The symbol lights up
orange and a beep is heard. The auger
continues to send grass into the collector. If
you do not empty the collector, the pressure
from the grass opens the collector hatch
after some time.
The collector hatch is open. The symbol
lights up red and a beep is heard.
The collector is not lowered. The symbol
lights up red and a beep is heard.
A green symbol on the auger button shows
that the product is set to collect mode.
A blue symbol on the auger button shows
that the product is set to non-collect mode.
Press and hold the auger button until a beep
is heard to change between collect and non-
collect mode.
A red symbol on the auger button shows
that the auger is blocked and has stopped. A
continuous beep is heard. Turn the ignition
lock to STOP to stop the beeping. See the
instructions in
To remove blockage from the
auger on page 21
to remove the blockage
before you start the product again.
Symbols on the product
WARNING: Careless or incorrect use can
result in serious or fatal injury to the operator
or others.
Please read the operator's manual carefully
and make sure that you understand the
instructions before use.
Rotating blades. Keep body parts away from
the cover when the engine is on.
Warning: rotating parts. Keep body parts
away.
Look out for thrown objects and ricochets.
Never use the product if persons, especially
children, or animals, are in the vicinity.
Look behind you before and while you move
the product in reverse.
Never cut grass across a slope. Do not cut
grass on ground that slopes more than 10°.
See
To mow on slopes on page 10
.
Never carry passengers on the product or
equipment.
63 - 007 - 20.06.2017 5
