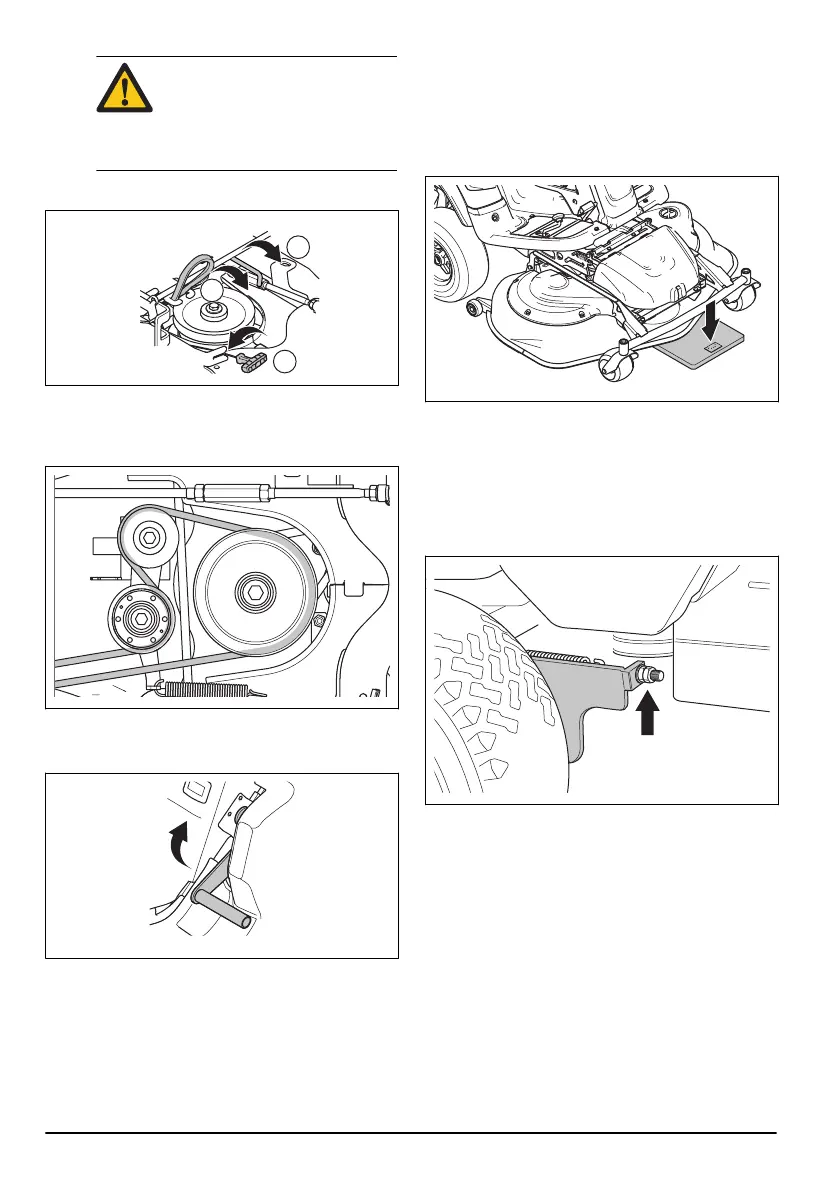

CAUTION: The drive belt can get
pinched and break if it gets caught
below the cutting deck. Pull on the
drive belt loop in the belt holder to
stretch the drive belt before you
push the cutting deck in.
4. Lift the cutting height stay from the stay holder and
put it in the hole (1).
5. Hold the spring handle and lift the drive belt out of
the holder.
6. Put the drive belt around the tension wheel (2). Make
sure the drive belt runs as illustrated below.
7. Put the spring in the spring holder (3).
8. Pull the auger control lever up into operating
position.
9. Attach the front cover.
To do a check of and adjust the cutting
deck ground pressure
To get the best mowing results it is important to have
correct pressure from the cutting deck on the underlying
surface.
1. Make sure that the air pressure in the tires is 150
kPa (1.5 bar / 21.8 PSI).
2. Park the product on a level surface.
3. Lower the cutting deck to mowing position.
4. Put a set of bathroom scales below the front edge of
the cutting deck.
5. To make sure the support wheels do not bear
weight, put a block between the frame and the
scales.
6. To adjust the ground pressure, turn the adjustment
screws found behind the front wheels on the right
and left sides.
7. Turn the screws right or left until the ground pressure
is between 12 and 15 kg (26.5-33 lb).
To do a check of the parallelism of the
cutting deck
1. Make sure that the air pressure in the tires is 150
kPa (1.5 bar / 21.8 PSI).
2. Park the product on a level surface.
3. Lower the cutting deck to mowing position.
4. Measure the distance between the ground and the
front and rear edges of the cutting deck and make
sure that the rear edge is 4–6 mm (1/5″) higher than
the front edge.
26
63 - 007 - 20.06.2017
To Next Page
