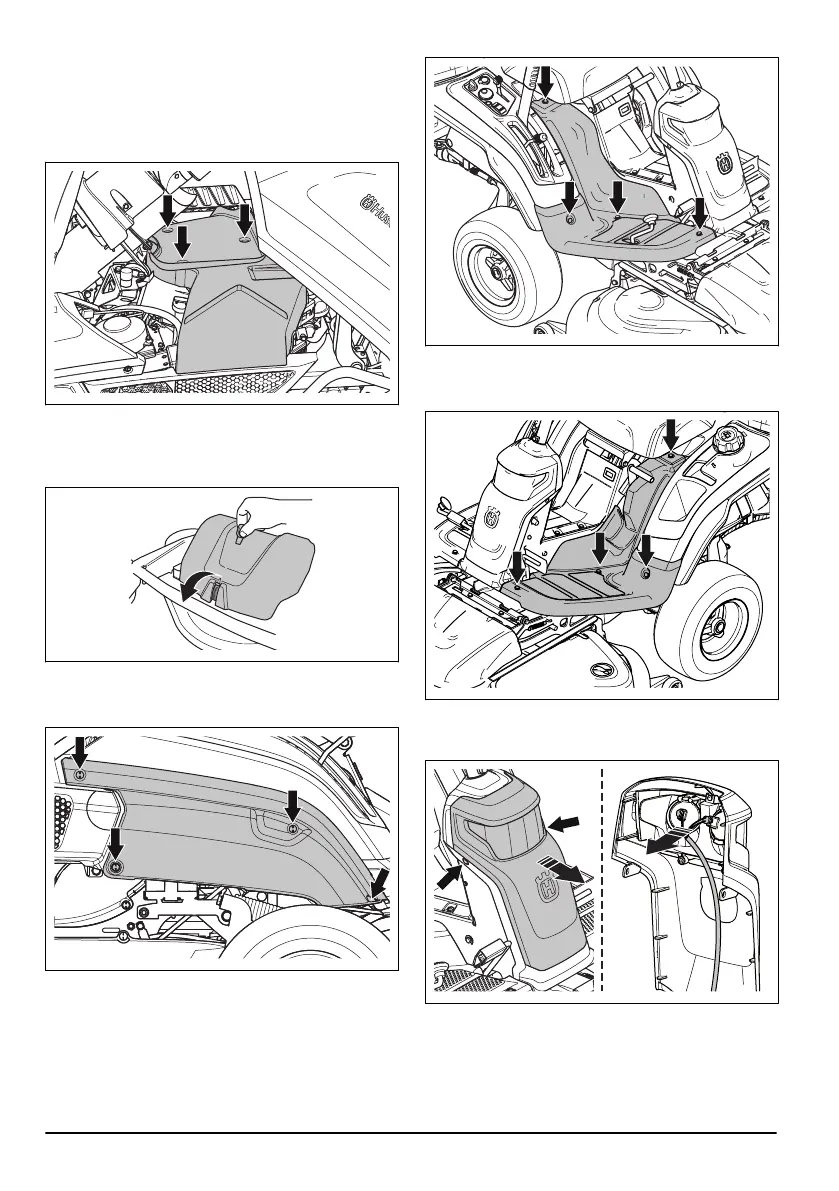

To remove the covers
Engine cover
Tilt the collector to access the engine cover, remove the
3 screws and lift off the cover.
Front cover
Release the clip on the front cover with the tool attached
to the ignition key, and lift off the cover.
Side cover
Remove the 4 screws and lift off the cover.
Right fender
Turn the knob on the reverse pedal to remove it.
Remove the 4 screws and lift off the cover.
Left fender
Remove the 4 screws and lift off the cover.
To replace a broken lamp
1. Remove the 2 screws on the cover and lift it off.
2. Disconnect the cables from the broken lamp.
3. Replace the lamp and connect the cables to the new
lamp. Use the type of lamp as given in
Technical
data on page 32
.
22
63 - 007 - 20.06.2017
