HydraMaster MAXX 450D - Valve Assembly

To Next Page

To Previous Page

HydraMaster Corporation

1/18/00

MAXX 450D/470D/450 Diesel

Section 7-1

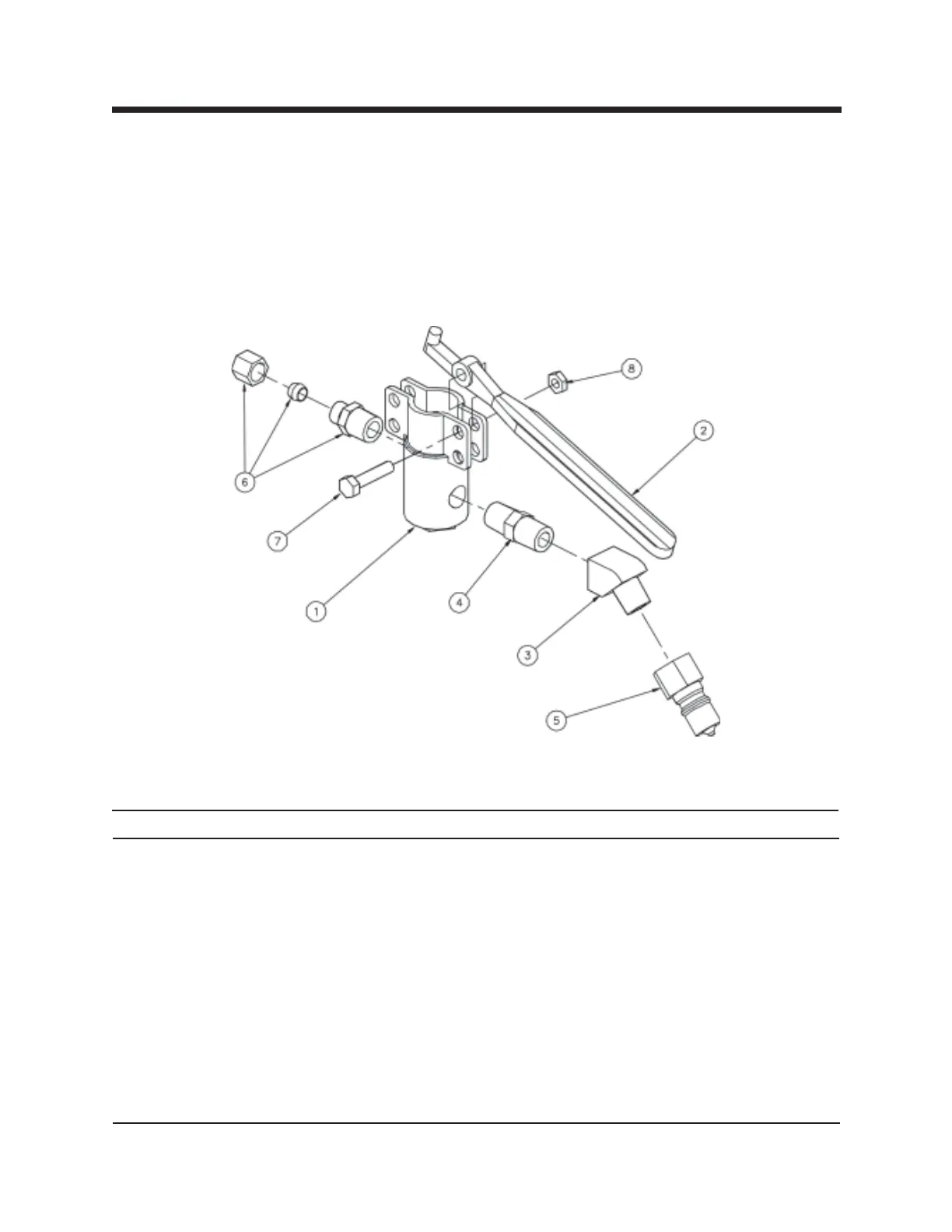

Figure 7-1 Valve Assembly

C3652

ITEM PART NO. DESCRIPTION QTY

1 169-058 Valve, s/s HM Solution 1

2 167-013 Trigger, Hydra Hoe Valve - Brass 1

3 052-082 Elbow, ¼” Brass 45 Street 1

4 052-095 Nipple, ¼” s/s Hex 1

5 052-050 Quick Connect, 440 M with Viton 1

6 052-152 Compression, ¼” Male Hydra Hoe Fitting 1

7 143-002 Screw, ¼ - 20 x 1" HHC s/s 1

8 094-009 Nut, ¼ - 20 s/s Nylock 1

Cleaning Wand Parts
