HydraMaster MAXX 450D - Bypass Heat Exchanger

MAXX 450D/470/Diesel Page 1-43
HydraMaster Corporation

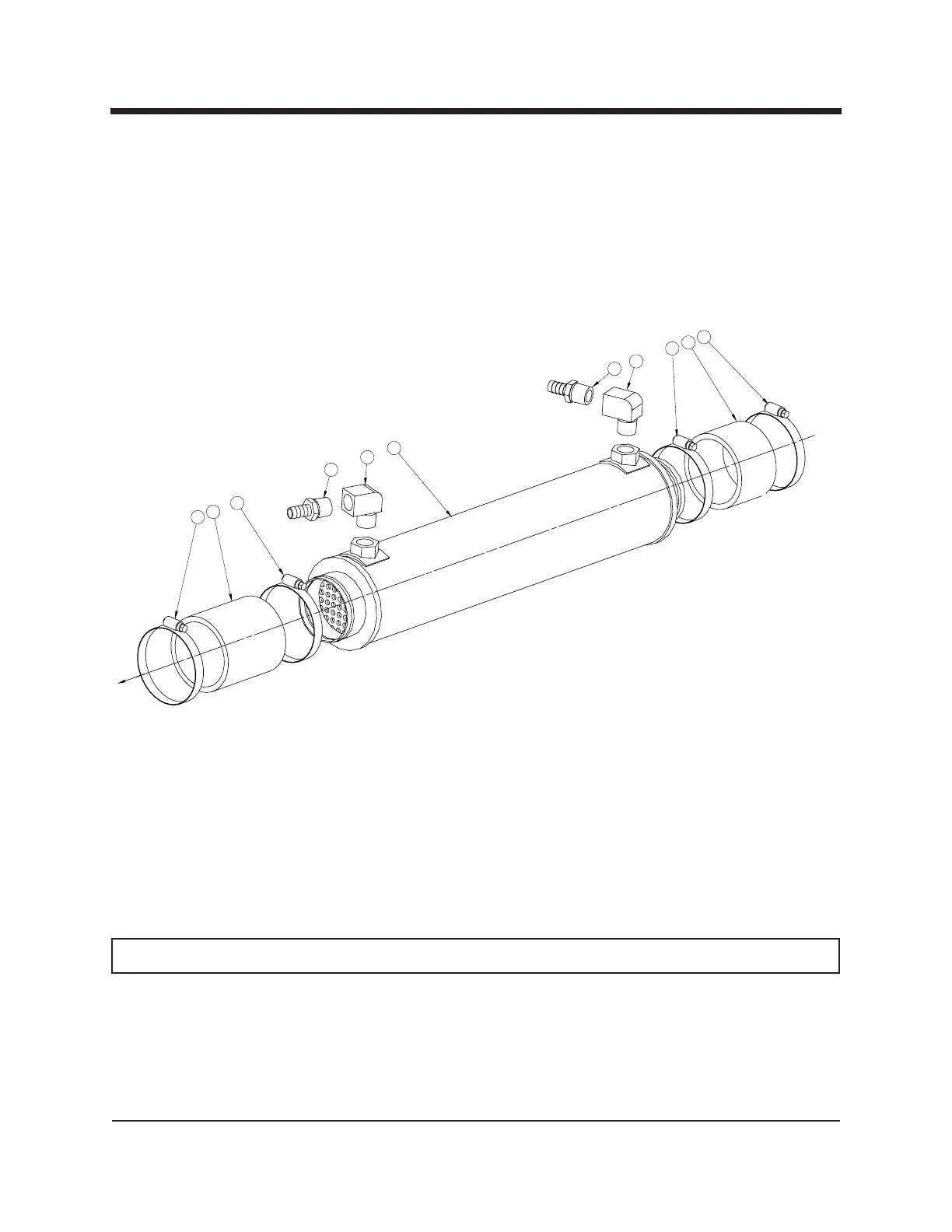

Figure 1-16 Bypass Heat Exchanger
C-4587 Rev C
Bypass Heat Exchanger Parts List
Item Part Number Description Qty
5
4
4
4
OUT
IN
4
3
5
1
2
2
3
1 000-038-031 Core, 4" x 19" Tube & Shell Hx w/ 3" Ends 1
2 000-052-087 Elbow, 1/2" NPT Street 2
3 000-052-107 Insert, #88 (1/2" NPT x 1/2" Barb) 2
4 000-033-013 Clamp, Size #48 Hose 4
5 000-068-008 Hose, 3" Type 54 Nitrile 2
