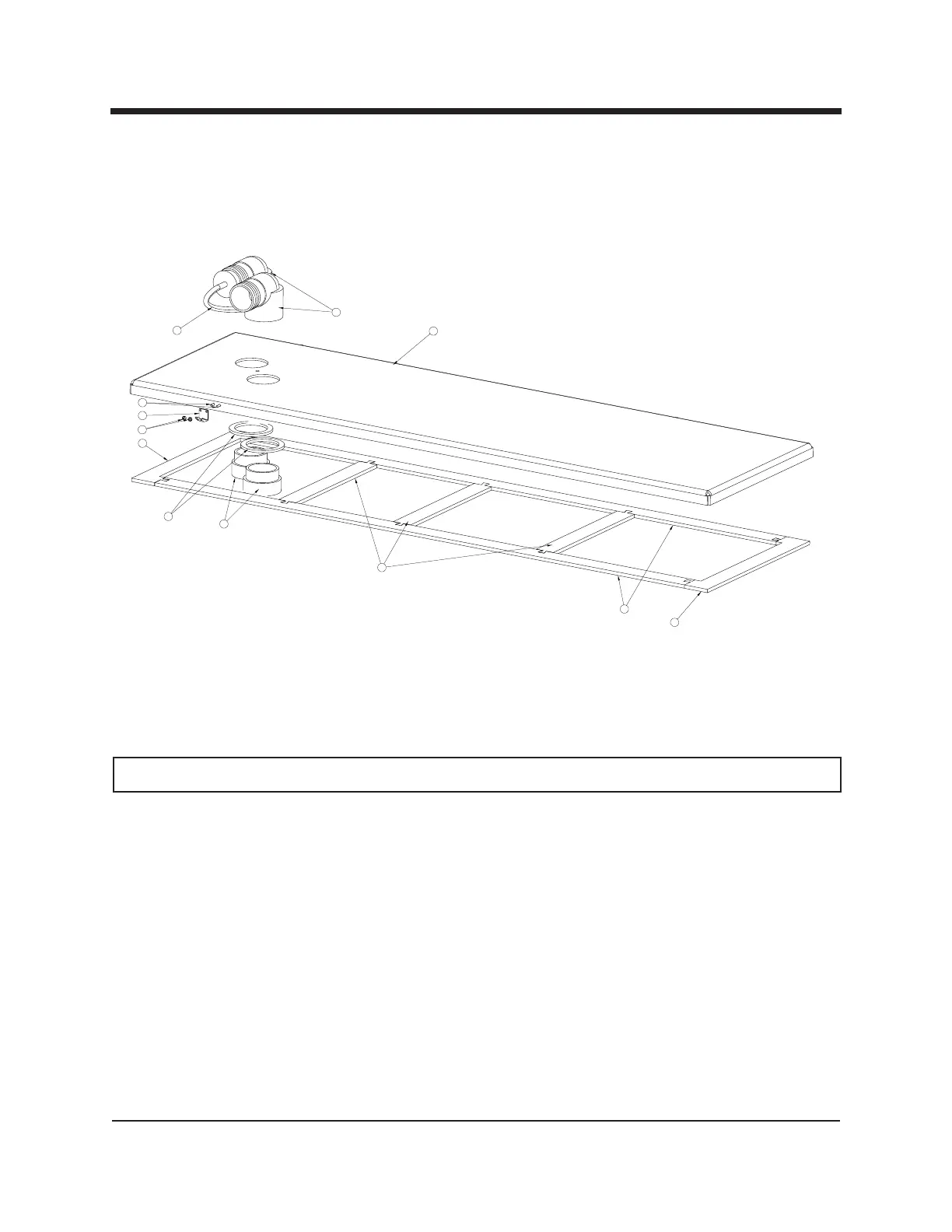

Figure 1-10 100 Gallon Universal Recovery Tank Cover Assembly
D-6919 Rev -
Item Part Number Description Qty
100 Gallon Universal Recovery Tank Cover Assembly Parts List
1 000-041-447 Cover, 100 Gallon Universal Recovery Tank - Weldment 1
2 000-078-039 Vacuum Inlet Stopper Assembly - Recovery Tank 1
3 000-057-015 Gasket, 1-1/2" Bulkhead Fitting 2
4 000-052-219 Adapter, 2" NPT x 2" F Slip 2
5 000-143-539 Screw, #6-32UNC x 0.50" Lg. Button Head Allen 2
6 000-086-008 Latch, Bungie - Strike 1
7 000-094-063 Nut, #6-32UNC Nylock 2
8 000-052-222 Elbow, 2" Barb x 2" FPT 2
9 000-057-202 Gasket, End - Recovery Tank 2
10 000-057-203 Gasket, Middle - Recovery Tank 3
11 000-057-205 Gasket, Side - Recovery Tank - 100 Gallon 2
8
2
1
7
6
3
4
9
10
11
9
5
