HydraMaster MAXX 450D - Fig; Chemical Pump Assembly

MAXX 450D/470/Diesel Page 1-51
HydraMaster Corporation

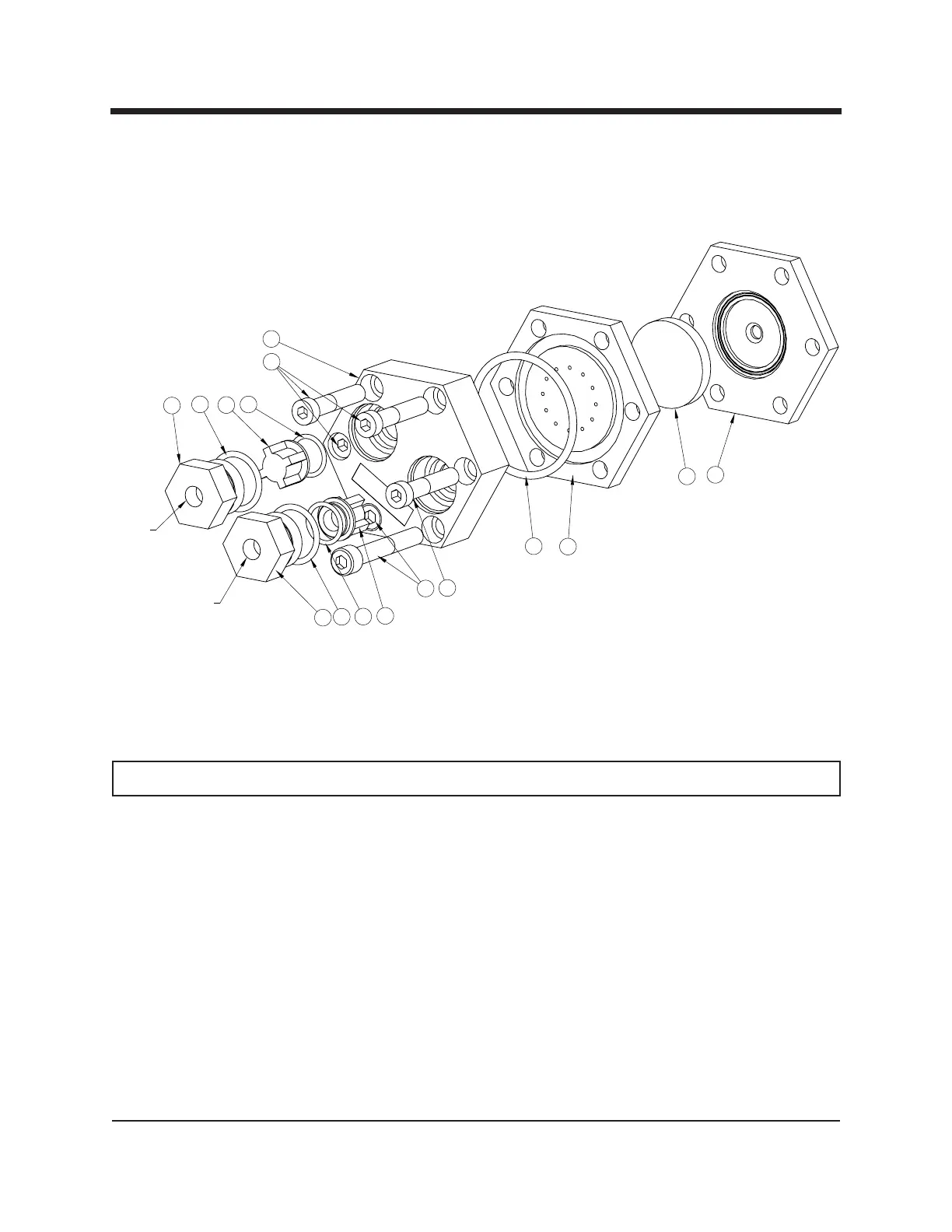

Figure 1-21 Chemical Pump Assembly
C-6555 Rev A
Item Part Number Description Qty
Chemical Pump Assembly Parts List
OUTLET
INLET
3
4
6
2
8
10
7
1
1
7
11
10
8
9
9
5
1 000-106-110 Plug, Check Valve - Chemical Pump 2
2 000-064-015 Cover, Chemical Pump 1
3 000-111-030 Body, Chemical Pump 1
4 000-105-071 Mid Plate, Chemical Pump 1
5 000-046-010 Diaphragm, Chemical Pump 1
6 000-097-055 O-Ring, Chemical Pump Midplate An Size -227 Viton 1
7 000-097-056 O-Ring, Check Valve Plug - Chemical Pump 2
8 000-169-155 Valve, Check, - Last Step Chemical Injection 2
9 000-143-152 Screw, 5/16"-24UNF x 1.50" Lg. Socket Head 4
10 000-097-054 O-Ring, Chem. Pump Valve Viton-Parker 2-114 2
11 000-143-574 Screw, 5/16"-24UNF x 2" Lg. Soc. Head Grade L9 2
