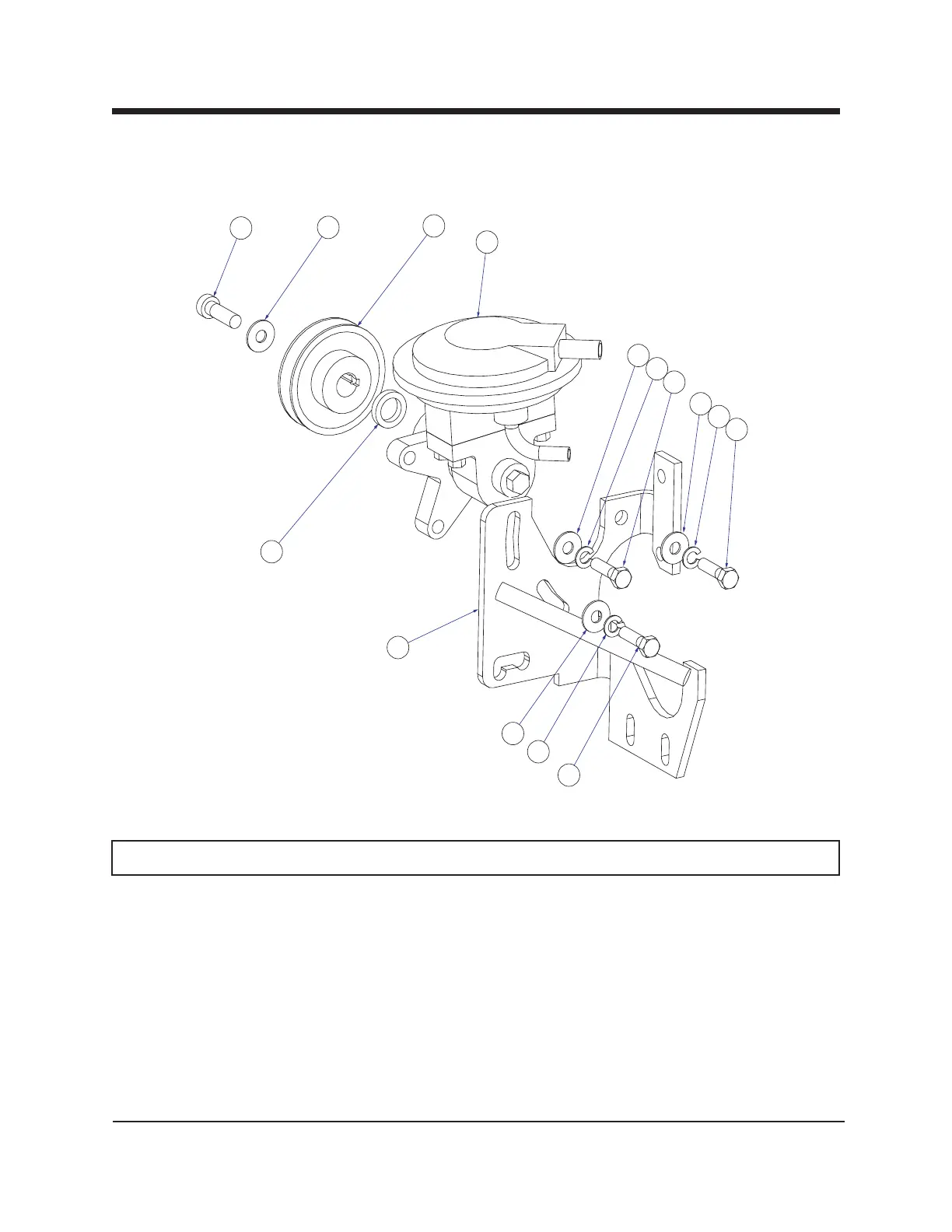

Figure 1-20 Air Pump Assembly
C-5383 Rev A
1 000-015-724 Bracket, Air Pump / Alternator Mounting 1
2 000-111-085 Pump, Air N/S 1
3 000-154-092 Spacer, Air Pump Pulley - 17mm Bore 1
4 000-109-083 Pulley, AK30 Mod. To 17mm Bore - Maxx 1
5 000-174-004 Washer, 5/16" Flat 4
6 000-143-029 Screw, 3/8"-16UNC x 1.25" Lg. Torx Plus Button Head 1
7 000-174-018 Washer, 5/16" Lock 3
8 000-143-083 Screw, 8mm x 30mm Lg. Grade 8 Hex Head 3
Item Part Number Description Qty
Air Pump Assembly Parts List
