HydraMaster MAXX 450D - Vacuum Relief Valve Assembly

Page 1-34 MAXX 450D/470/Diesel
HydraMaster Corporation
Item Part Number Description Qty
Vacuum Relief Valve Assembly Parts List

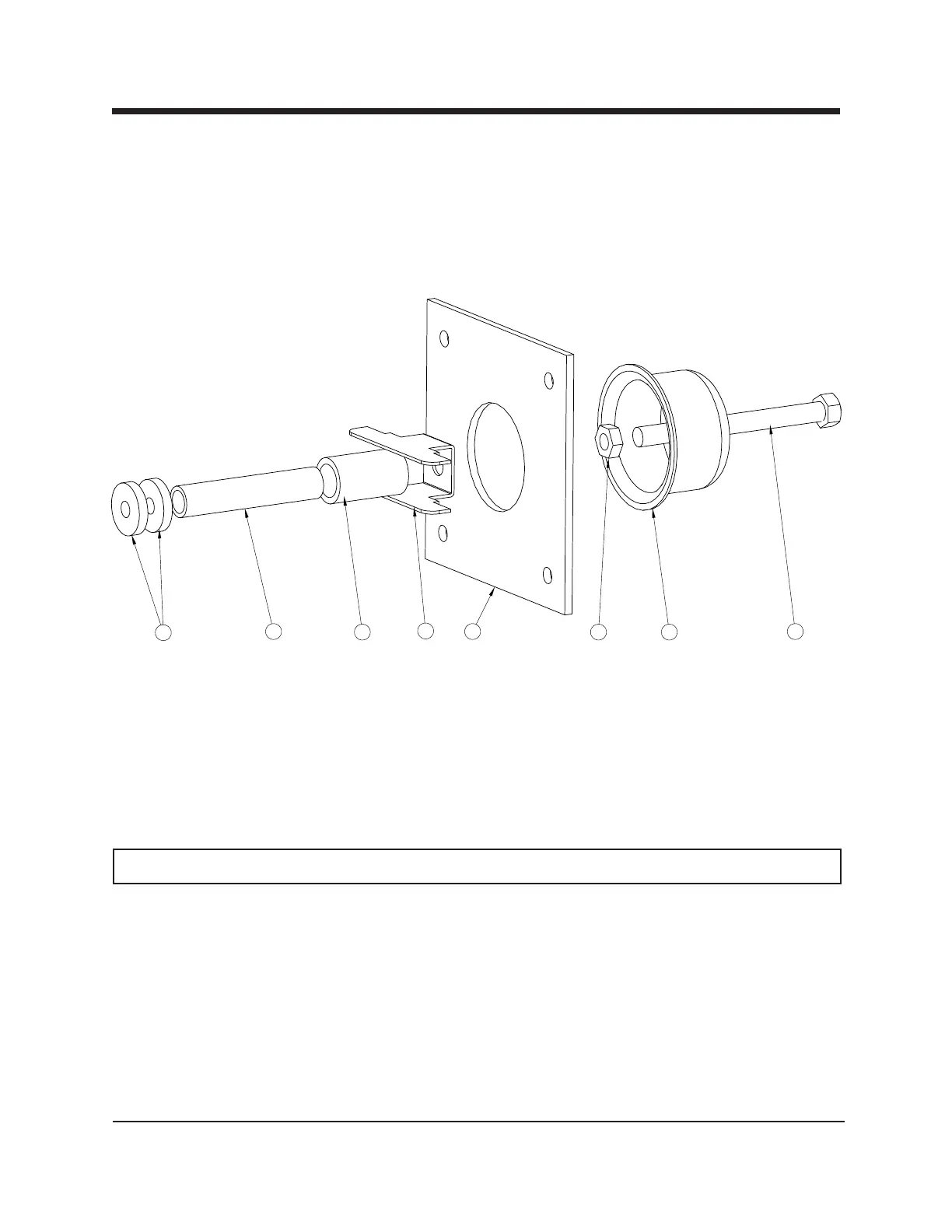

Figure 1-11 Vacuum Relief Valve Assembly
C-6894 Rev -
7
5
3
1
4
8 2
6
1 000-015-182 Bracket, Vacuum Relief Valve 1
2 000-027-032 Cap, Vacuum Releif Valve 1
3 000-125-111 Pipe, Vacuum Relief Spring Guide 1
4 000-105-332 Plate, Vacuum Relief Valve Mounting - Universal Recovery T 1
5 000-155-026 Spring, Vacuum Relief 1
6 000-143-198 Screw, 3/8"-16UNC x 4" Lg. Hex Head Full Thread 1
7 000-094-077 Nut, 3/8"-16UNC x 1.00" O.D. Knurled 2
8 000-094-101 Nut, 3/8"-16UNC Hex Jam 1
