Hypertherm HyDefinition HD3070 User Manual

6-4 HD3070 with Automatic Gas Console Instruction Manual
17
PARTS LIST
Power Supply – Front Exterior
Part
Item Number Description Designator Qty.
029946 HD3070 Enclosure SA 1
1 041246 PC BD assy, relay 1XPCB4 1
2 003113 Relay, DPDT, 12V Coil CRE 1
3 003142 Relay, DPDT, 120 VAC CRF, CRG 2
4 041349 Power source, 12V 2.1A 1
5 041752 PC BD assy, controller 1XPCB3 1
081077 Firmware 1
129307 Fan Assembly 1
6 027080 Fan, 225 CFM, 120 VAC, 50/60 Hz M2 1
027568 Fan Guard (not shown) 1
129308 Fan Assembly 1
7 027079 Fan, 450-550 CFM, 120 VAC, 50/60 Hz M4 1
027567 Fan Guard (not shown) 1

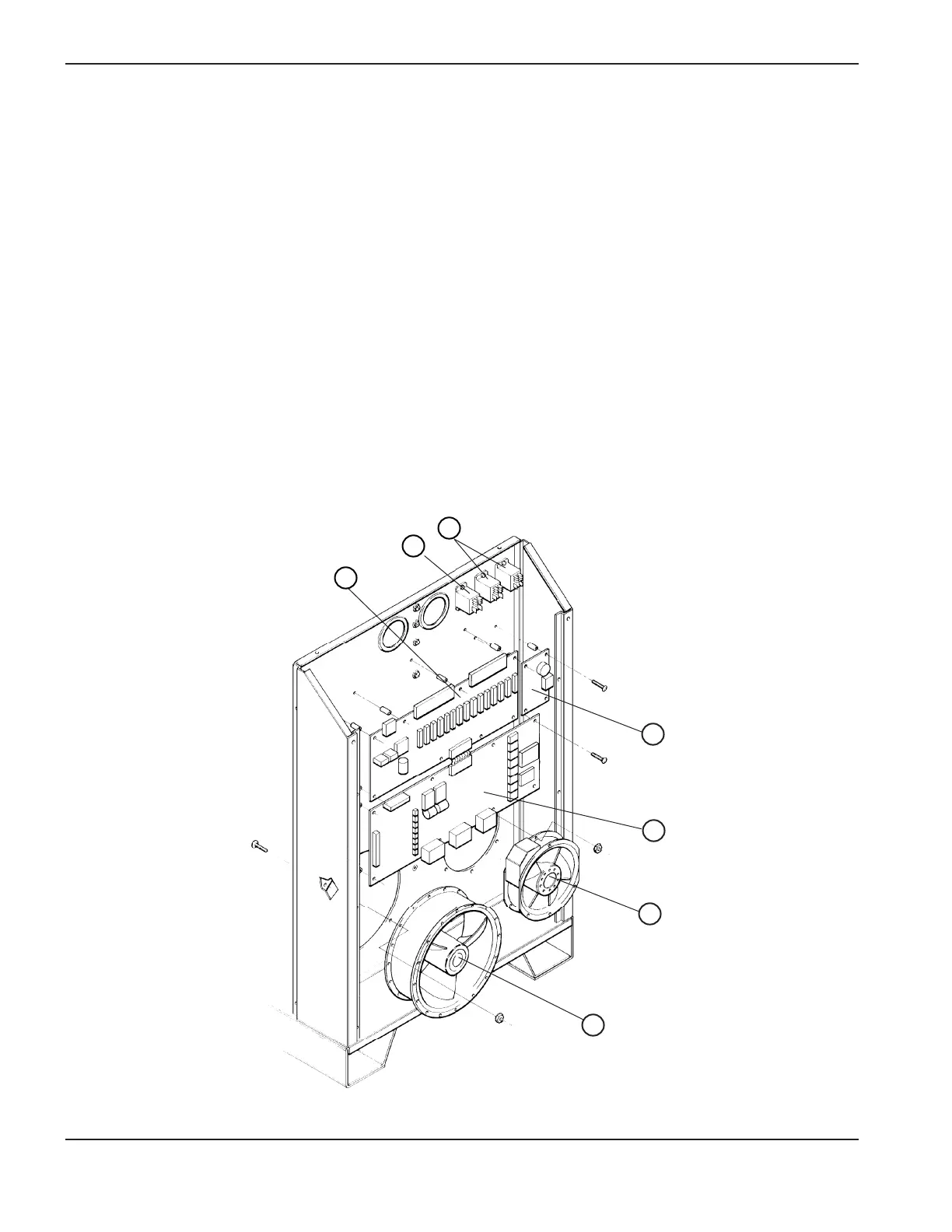

Figure 6-2 Power Supply – Front Exterior
1
2
3
4
5
6
7
