Hypertherm HySpeed HT2000LHF User Manual

Part
Item Number Description Designator Qty.
1 003138 Circuit Breaker, 2 Pole, 600V 20A CB1 1
2 003139 Contactor:90A 3P 120VAC CON1 1
3 029316* Incoming Power TB1 SA, MAX200 TB1 1
4 029422 Cont Transformer SA 200V/3
φφ
/50Hz T1 1
4 029441 Cont Transformer SA 208V/3
φφ
/60Hz T1 1
4 129311 Cont Transformer SA 240V/3
φφ
/60Hz T1 1
4 029362 Cont Transformer SA 400V/3
φφ
/50Hz T1 1
4 029713 Cont Transformer SA 440V/3
φφ
/50-60Hz T1 1
4 129312 Cont Transformer SA 480V/3
φφ
/60Hz T1 1
4 029404 Cont Transformer SA 600V/3
φφ
/60Hz T1 1
5 041534 PC BD Assy, Power Distribution PCB1 1
008322 Fuse:8A 250V 1/4 X 1-1/4 Slow F1,F2,F3 3
6 014080 Inductor, 4mh 100A L1 1
7 004262 Plate, Lift, MAX100 & 80 1
001601** Plate:CE/LVD Lift Eye 1
001602** Gasket:CE/LVD Lift Eye 1
* See Appendix D for location of 029316 on 400V CE power supplies.
** Items not shown in Figure 6-4
PARTS LIST
6-4 HySpeed HT2000LHF Instruction Manual
7

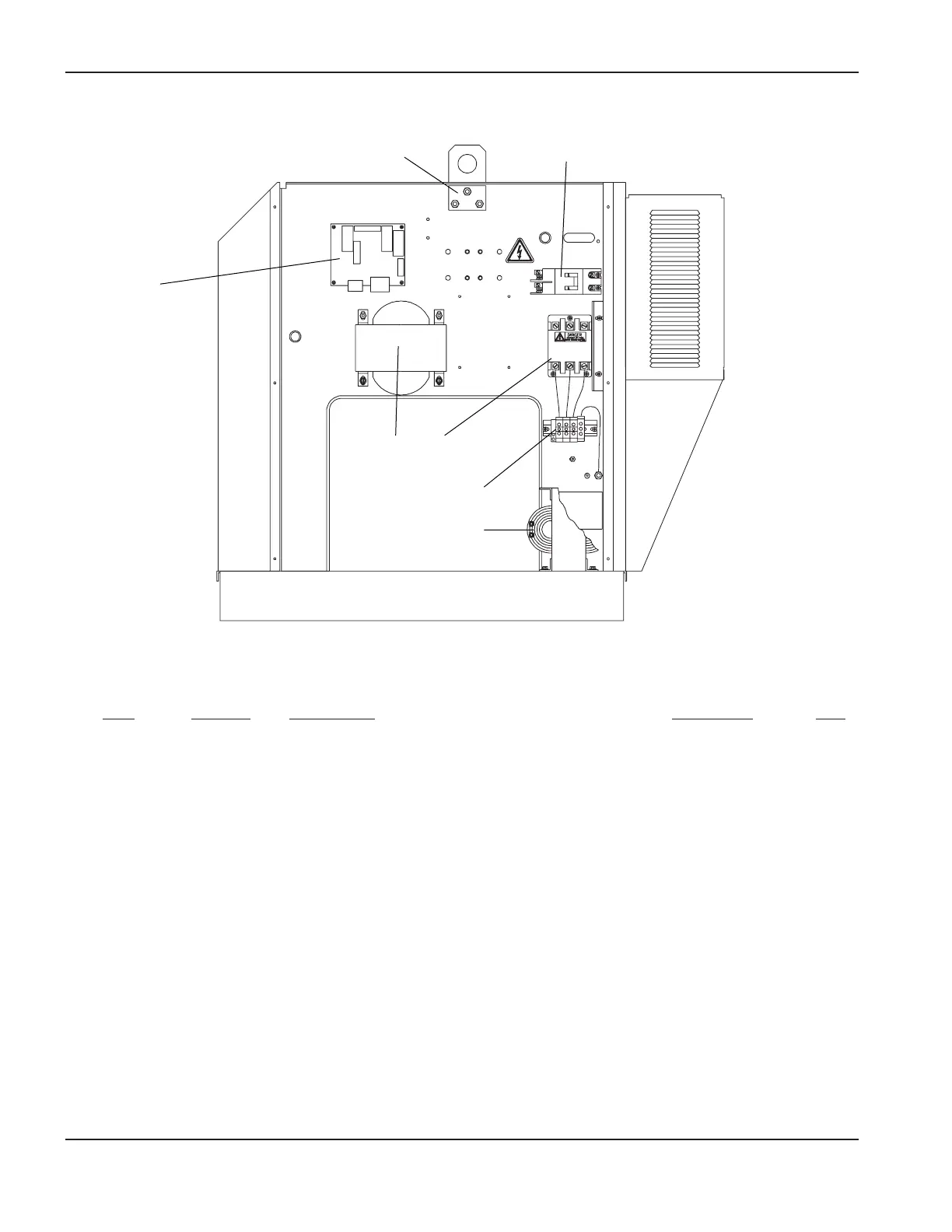

HT2000LHF Power Supply: Center Wall Right Side
Figure 6-4 HT2000LHF Power Supply – Center Wall Right Side
1
2
3
4
5
6
7
