INSTALLATION
3-20 HySpeed HT2000LHF Instruction Manual
6
Mounting the Machine Torch
1. Loosen the securing screws and install the machine torch (with torch leads attached) in the torch mounting
bracket. See Figure 3-6.
2. Position the torch until the torch body extends all the way through the bracket, so that the bracket is now around
the plastic torch sleeve and not touching the stainless steel torch body. Position the torch approximately 0.25" (6
mm) from the work surface.
3. Tighten the securing screws.
Torch Alignment
Prior to cutting with the machine torch, ensure that the torch is at right angles to the workpiece to get a clean,
vertical cut. Use a square to align the torch. The torch should be aligned at 0° and 90°. See Figure 3-6.
Securing screws
Torch sleeve
Torch mounting
bracket

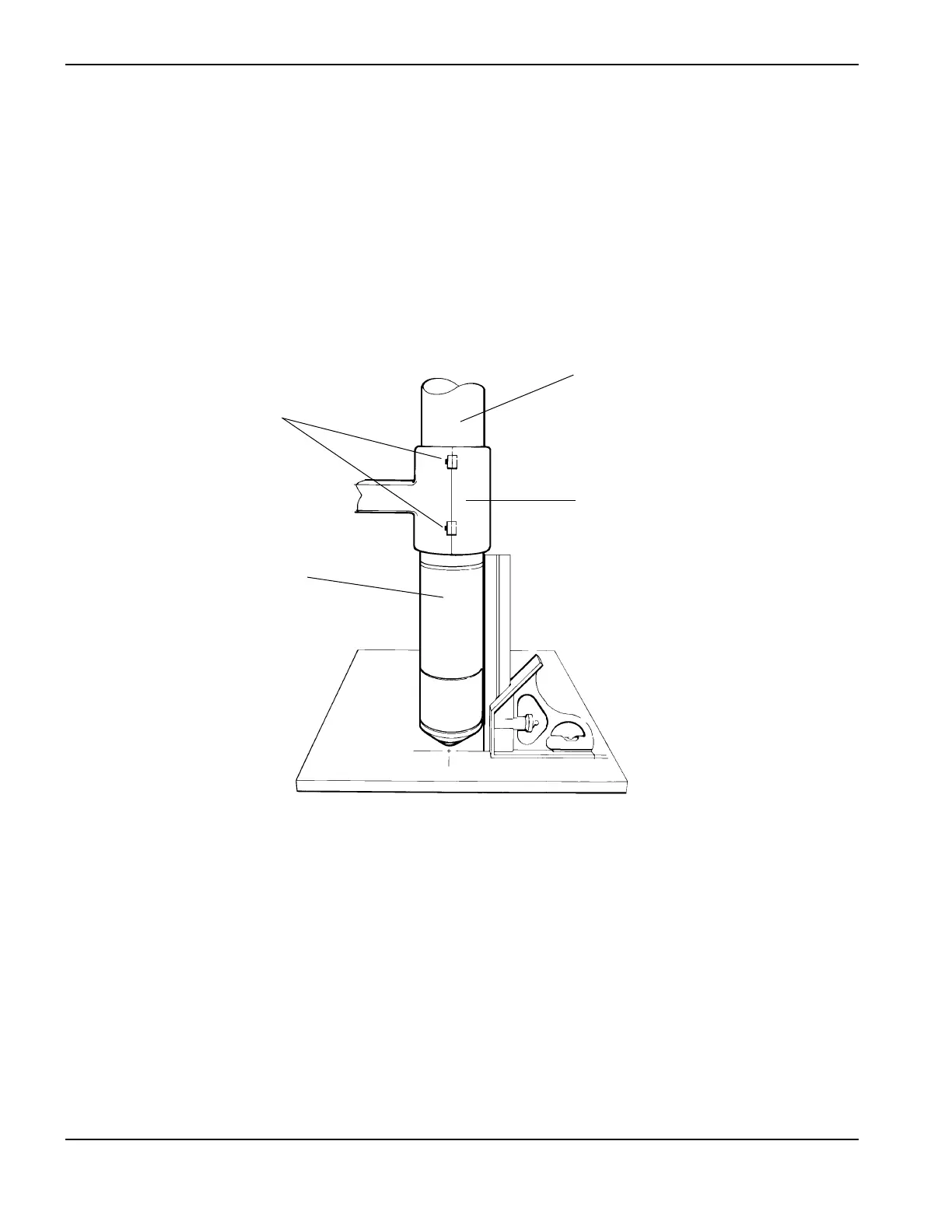

Figure 3-6 Torch Alignment
Torch (typical)
