PARTS LIST
HySpeed HT2000LHF Instruction Manual 6-13
6
Argon-Hydrogen Manifold

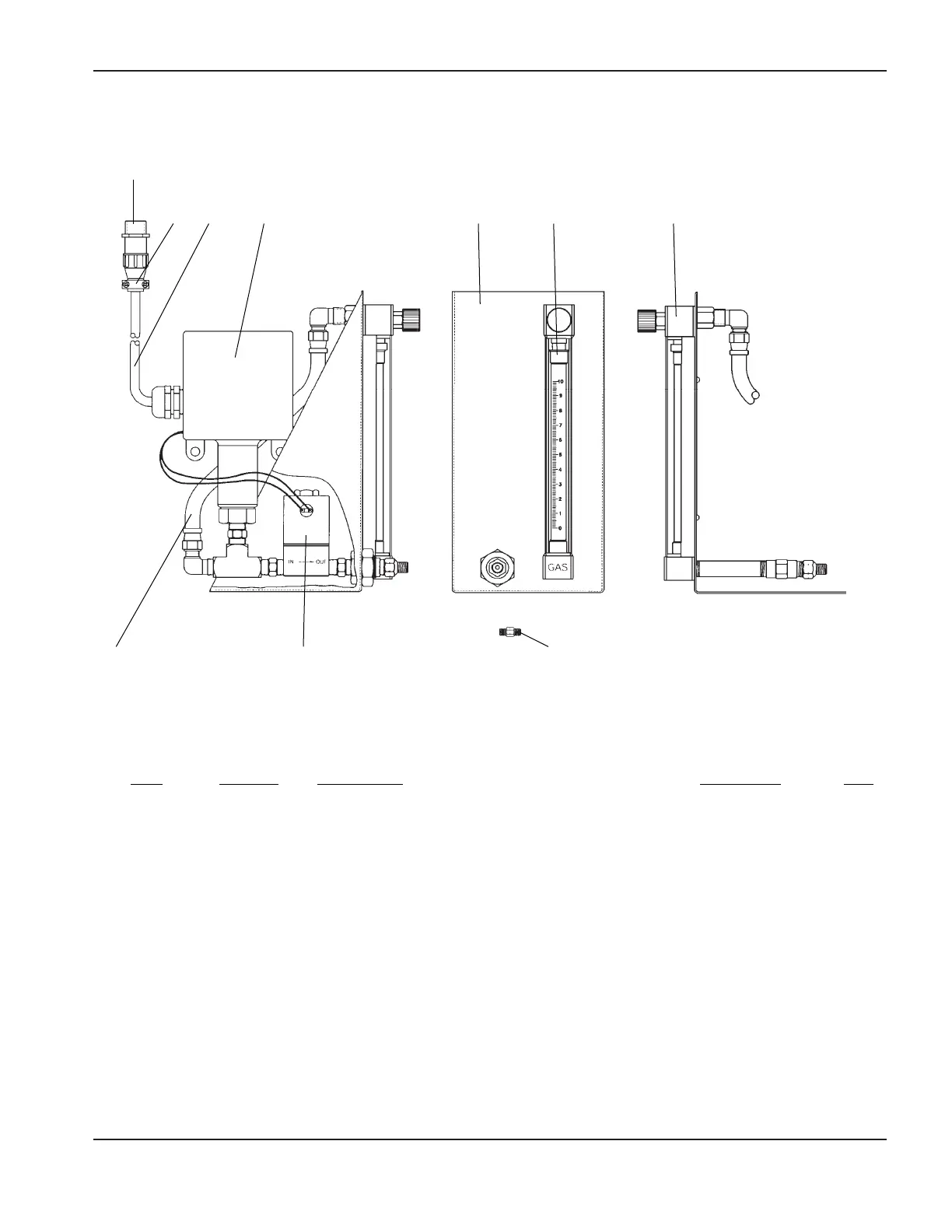

Figure 6-13 Argon-Hydrogen Manifold
1 2 2
3
4
5
6
7, 8
9
10
Part
Item Number Description Designator Qty.
073109 Argon-Hydrogen Manifold 1
1 002050 Bracket: Ar/H2 Manifold 1
2 011005 Flowmeter: 0-10 SC/BT-8 w/valve FM1 1
3 024143 Hose Assy, #4 X 9" 1
029831 Manifold SA: 073109 H35 Manifold 1
4 005046 Pressure Switch: 0-200 1/4FPT PS1 1
5 006009 Solenoid Valve:200# 1/4FPT 120V NC SV5 1
023702 Cable: HT2000 H35 Manifold Press. Sw. 1
6 008195 CACLP:CPC Size 11 1
7 008205 Pin: 18-16 AWG Type III + CRP 4
8 008807 Receptacle Shell:CPC 11-4 14X1 1
9 047055 Cable, 18-2 TW PR, Unshielded 6 ft
10 015049 Connector: LH Male Brass 1
