Hypertherm HySpeed HT2000LHF User Manual

SPECIFICATIONS
HySpeed HT2000LHF Instruction Manual 2-5
6
Digital Remote Voltage & Current
Control Console
Controls....................Voltage adjust potentiometer: Adjusts arc
cutting voltage and displays value on LEDs.
Current adjust potentiometer: Adjusts arc
current and displays value on LEDs.
Control range ...........Current: 40-200 amps/Voltage: 100-200 volts
Control resolution.....Current: 10 amps/ Voltage: 5 volts
Dimensions and Weight:
Width .......................................................11.4" (290 mm)
Height......................................................3" (76 mm)
Depth.......................................................13.4" (340 mm)
Weight .....................................................5.3 lbs (2.4 kg)
Programmable Remote Voltage & Current
Control Console
Controls....................None. Controlled through guidance CNC.
Control range ...........Current: 40-200 amps/Voltage: 100-200 volts
Control resolution.....Current: 10 amps/ Voltage: 5 volts
Dimensions and Weight:
Width .......................................................11.4" (290 mm)
Height......................................................3" (76 mm)
Depth.......................................................12.5" (318 mm)
Weight .....................................................5.3 lbs (2.4 kg)
Remote Current Control Console
Dimensions and Weight:
Width .......................................................6-1/2" (165 mm)
Height......................................................2-1/2" (64 mm)
Depth.......................................................8-5/8" (219 mm)
Weight .....................................................3 lbs (1 kg)
10.5" (267 mm)
11.4" (290 mm)
7/32"
(5.5 mm)
dia.
4 places
11.65" (296 mm)
5"
(127 mm)
0.5"
(13 mm)

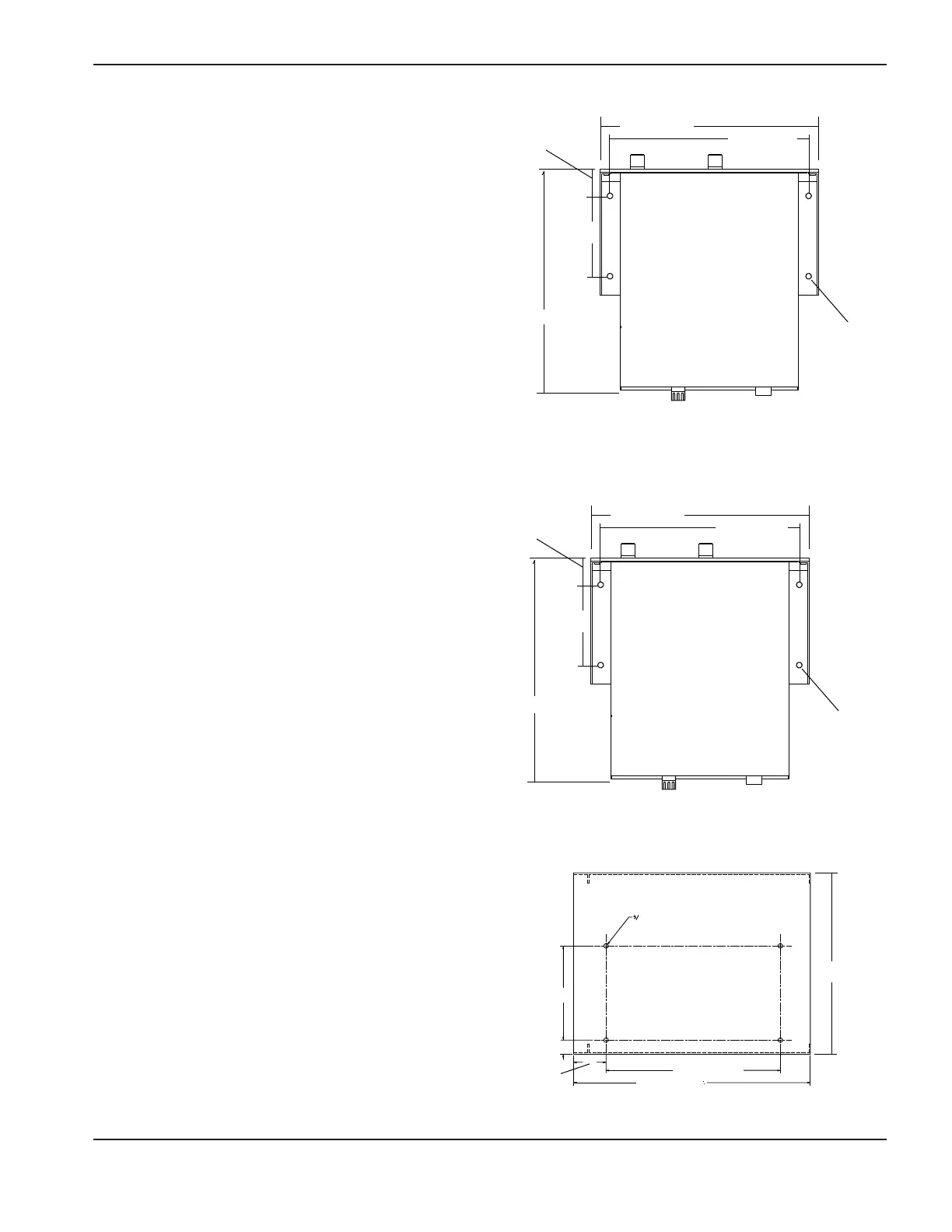

Figure 2-4 Mounting Dimensions – Digital
Remote Voltage & Current Control Console
10.5" (267 mm)
11.4" (290 mm)
7/32" dia.
(5.5 mm)
4 places
11.65" (296 mm)
5"
(127 mm)
0.5"
(13 mm)
Figure 2-5 Mounting Dimensions – Programmable
Remote Voltage & Current Control Console
Figure 2-6 Mounting Dimensions –
Remote Current Control Console
5/32" ø (4 mm) – 4 places
3.38" (86 mm)
6.25" (159 mm)
8.5" (216 mm)
0.50" (13 mm)
1.17"
(30 mm)
6.50"
(165 mm)
