SPECIFICATIONS
2-6 HySpeed HT2000LHF Instruction Manual
6
Initial Height Sensing (IHS) – Optional
Input power .............................................120VAC from power supply
Air pressure.............................................20 psi (1.4 bar) regulated
shop air input to solenoid
Dimensions and Weight:
Width .......................................................9" (229 mm)
Height......................................................4.5" (114 mm)
Depth.......................................................11.5" (292 mm)
Weight .....................................................13 lbs (6 kg)
Timer/Counter – Optional
Dimensions and Weight:
Width .......................................................6-1/2" (165 mm)
Height......................................................2-1/2" (64 mm)
Depth.......................................................8-5/8" (219 mm)
Weight .....................................................3 lbs (1 kg)
Water Muffler – Optional
Refer to the Water Muffler Instruction Manual 802050. The water muffler cannot be used with the stainless steel
torch.
CommandTHC – Optional
Refer to the CommandTHC Instruction Manual 802780.
6" (152 mm)
8" (290 mm)
5/16" dia.
(8 mm)
4 places
11.5"
(292 mm)
10.75"
(273 mm)

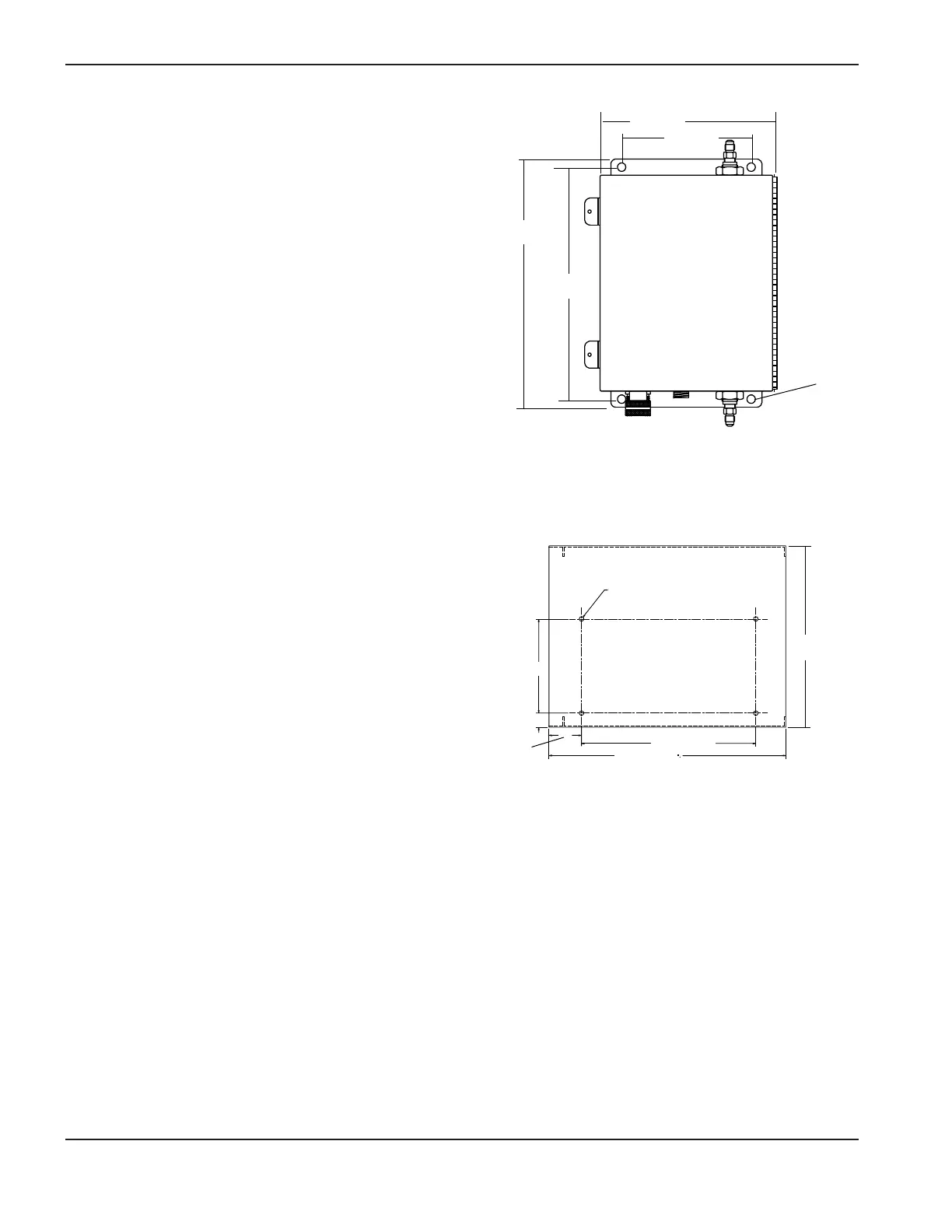

Figure 2-7 Mounting Dimensions – IHS
Figure 2-8 Mounting Dimensions – Timer/Counter
5/32" ø (4 mm) – 4 places
3.38" (86 mm)
6.25" (159 mm)
8.5" (216 mm)
0.50" (13 mm)
1.17"
(30 mm)
6.50"
(165 mm)
