Hypertherm HySpeed HT2000LHF User Manual

PARTS LIST
6-12 HySpeed HT2000LHF Instruction Manual
6
Part
Item Number Description Designator Qty.
053016 Control Console, IND IHS, HT400
1 002095 Encl., Control Console UW-IHS 1
2 006021 Valve, SOL 75# 1/4 NPTF 1
3 008073 Terminal Strip (16) 1
4 008071 Strain Relief, 1/2 X .375-.500 1
5 008175 Receptacle, Shell Size 13-9 1
6 008176 Pin, 20-24 AWG Type III+ 7
7 008186 Socket, 20-24 AWG Type III+ 8
8 008210 Receptacle, 11-4 2
9 009041 Filter, AC, 1 Amp 1B3 1
10 024038 Hose Assy, #4 x 7" 1
11 041043 PC BD Assy UW-IHS 1
12 041023 Power Source, IHS 1
13 008094 Terminal Strip (8) 1
Initial Height Sensing Control Console

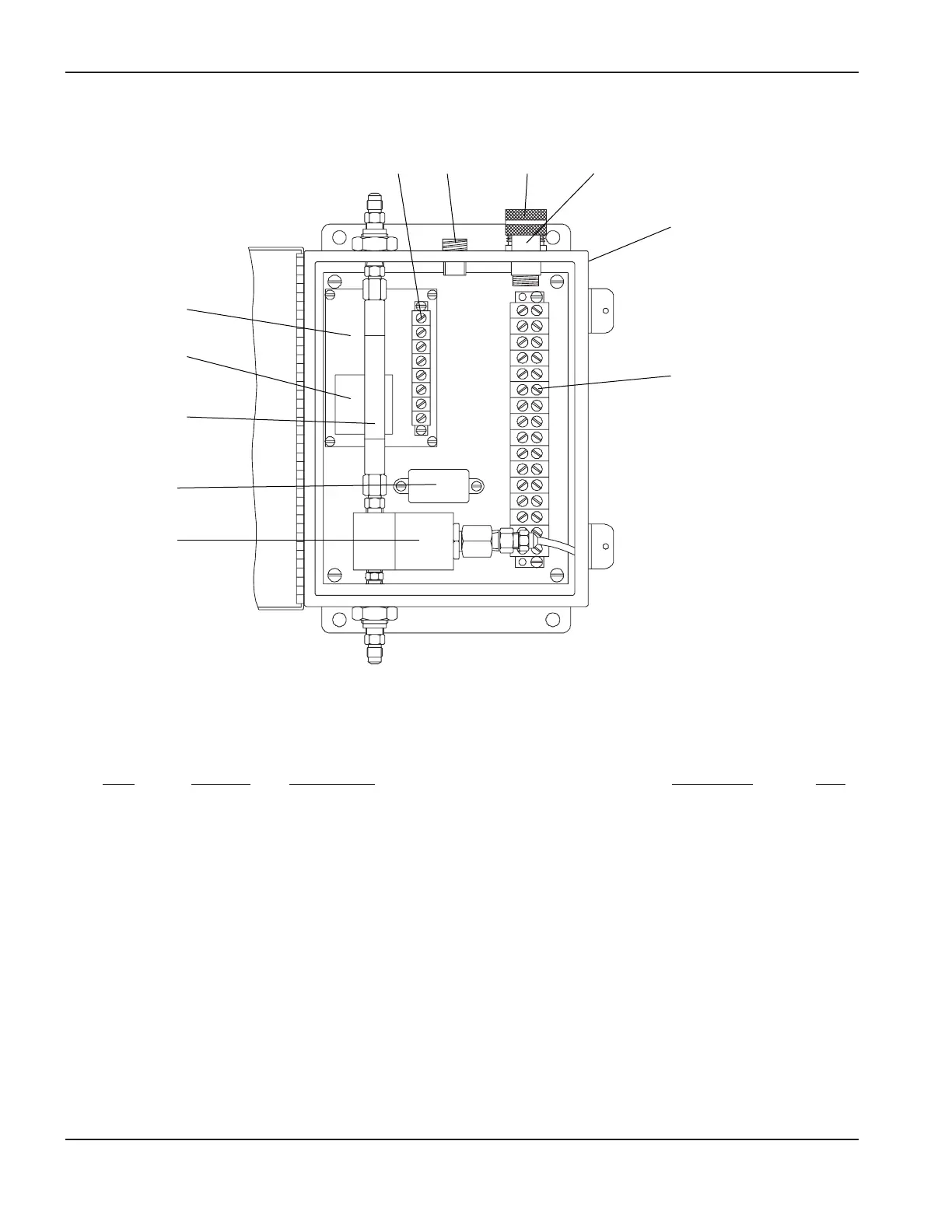

Figure 6-12 Initial Height Sensing Control Console
1
2
3
4 5, 67, 8
9
10
11
12
13
