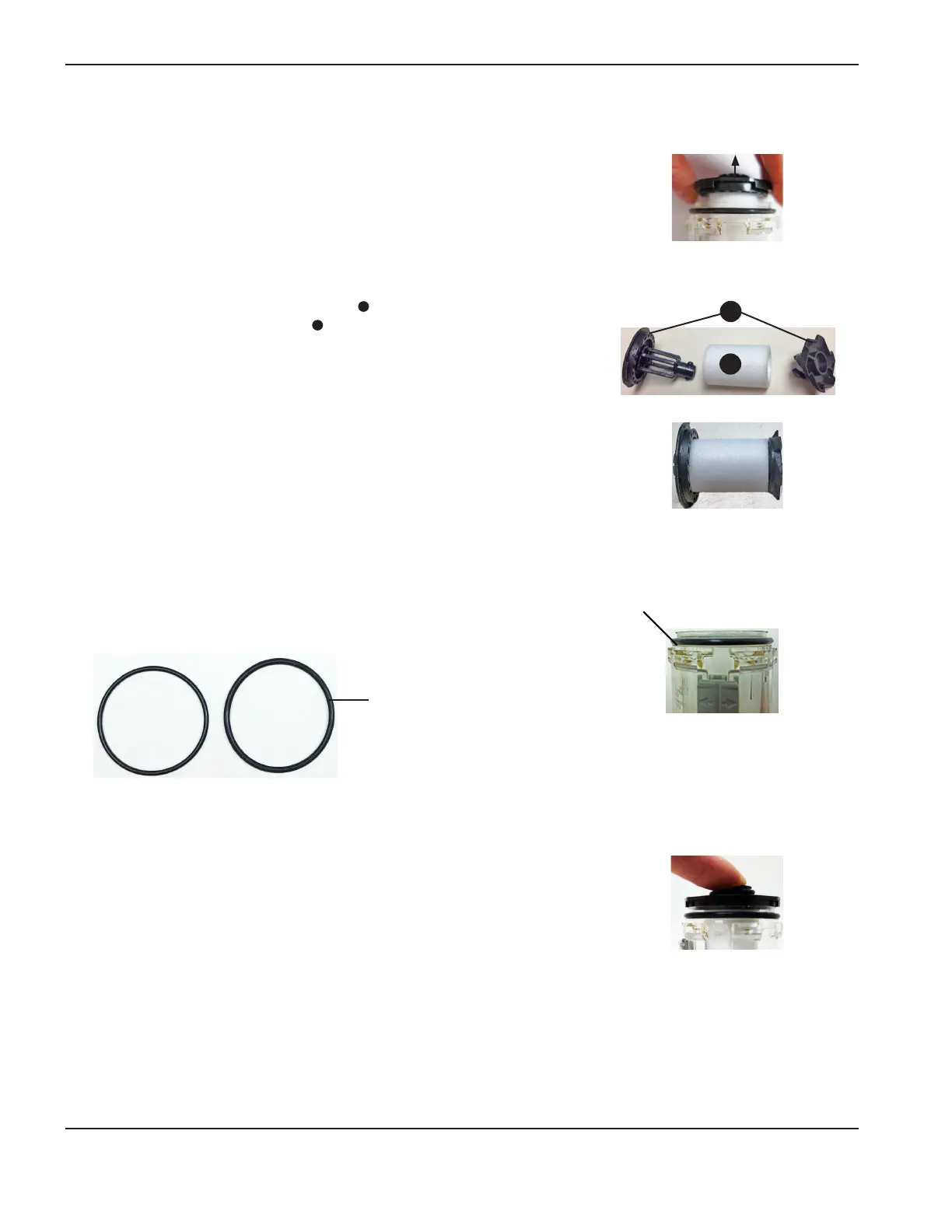

Install the air filter element (for plastic or nylon bowl)
5. Twist and pull up on the black element retainer at the top of the filter bowl.
6. Gently twist the black element retainers
1
until they come apart and you can
remove the dirty air filter element
2
from them.
1
2
7. Twist the element retainers until they lock together and fit snugly against the
new element.
Note: If the black element retainers are damaged, order a new air
filter assembly in kit428351.
8. If you are not replacing the air filter bowl:
• Install the thicker O-ring in kit228695 onto the existing filter bowl.
Use thicker O-ring
• Clean the bowl by wiping away any oil, dirt, or other contaminants.
O-ring
9. Place the air filter element in the filter bowl. Twist the filter element’s top
plastic part until it fastens securely to the top of the filter bowl.
Note: To install the air filter bowl, skip to step10 on page 8-14.
