100 MX3630-01 Rev. J SlideDriver/SlideDriver 50VF Series © 2019 www.hysecurity.com
B
ENTER
EXIT
A
PUBLIC SIDE
SECURE SIDE
C
D
2
3
1
DIMENSIONS
A = width of roadway*
*Reective photo eyes can only
be used if “A” is less than 24 ft.
(7.3 m)
Select appropriate distances
between B, C, and D to make
sure vehicles remain detected
within the photo eye zones.
Placement of
photo eyes if
used for vehicle
detection
Placement of
photo eyes if
used for vehicle
detection
Placement of
photo eyes if
used for vehicle
detection
FREE EXIT
INSIDE OBSTRUCTION
(Reversing loop)
OUTSIDE OBSTRUCTION
(Reversing loop)
ACCESS CONTROL
DEVICE
Photo eye pair monitored as external entrapment protection sensors

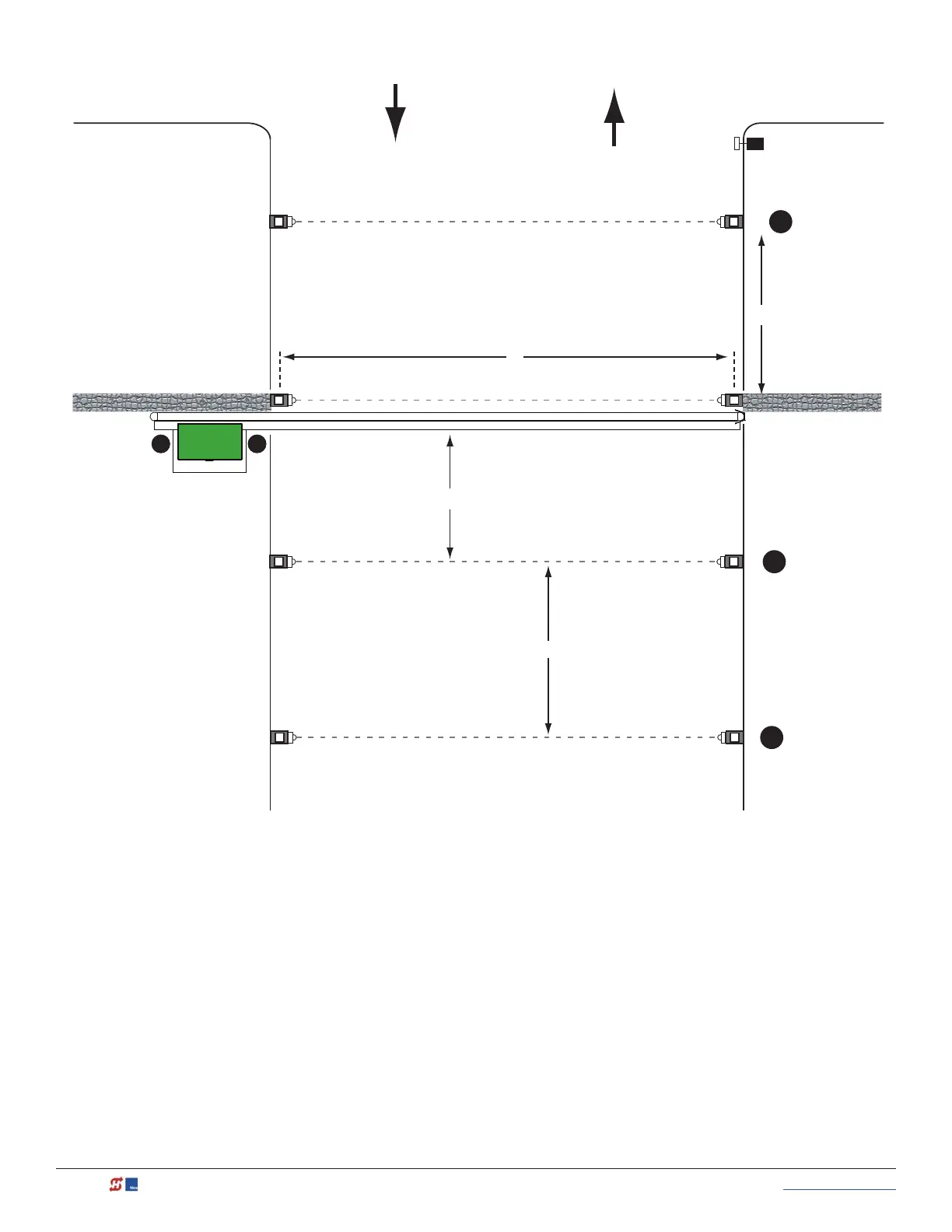

This layout illustrates a bi-
directional trafc system with
controlled access entry (card
reader, radio control, etc.) and
photo eyes used for vehicle
detection.
The gate’s closure time is
determined by the number of
seconds entered in the CLOSE
TIMER (CT) User Menu item.
The timer is adjustable from 1
to 99 seconds.
The timing to close starts when
all photo eyes are clear.
