44 MX3630-01 Rev. J SlideDriver/SlideDriver 50VF Series © 2019 www.hysecurity.com

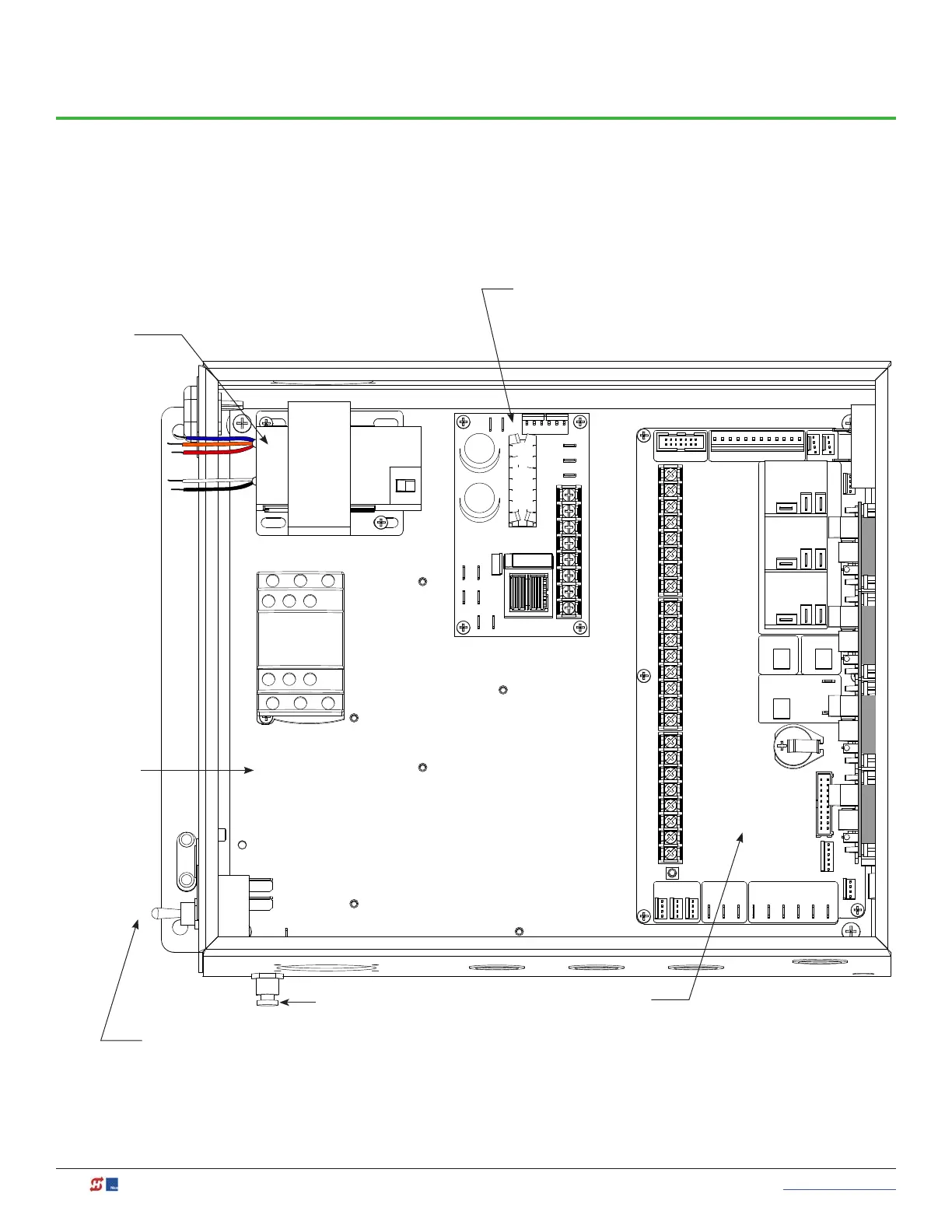

Control Panel Overview
This section provides an overview of the electrical controls found in your gate operator. The illustrations
highlight the various components and describe their function. Each callout explains where to nd more
information about the component.
SlideDriver Models: All, except 50VF-series
Transformer:
Provides the connections for AC power and steps
down the voltage to 24VAC. For more information,
refer to Control Transformer Connections (Non-UPS) on
page 26.
Power Supply Board
Provides common and 24VAC & 24VDC terminals.
Refer to Overview of the STC and Power Supply
Board on page 69.
Power Switch
Reset Switch
Smart Touch Controller:
Provides inputs for peripherals and accessories, 2
electromechnical user relays (250VAC, 10A), one solid
state user relay (30VDC, 3A). For more information, refer
to STC Terminal Inputs on page 71.
Control Box
To Next Page
