HySecurity SlideDriver 30F User Manual

SlideDriver 15, 30F, 40, 80, 200

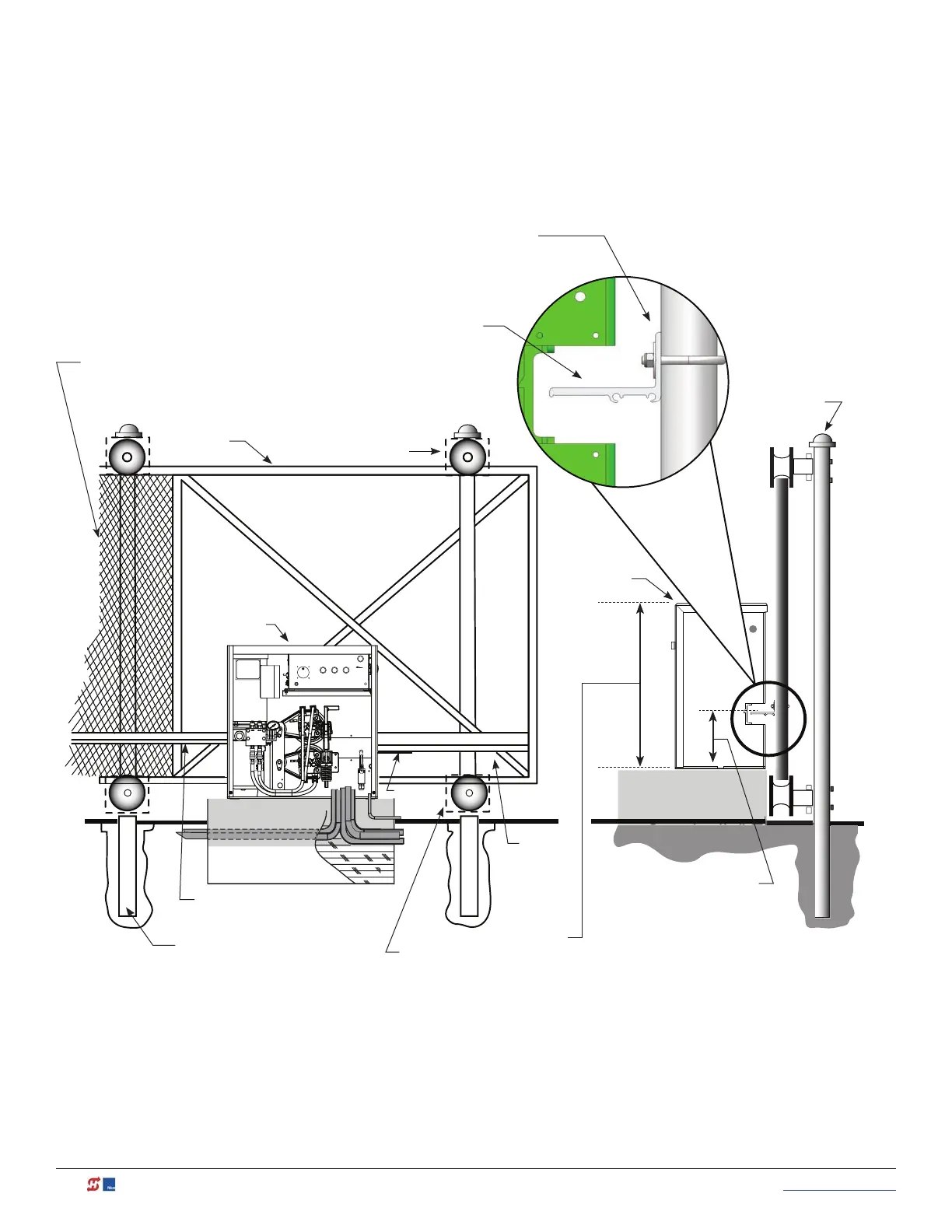

SlideDriver 50VF Site Installation Overview
iv MX3630-01 Rev. J SlideDriver/SlideDriver 50VF Series © 2019 www.hysecurity.com
Gate Face*
Use shims as needed
Grooved Drive Rail
Gate
Wheel Cover
Support Post
SlideDriver
Height from top of
Drive Rail* to bottom
of gate operator.
All models:
9¼" (23.5cm) using
All models:
(except SD 200)
26" (66cm)
SlideDriver 200:
43¼" (109.5cm)
Wheel Cover
Drive Rail
Support Post
Concrete Pad
SlideDriver
For clarity, safety mesh
is not shown
Drive
Rail
Screen Safety Mesh on Gate Height: Per UL 325 and ASTM
F2200, all openings in a sliding gate up to a 72-inch (6 foot or
183 cm) height must be guarded or screened.
standard
AdvanceDrive™ wheels, 6 or 8 inch.
*NOTE: using XtremeDrive
™
wheels, adjust
height along the length of the Drive Rail by
¼ to ½ inch which increases overall height
between 9¾ and 10 inches (24 to 25 cm).
Limit
Ramp
