Dual or Sequenced Gates: Power, Software & Accessory Requirements
When installing an interlocked pair, the following must be adhered to:
• An electrical conduit for interconnecting wires must span between the two operators. The interlock
(dual gate) communication wires and any low voltage control wires must be installed in a conduit that
is separate from the high voltage power cables.
• Both operators must have their own dedicated 20A circuit breaker in the main panel. The wire size
affects operator performance.
• Complete the installation of both operators as separate machines and verify that their basic functions
are correct as solo operators before interconnecting them.
• Be sure both operators are running the same software version. The software version is available on the
display by pressing the RESET button on the operator. The software version appears beneath the word
HYSECURITY. Keep the most current software loaded. It is available at www.hysecurity.com. Make it
part of your maintenance routine to check for software upgrades on a regular basis.
• External control inputs (vehicle detectors and external entrapment protection sensors) may
be connected to either gate operator in a Primary/Secondary conguration, but in a Sally Port
conguration, the external control inputs must be connected to each controller as only one gate is
allowed to be off the open limit at a time.
NOTE: If using the Hy8Relay, connect it to the dual gate spades on the Primary controller.

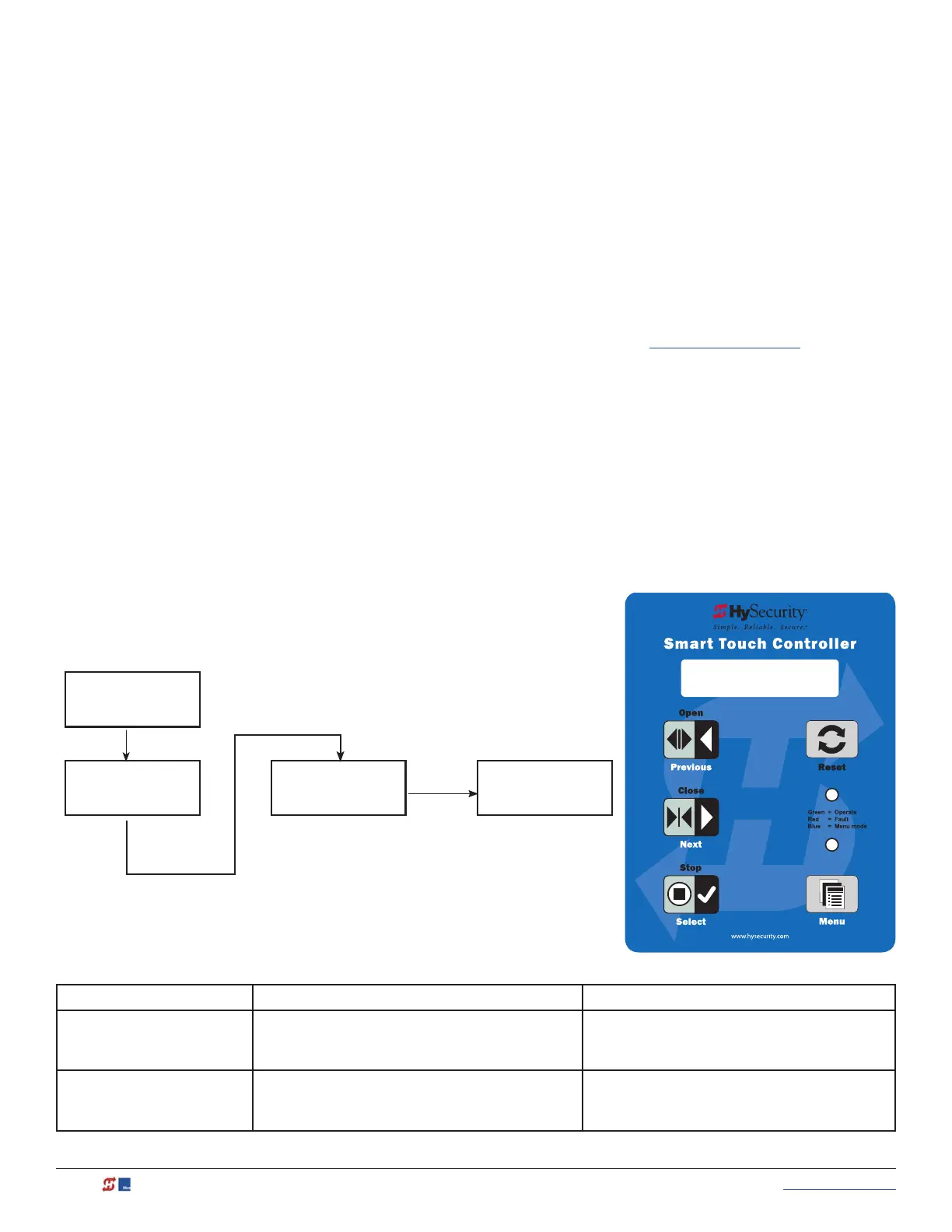

Programming a Dual Gate (Interlocked Pair)
Both gate operators must be programmed so they know what function they are to perform as Primary and
Secondary or Sally Port A and Sally Port B. (Sally Port A being the rst
gate to open for incoming trafc.) The Installer Menu provides the Dual
Gate (DG) menu item that sets up the functionality of the gate
operators. Access this menu item by taking the following steps:
Status Display
User Menu
CT 0 or HC 1
Installer Menu Dual Gate
FD 0 DG 0
Press Menu twice at
the gate status display.
To access the Installer Menu,
press and hold Reset & Open,
and then release them.
Press Next until DG
characters appear.
Press Select so DG
characters blink.
Press Next to change
the display. Refer to
chart below.
Refer to the table below to set the operator’s functionality.**
**Interlocked Gate type Operator 1 (Primary) Operator 2 (Secondary)
Sally Port
1. Press Next until DG 3 appears on the display.
2. Press Select to establish the operator as
Sally Port A.
1. Press Next until DG 4 appears on the display.
2. Press Select to establish the operator as
Sally Port B.
Primary / Secondary
1. Press Next until DG 2 appears on the display.
2. Press Select to establish the operator as
Primary.
1. Press Next until DG 1 appears on the display.
2. Press Select to establish the operator as
Secondary.
DG 0 (OFF)
DUAL GATE
