Special Precautions 1900 SRM 964
1. POSITIVE CONNECTION
2. NEGATIVE CONNECTION
3. JUMPER WIRES
4. 200-OHM, 2-WATT RESISTOR

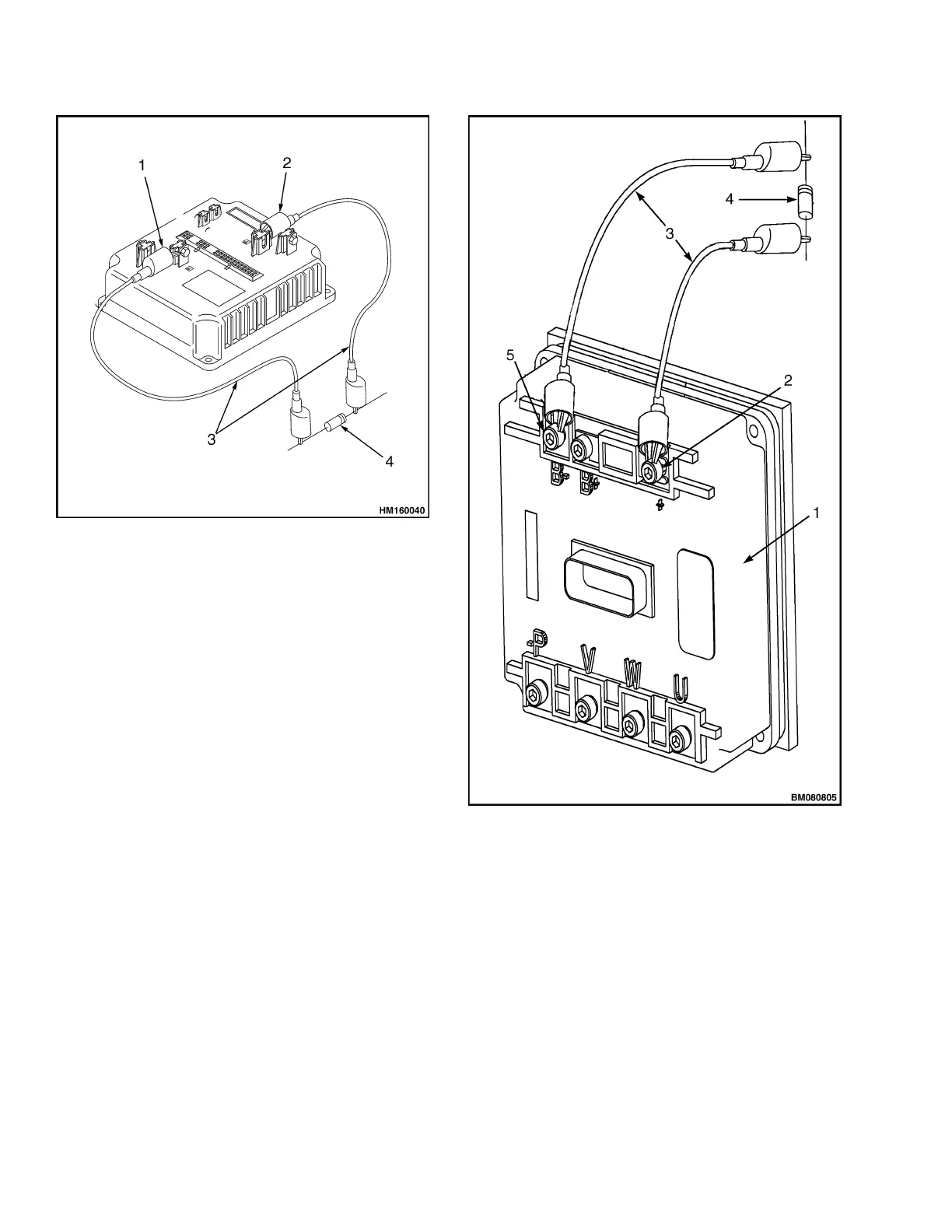

Figure 4. Discharging the Capacitors (B60Z,
B80Z, C60Z, C80Z, W60Z, W65Z, and W80Z)
1. POSITIVE CONNECTION
2. NEGATIVE CONNECTION
3. JUMPER WIRES
4. 200-OHM, 2-WATT RESISTOR
Figure 5. Discharging the Capacitors (B60Z
AC
,
B80Z
AC
,C60Z
AC
, and C80Z
AC
)
