Lift Pump and Motor 1900 SRM 964
Install Reservoir to Pump
NOTE: If only the reservoir has been removed, per-
form Step 3 through Step 7.
1. Place reservoir in an upright position on the
workbench.
2. Install breather/filler cap to reservoir.
NOTE: The reservoir may be filled at this point or it
may be filled after the lift pump and motor assembly
have been installed.
3. Fill the hydraulic reservoir to proper level. See
Hydraulic Reservoir, Table 1.
4. Install O-ring seal on pump assembly. If neces-
sary, use a small amount of grease to hold the
O-ring seal in position.
5. Position lift pump and motor assembly onto the
reservoir.
6. Install two piece clamp to reservoir and pump
assembly.
7. Install four capscrews and torque to 8 N•m
(71 lbf in).
INSTALL
Lift Pump and Motor Assembly
1. Align the lift pump and motor assembly with the
mounting holes in the frame.
2. Apply Loctite
®
242 to the threads of the mount-
ing capscrews. Install three capscrews with lock-
washers and torque to the proper torque. See
Figure 12.
3. Install hydraulic hoses to lift pump and motor
assembly.
4. Connect power wires and control wires to lift
pump and motor assembly.

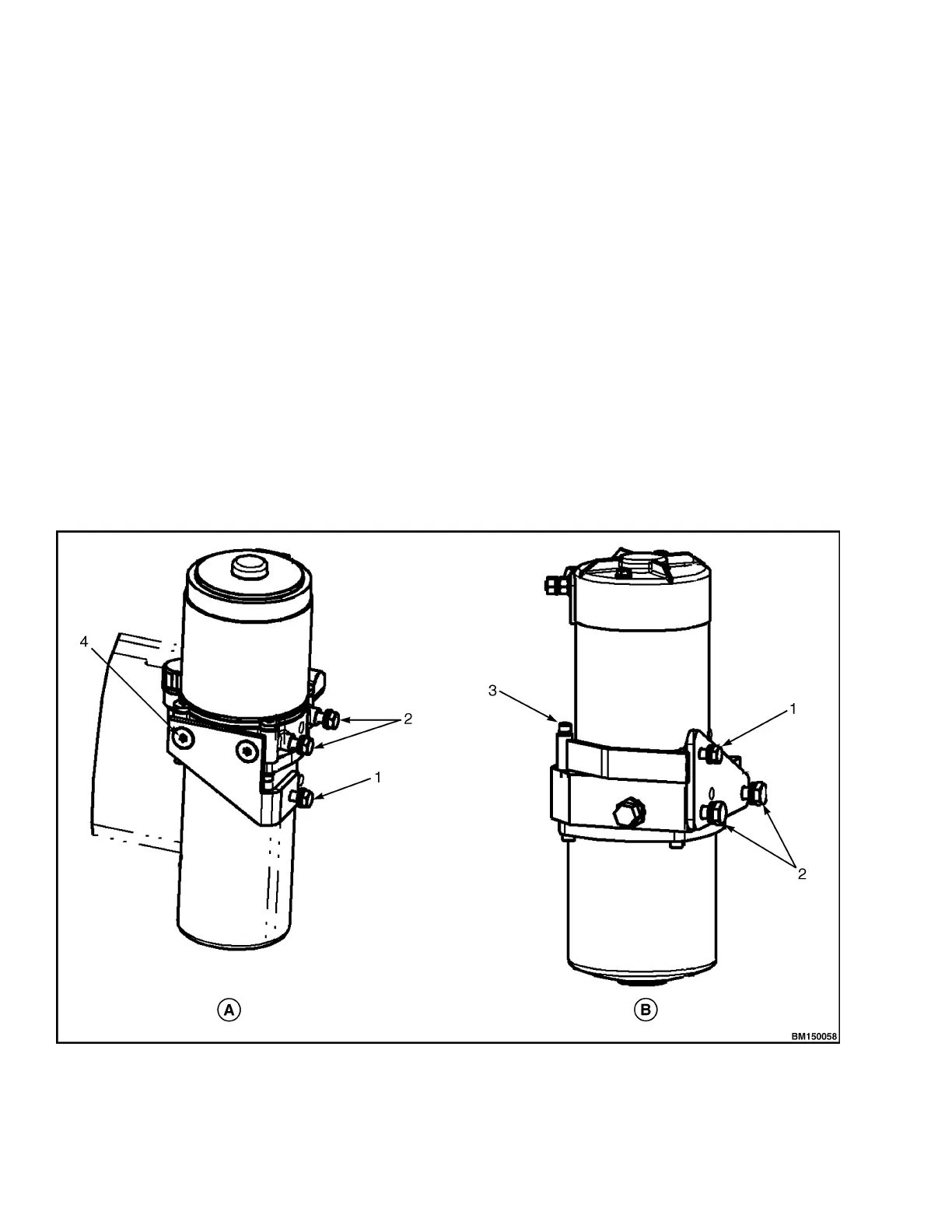

A. 6000 LBS CAPACITY B. 8000 LBS CAPACITY
Figure 12. Torque Values
16
