Maintenance Procedures Every 8 Hours or Daily 8000 SRM 707
CAUTION
When the drive wheels have been installed,
check all wheel nuts after 2 to 5 hours of op-
eration. Tighten the nuts in a cross pattern to
the correct torque value shown in the Mainte-
nance Schedule. When the nuts stay tight for
8 hours, the interval for checking the torque
can be extended to 250 hours.
Make sure drive wheel nuts are tight. Tighten wheel
nuts in a cross pattern to the correct torque value
shown in the Maintenance Schedule.
Forks
The identification of a fork describes how the fork
is connected to the carriage. These lift trucks have
hook-type forks. See Figure 5.

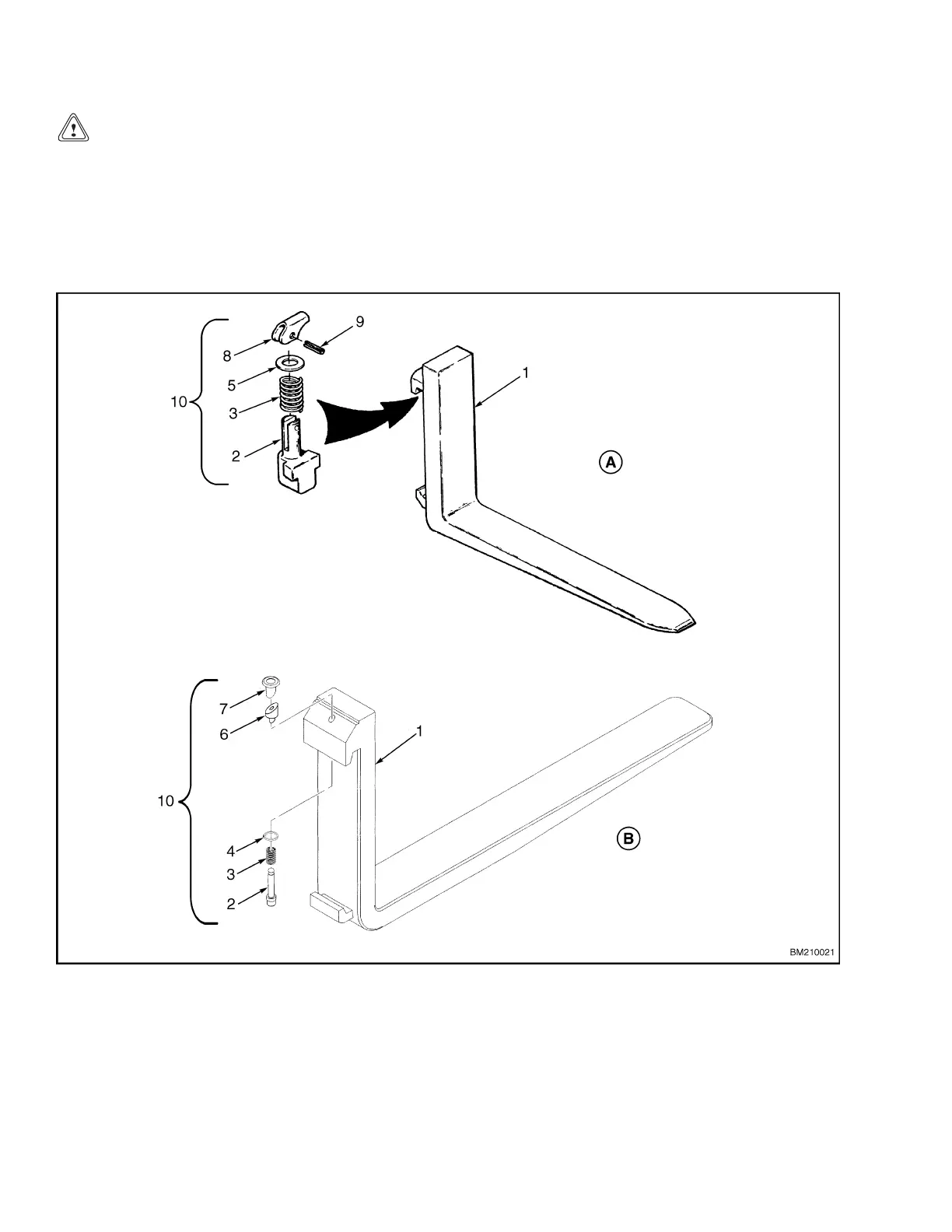

Figure 5. Fork Lock Pin Assembly
22
