Hyster D187 - Water Separator, Remove Water; Water Separator, Replace

8000 SRM 707 Maintenance Procedures Every 1000 Hours or 6 Months
1. CAPSCREW
2. WASHER
3. FUEL FILTER
HEAD
4. TOP SEAL
5. O-RING
6. FUEL FILTER
ELEMENT
7. BOTTOM SEAL
8. FUEL FILTER
BOTTOM

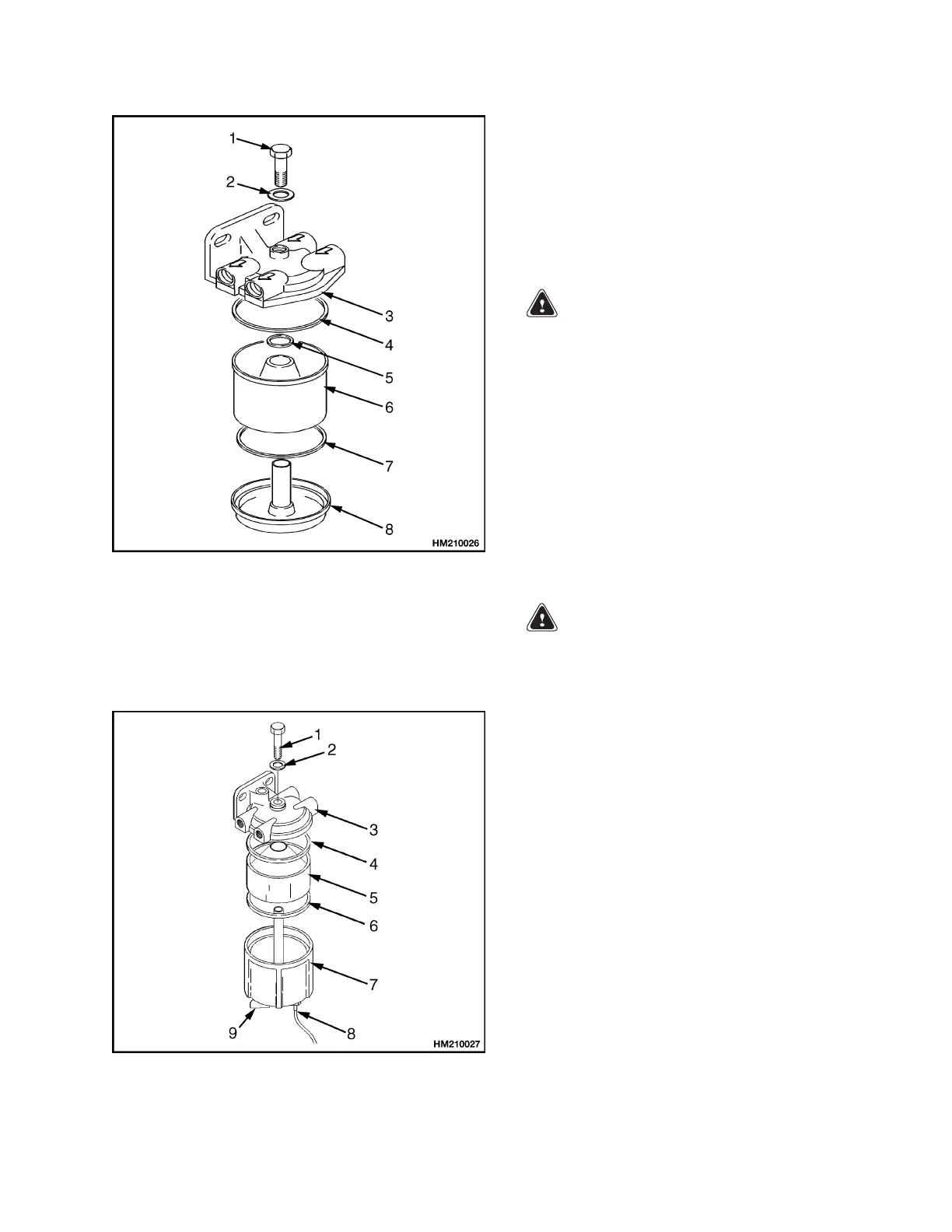

Figure 30. Diesel Fuel Filter
Figure 31. Water Separator
Legend for Figure 31
1. CAPSCREW
2. WASHER
3. FUEL FILTER
HEAD
4. TOP SEAL
5. FUEL FILTER
6. BOTTOM SEAL
7. FUEL FILTER
HOUSING
8. WATER SENSOR
LEAD
9. PLUG
Water Separator, Remove Water
WARNING
Thewaterseparatorisfullofdieselfueland
water and can be a fire hazard when being
drained. Place a container under the fuel fil-
ter to catch the water and fuel being drained
from the water separator.
1. Remove plug from bottom of water separator. See
Figure 31.
2. Drain water from water separator until there is
only fuel flowing from water separator.
3. Install plug into water separator.
Water Separator, Replace
WARNING
The water se
paratorisfullofdieselfueland
water and ca
n be a fire hazard when being
drained. Pl
ace a container under the fuel fil-
ter to catch
the water and fuel being drained
from the wa
ter separator.
1. While hold
ing bottom of water separator bowl,
remove cap
screw at top of water separator as-
sembly. Se
eFigure32.
2. Remove wat
er separator bowl from water sepa-
rator head
and remove filter from bowl. Discard
both seals
.
3. Empty fuel
and water from water separator bowl
into an ap
proved container for disposal.
4. Install ne
w seals and filter element into water
separato
rbowl.
5. Install w
ater separator bowl assembly onto wa-
ter separ
ator filter head.
