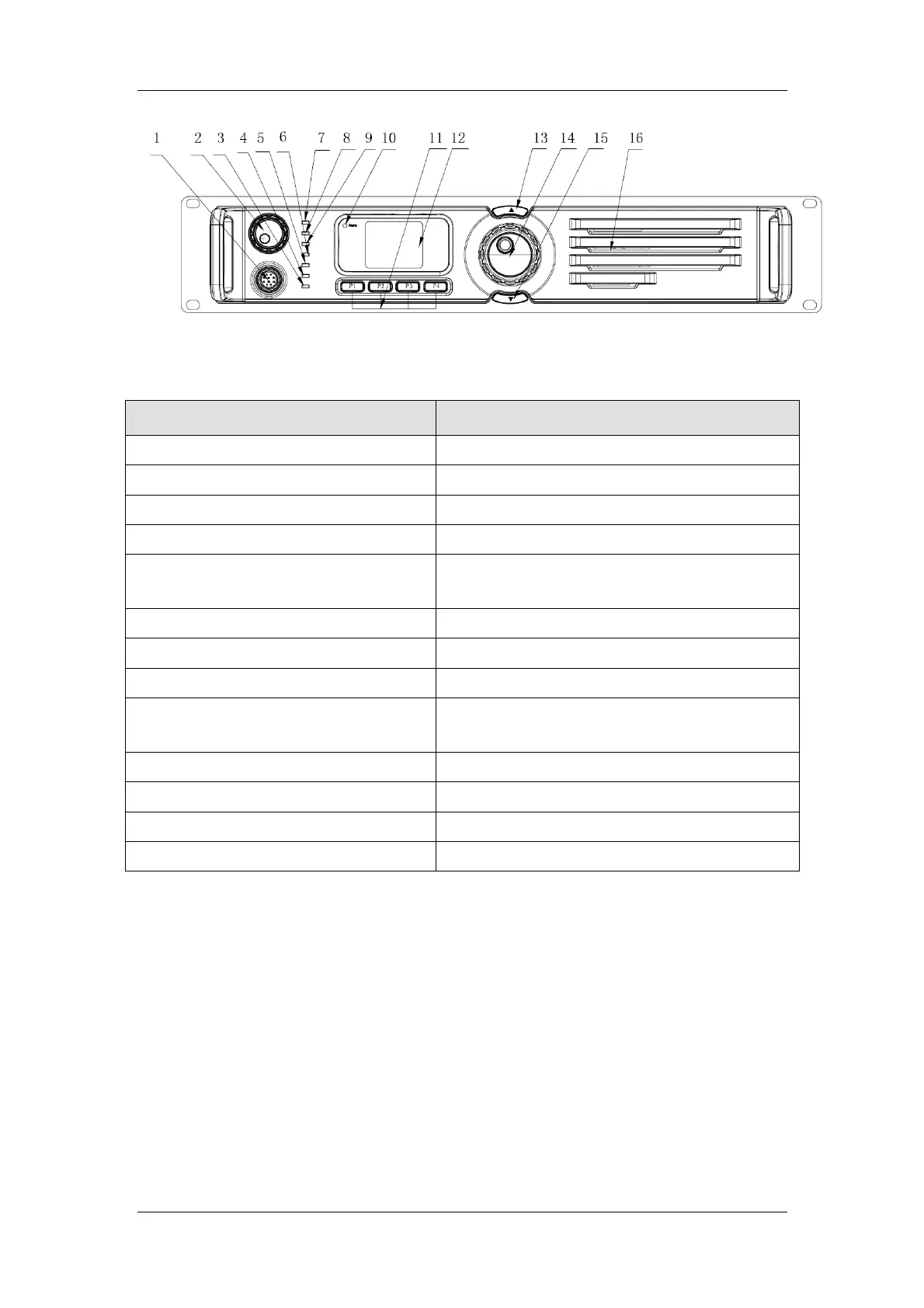

Feys of the repeater
LED Indicator
LED Indication Repeater Status
Power Indicator glows green. Normal power-on
Alarm Indicator glows red. The repeater works abnormally
Repeater Mode Indicator glows green The repeater is operating in Repeat mode
Repeater Mode Indicator is not lit The repeater is operating in Base mode
Slot 1 TX Indicator glows red
Repeater is transmitting on an analog channel
or on slot 1
Slot 1 TX Indicator flashes red Busy channel lockout * / transmission time-out *
Slot 2 TX Indicator glows red Repeater transmitting on slot 2 (digital)
Slot 2 TX Indicator flashes red Busy channel lockout * / transmission time-out *
Slot 1 RX Indicator glows green Repeater is receiving on an analog channel or
on slot 1
Slot 1 RX Indicator flashes green The feature “Monitor” is enabled *
Slot 2 RX Indicator glows green Repeater is receiving on slot 2
Analog Mode Indicator glows yellow The repeater is operating in Analog mode
Digital Mode Indicator glows blue The repeater is operating in Digital mode
Menu
The customers can set and operate the terminal via menu. The menu of Hytera
DMR repeater includes three 3 parts:
Subscriber Parameters
CH Information
Exit
To Next Page
