Hytera DMR System Planner
154
4.6.2 Double-layer Network Architecture
In this network, there is only one Super Master available.

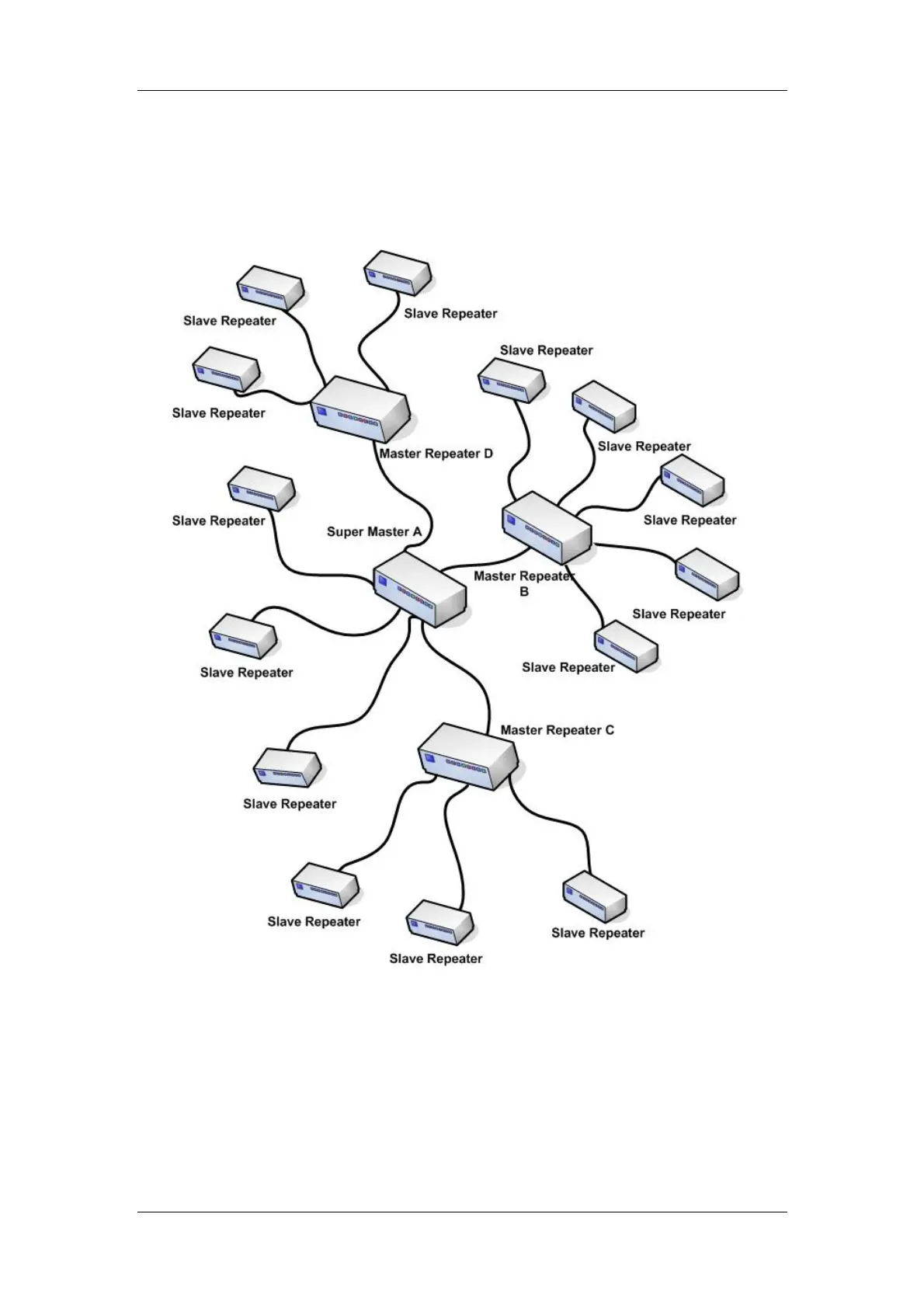

Figure 4.6.2-1: Super Master in the Double-layer Network
From the above diagram, you can see that the Master Repeater A works as a Super
Master and has three Slave Repeaters including Master Repeater B, Master
Repeater C and Master Repeater D.
All repeaters in the entire network can communicate with each other. Please note
that the total number of the Super Master, Master Repeater and Slave Repeater in a
single network cannot exceed 30. As a result, the entire network can accommodate
225 repeaters at most.
