IP Multi-site
Connect Device
Network
Router
Router
Router
Router
广域网
LAN
WAN
LAN
IP Multi-site
Connect Device
IP Multi-site
Connect Device
IP Multi-site
Connect Device
IP Multi-site
Connect Device
IP Multi-site
Connect Device

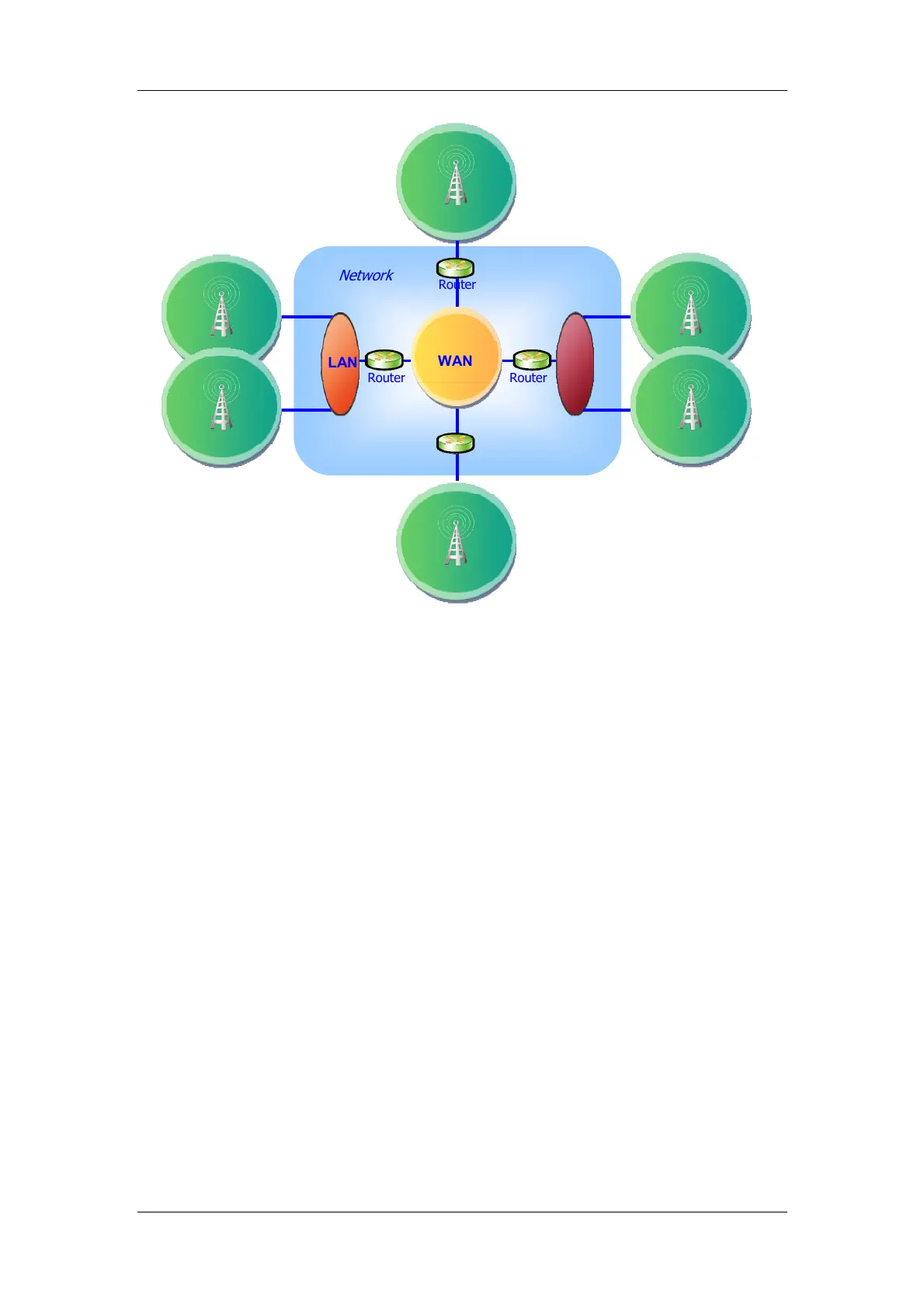

Figure 4.3.4-1: IP Multi-site Connect Network System Operating with WAN and LAN
Note: the number of IP devices has an impact on the bandwidth requirement of
WAN.
4.3.5 Broadband Wireless Access
IP Multi-site Connect provides a number of schemes for broadband wireless
access to meet your actual needs.
The typical schemes are illustrated as below.
* You can contact your dealer for more information on how to use broadband
wireless access devices (PTP, PMP SM, PMP AP, etc).
