4.6.1 Star Network Architecture
In this network, any Master Repeater can work as a Super Master, resulting in
multiple Super Masters available.

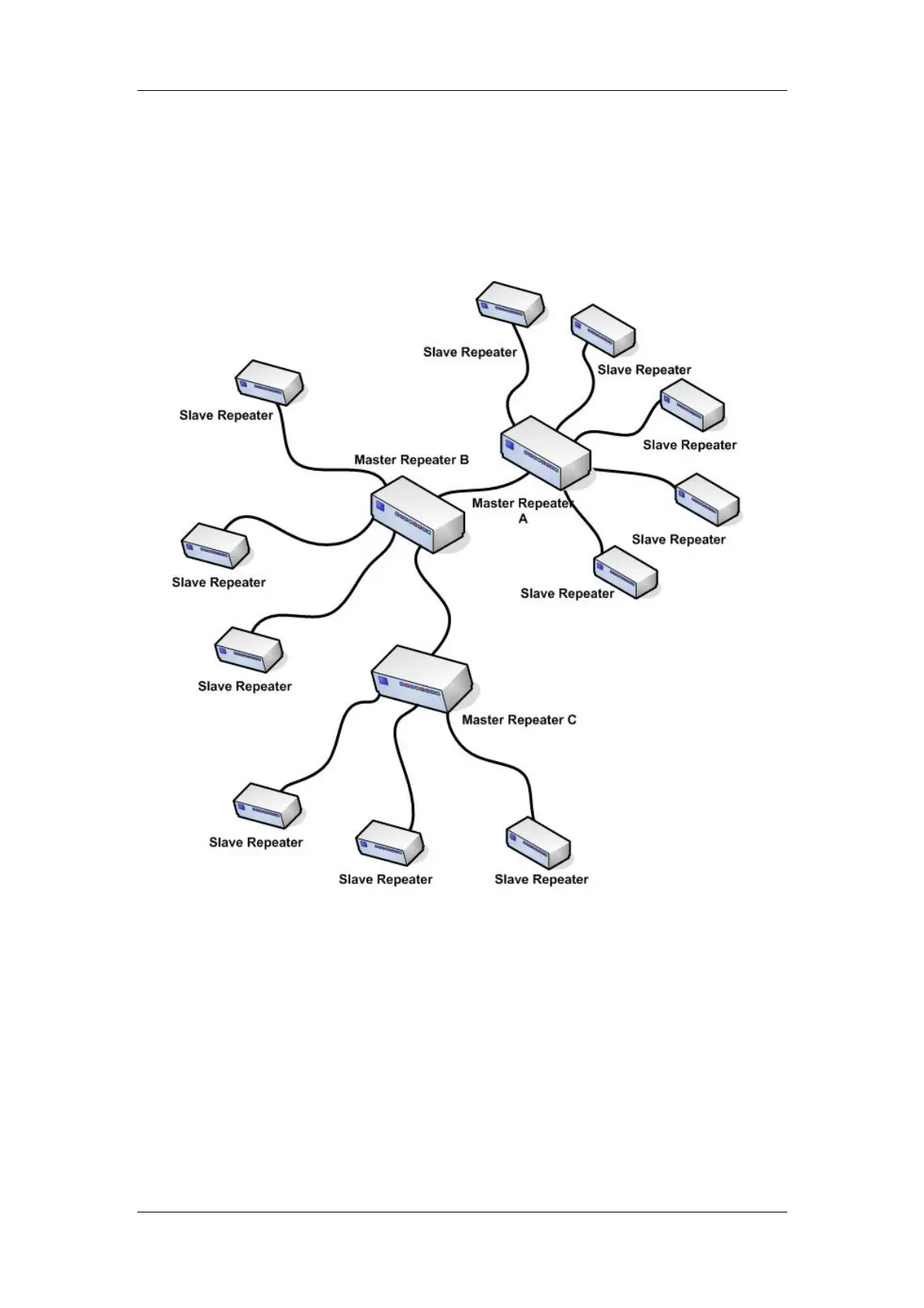

Figure 4.6.1-1: Super Master in the Star Network
From the above diagram, when the Master Repeater A enables the Super Master
Service and designates the Master Repeater B as its Super Master, it will act as a
Slave Repeater of the Master Repeater B on the one hand, and still work as a
Master Repeater in its own network on the other hand. In this case, repeaters within
both networks can communicate with each other. Meanwhile, the Master Repeater B
can activate the Super Master Service and designate the Master Repeater C as its
Super Master. Thus, repeaters within both networks can communicate with each
other.
Finally, all repeaters in the entire network can be connected for extending
communication coverage.
