Hytera DMR System Planner
149
4.4.2 Multi-site Access Management
The Multi-site Access Management feature is used to repeat the satisfied data to the
designated radio over IP Multi-site Connect. See Figure as below:

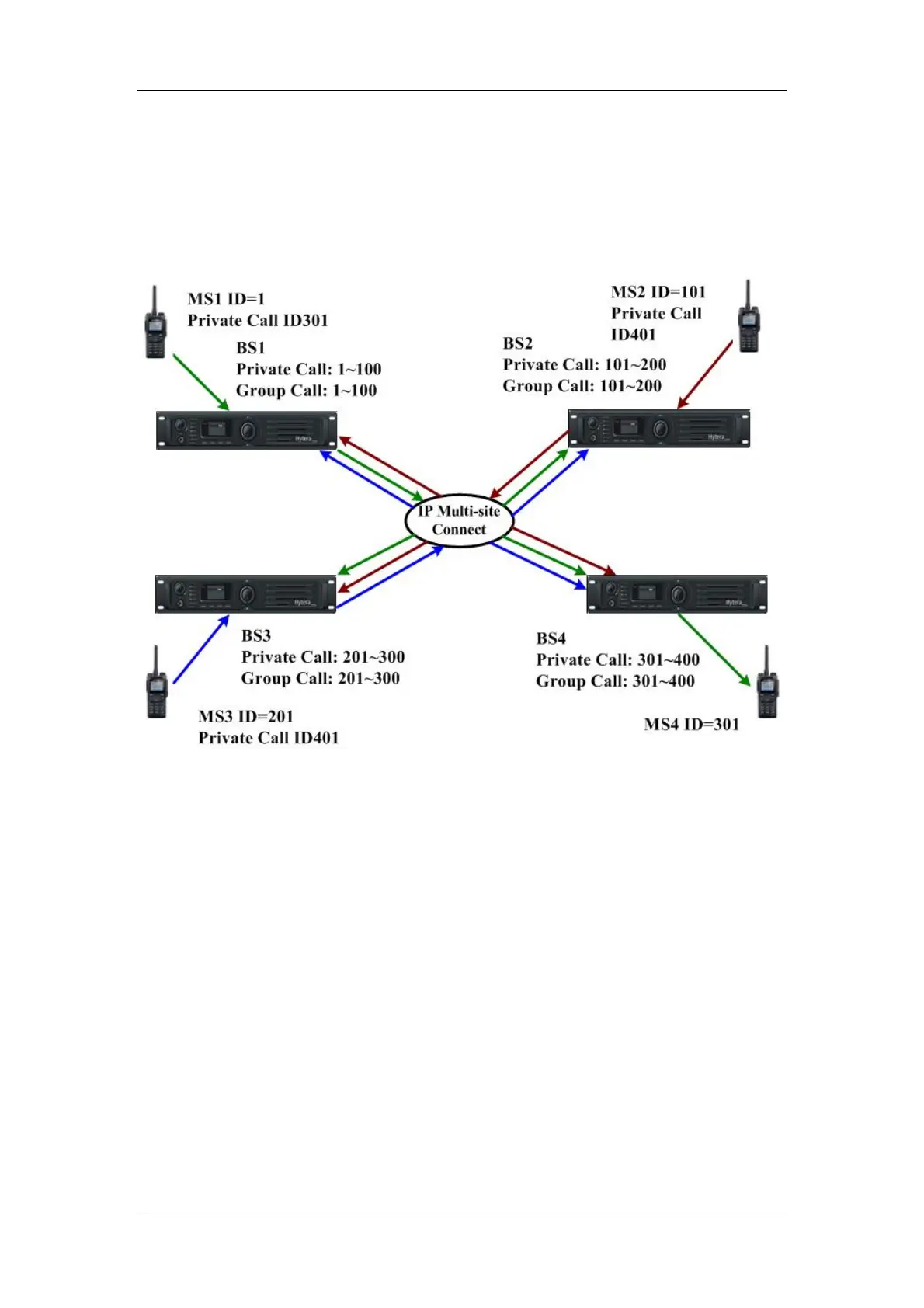

Figure 4.4.2-1: Multi-site Access Management Example
From above diagram, when both MS2 and MS3 make a private call (ID401)
respectively, this call request will be transmitted to all repeaters in the system over
IP Multi-site Connect. However, no repeater will grant access to this request,
because this private call ID is beyond the private call ID range of all repeaters. When
MS1makes a private call (ID301) to MS4, the repeater (BS4) will repeat it. That is
because this private call ID is within the private call ID range of this repeater.
Consequently, MS1 is entitled to communicate with MS4.
