Hytera DMR System Planner
130
Analog-Analog Repeaters

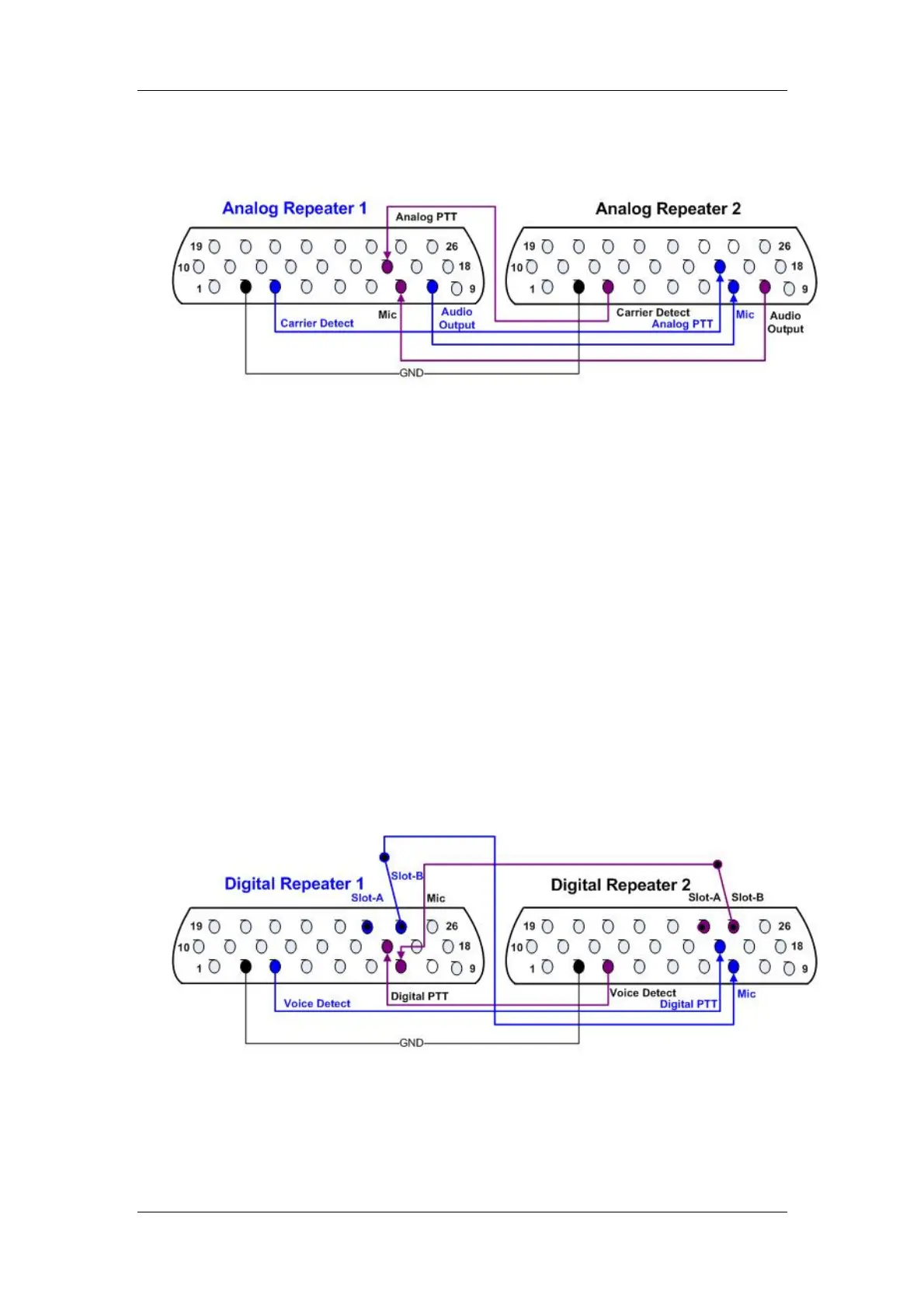

Figure 4.2.1.1-2: Connecting Analog-Analog Repeaters
1) Ground wire
To connect PIN2 of analog repeater 1 and that of analog repeater 2.
2) Activation of repeater transmission
To connect PIN3 of analog repeater 1 and PIN16 of analog repeater 2.
To connect PIN16 of analog repeater 1 and PIN3 of analog repeater 2.
3) Analog audio output
To connect PIN8 of analog repeater 1 and PIN7 of analog repeater 2.
To connect PIN7 of analog repeater 1 and PIN8 of analog repeater 2.
Digital-Digital Repeaters
Figure 4.2.1.1-3 : Connecting Digital-Digital Repeaters
1) Ground wire
To connect PIN2 of digital repeater 1 and that of digital repeater 2.
2) Activation of repeater transmission
