Hytorc Lithium BTM-3000 User Manual

Reaction Assembly and Drive
• If using the HYTORC Washer system, please follow the installation and assembly instructions in
the “Overview HYTORC Washer” section.
• Please clean the splined surface of the LITHIUM before mounting the reaction arm.
• Slide the reaction arm on the appropriate gear so that the extension of the reaction arm is
facing outward.
WARNING!
Always attach the reaction arm so that the foot points away from the body of
the gun. Incorrect installation of the reaction arm can cause the reaction arm to
come into contact with your hand or other body parts causing injury.
11
BREAKTHROUGH PRODUCTS FOR INDUSTRIAL BOLTING

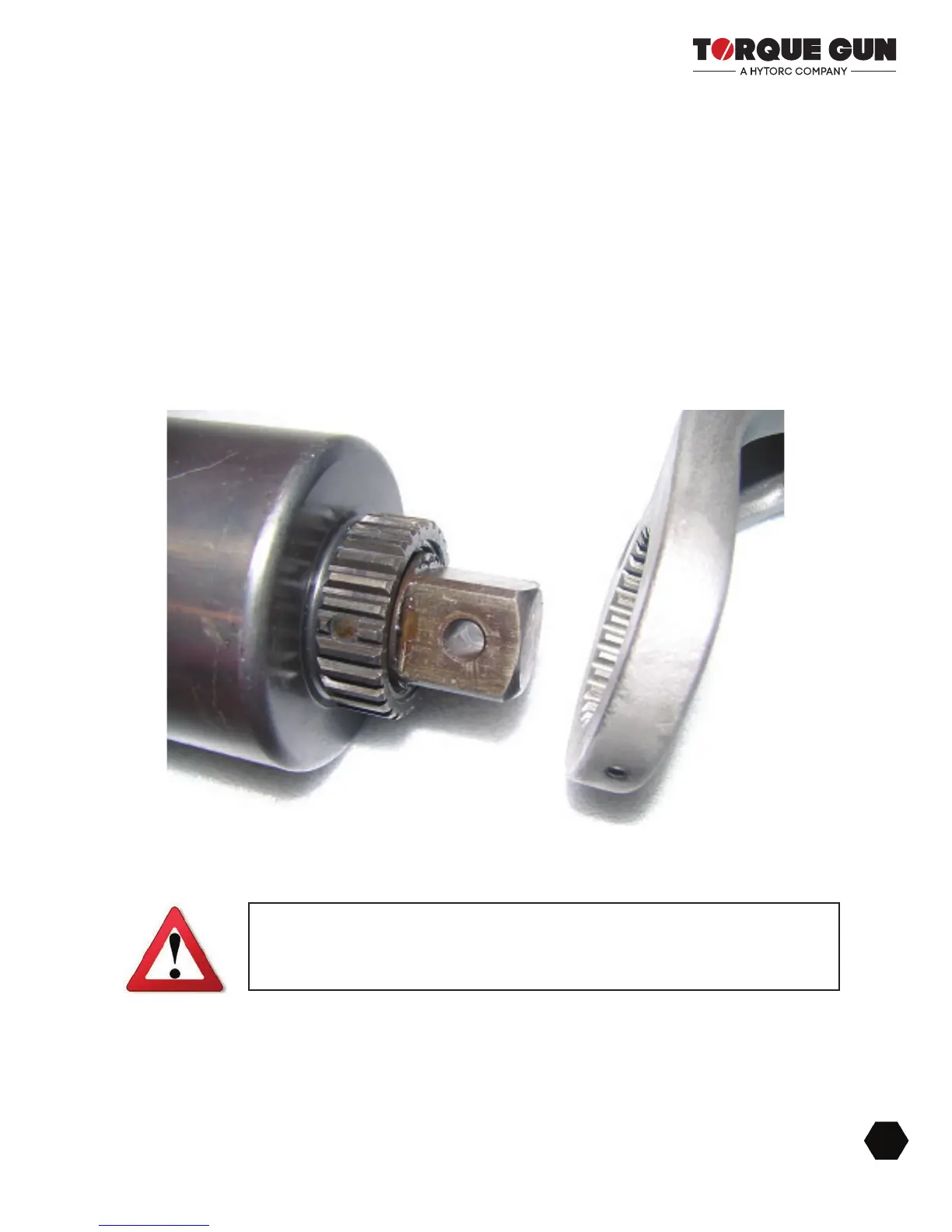

Figure 4 - Reaction Arm Assembly

Hytorc Lithium BTM-3000 Specifications

General

Brand	Hytorc
Model	Lithium BTM-3000
Category	Power Tool
Language	English
