SETUP
Two Speed Operation
Each Lithium Torque Gun is equipped with a two speed gearbox. The gearbox has two modes:
• RUNDOWN MODE: Used to run nuts down to seated position ready to torque.
• TORQUE MODE: Used for nal torqueing in TORQUE ONLY and TORQUE AND ANGLE
sub-modes.
To switch between RUNDOWN and TORQUE settings, ip the gear select switch located underneath the
front aluminium bearing housing. In the rare event the gear selector doesn’t engage, a very brief pulse
from the trigger is all that is needed to allow gear engagement.
Battery Pack Installation and Removal
To install the battery pack into the tool handle, align the base of the battery with the rails in the tool han-
dle and slide the battery pack rmly into the handle until you hear the lock snap in to place.
To remove the battery pack from the tool, press the release button (as shown above) and rmly slide the
battery pack out of the tool handle.

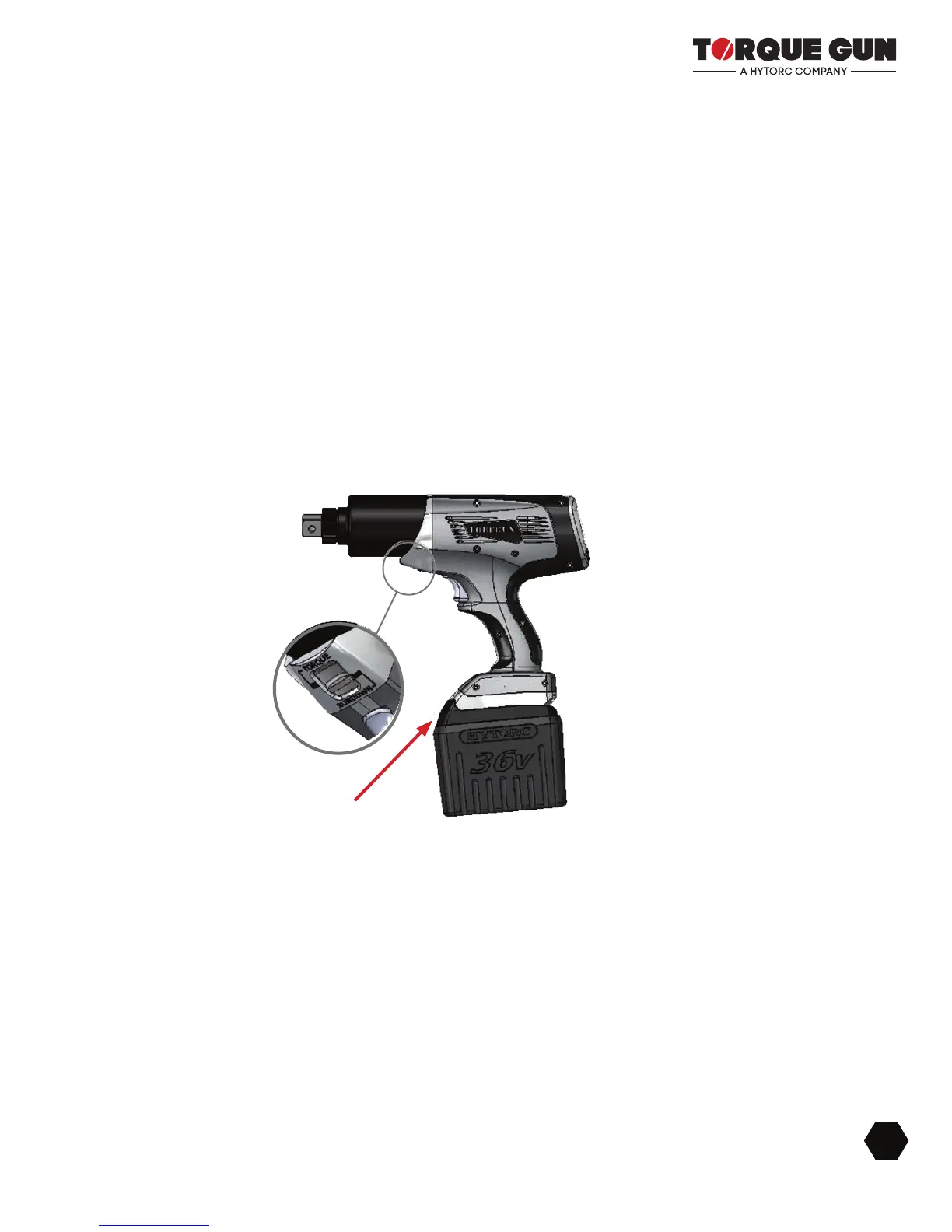

Figure 11 - Gear Switch Detail
BATTERY PACK
RELEASE BUTTON
19
BREAKTHROUGH PRODUCTS FOR INDUSTRIAL BOLTING
