Installing HYTORC Washer Driver
• The set screw for fastening the HYTORC Washer Driver is aligned with the milled recess in the ring
gear of the tool. See Figure 18 and Figure 19.
• Tighten the set screw and then loosen it again by ¼ turn.
31
BREAKTHROUGH PRODUCTS FOR INDUSTRIAL BOLTING

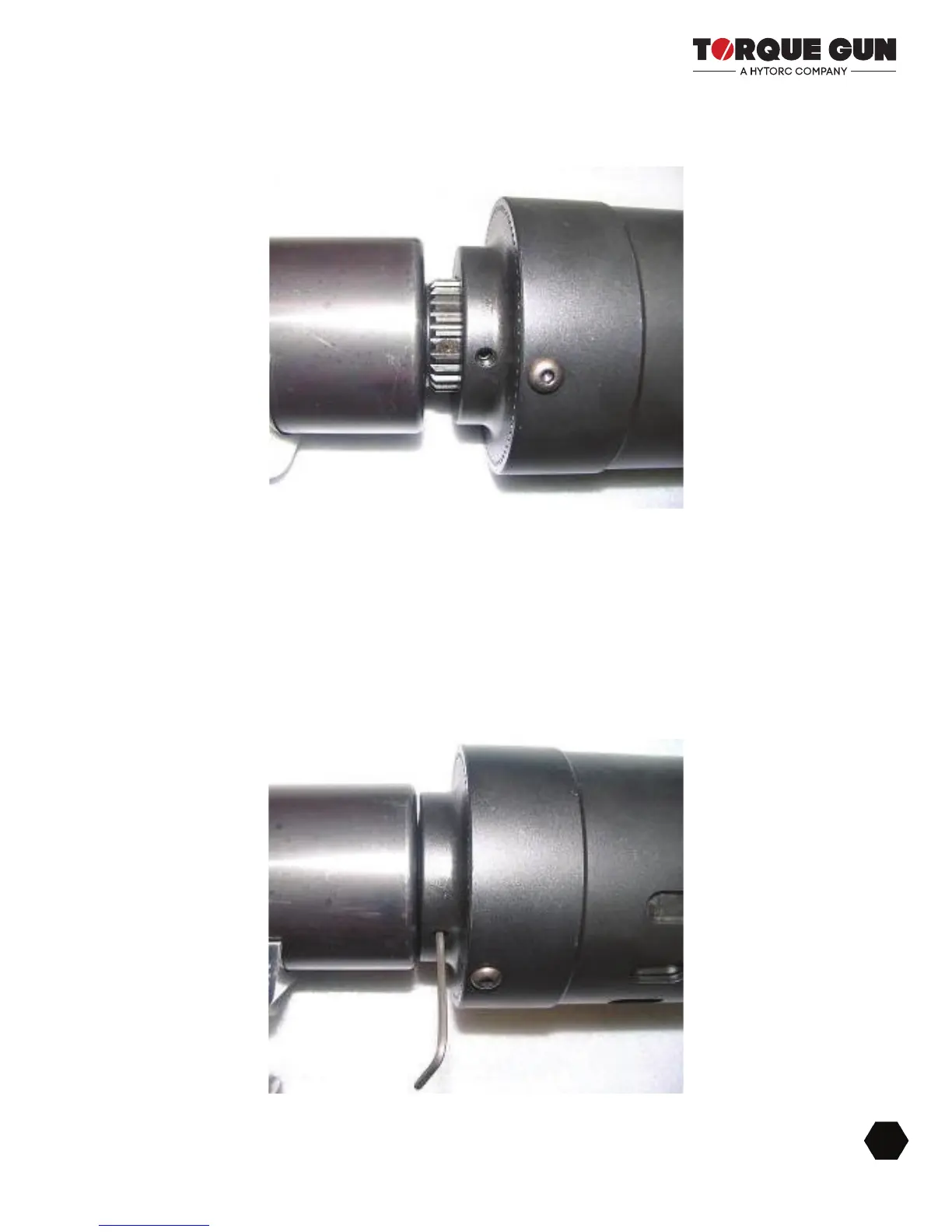

Figure 18 - Tighten Set Screw
Figure 17 - Installing Set Screw on HYTORC Washer Driver
