i3-TECHNOLOGIES L3503W - E) IR PEN (*Optional Accessory)

Introduction

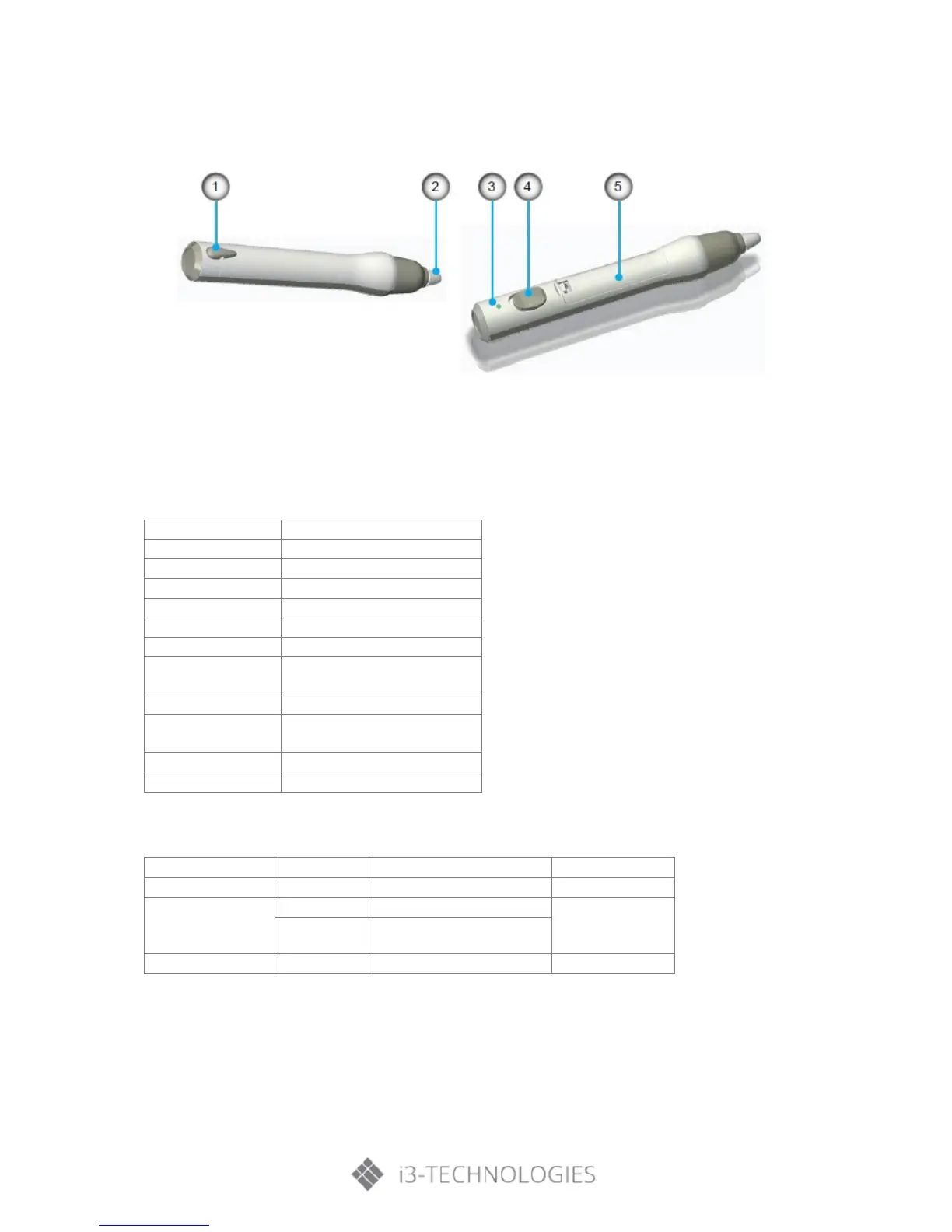

E) IR PEN (*Optional accessory)
1. Strap hole
2. Pen tip
3. LED indicator
4. Power Switch button
5. Battery cover
Function
Description
Power management
On/Off switch
Power indicator
Dual color LED x1
Battery
AAA Battery (alkaline) x 1
Usage time
18 hours (continuous use)
Light source
850nm IR LED
Driving current
50mA/1.5V (Max)
Color
Pen body in white
Decoration strip in grey
Dimension (L x Φ)
150.5mm (L) x 23mm (Diameter)
Pen tip
User Replaceable (two spare
tips as default)
Body material
Plastic
Weight
39g (with battery)
LED Indicator
State
Power Switch
LED State
Remark
Normal On
Off  On
Green led on for 2 seconds
Low Battery Power
Off  On
Red led on for 2 seconds
When battery is
low
On
Red led blinking
(when pen tip is pressed)
Normal Off
Off
Off
For detailed instructions about IR Pen installation and usage: please refer to “IR Pen & LCT User
Manual/Software” via the “Help” option of the utility user interface.
