User Controls
3D Format
Use this feature to select the 3D format. Options are: “Frame Packing”, “Side-by-Side (Half)”, “Top and
Bottom”, “Frame Sequential”, and “Field Sequential”.
1080p@24
Use this feature to select 96 or 144Hz refresh rate as using 3D glasses in the1080p @ 24 frame packing.
Note:
• “Frame Sequential” is supported the DLP Link 3D input signals from VGA / HDMI connector.
• “Frame Sequential” / “Field Sequential” are sup- ported the HQFS 3D input signals from
Composite/ S-Video connector.
• “Frame Packing” / “Side-by- Side(Half)” / “Top and Bottom” are supported from HDMI 1.4a 3D
input signals.

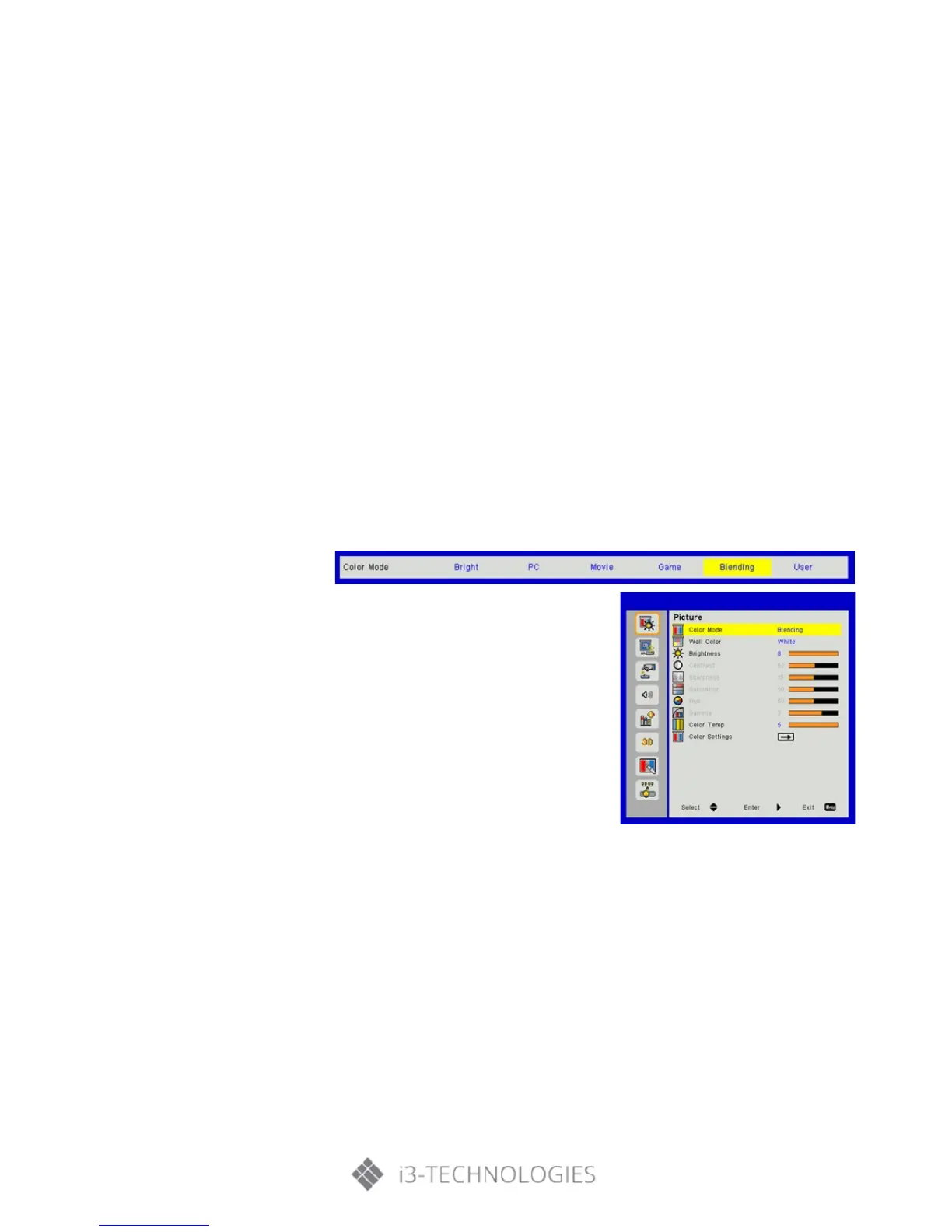

I) Blending Mode
Brightness
For user to manually adjust the brightness of projectors used in blending
mode.
Color Temp
For user to manually map the color temperature of projectors used in blending mode.
