Introduction

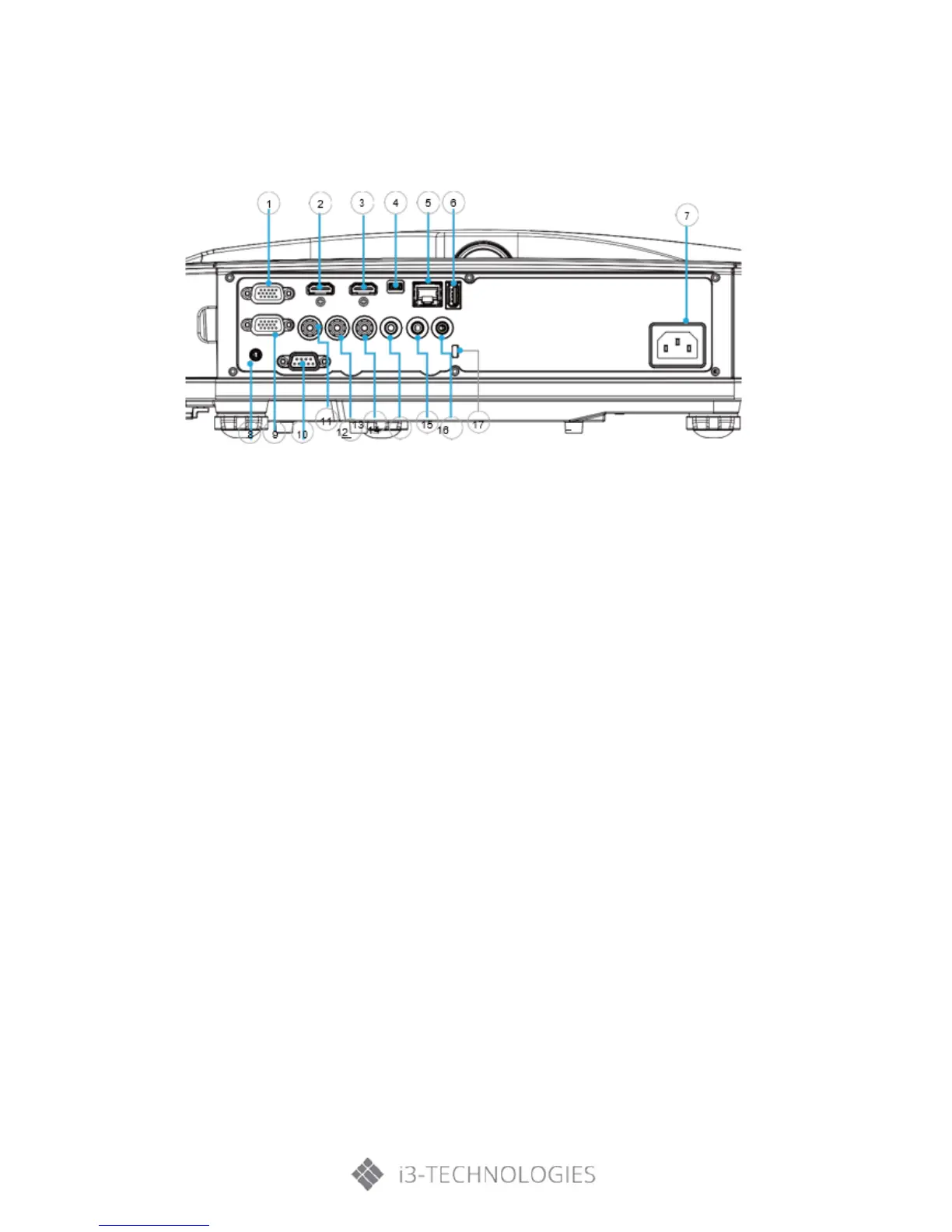

C) Input/ Output Connections
1. VGA1-In/yPbPR Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
2. HDMI2 Input Connector
3. HDMI1 Input Connector
4. USB Connector (Connect to PC for Remote Mouse function)
5. RJ45 Connector (Optional)
6. USB Type A Connector (Optional)
7. Power Socket
8. Interactive connector (3.5mm mini jack, Optional)
9. VGA-Out/VGA2-in connector
10. RS-232 Connector (9-pin DIN Type)
11. Composite Video Input Connector
12. Composite Audio input (right) connector
13. Composite Audio input (left) connector
14. Audio Output Connector (3.5mm mini jack)
15. Audio Input Connector (3.5mm mini jack)
16. Audio Input connector (microphone)
17. Kensington
TM
Lock Port
Note:
• The interface is subject to model’s specifications.
• Monitor loop through only support in VGA1-In/YPbPr
To Next Page
